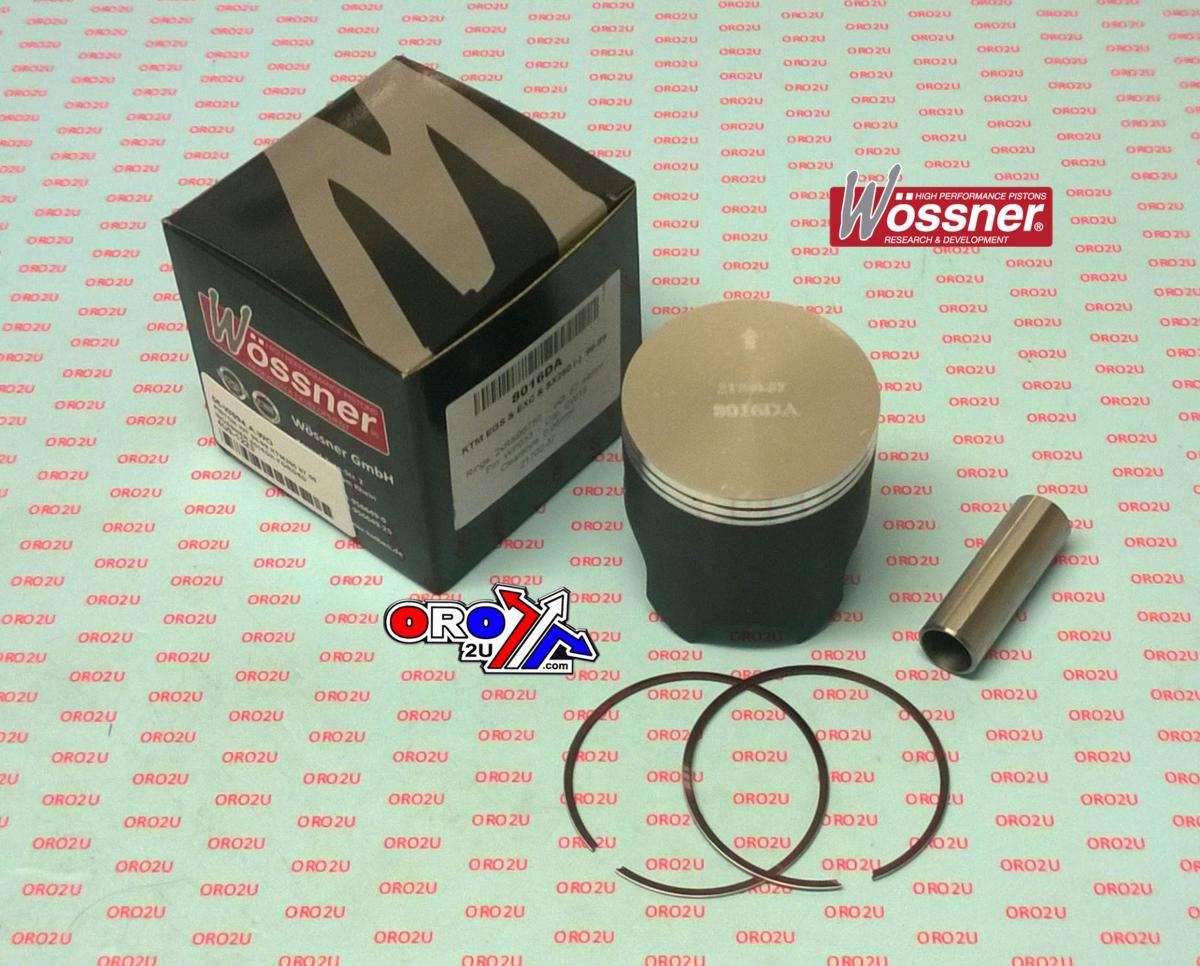

WOSSNER 67.5mm FORGED PISTON KIT A. KTM 250 2t 1996-1999

Piston kit 67.50mm Bore 67.44 Wossner 8016DA (STD)

KTM
MXC250 1996 - 1999,
EXC250 1996 - 1999,
SX250 1996 - 1999,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W694.A.WO
Wossner Piston KTM MXC/EXC/SX250 67.5 mm Bore (PN# 8016DA)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6750 X 2
Rod P/N P2024

Display (cm3) 249
Hub stroke (mm) 69.50
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 26.70
Theorectical weight (G)

Select your car to see if this product fits:
- 1996 KTM 125 EGS - 1996 KTM EXC 250 - 1996 KTM SX 250 - 1997 KTM 125 EGS

- 1997 KTM EXC 250 - 1997 KTM SX 250 - 1998 KTM 125 EGS - 1998 KTM EXC 250 - 1998 KTM SX 250 - 1999 KTM 125 EGS - 1999 KTM EXC 250 - 1999 KTM SX 250

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
