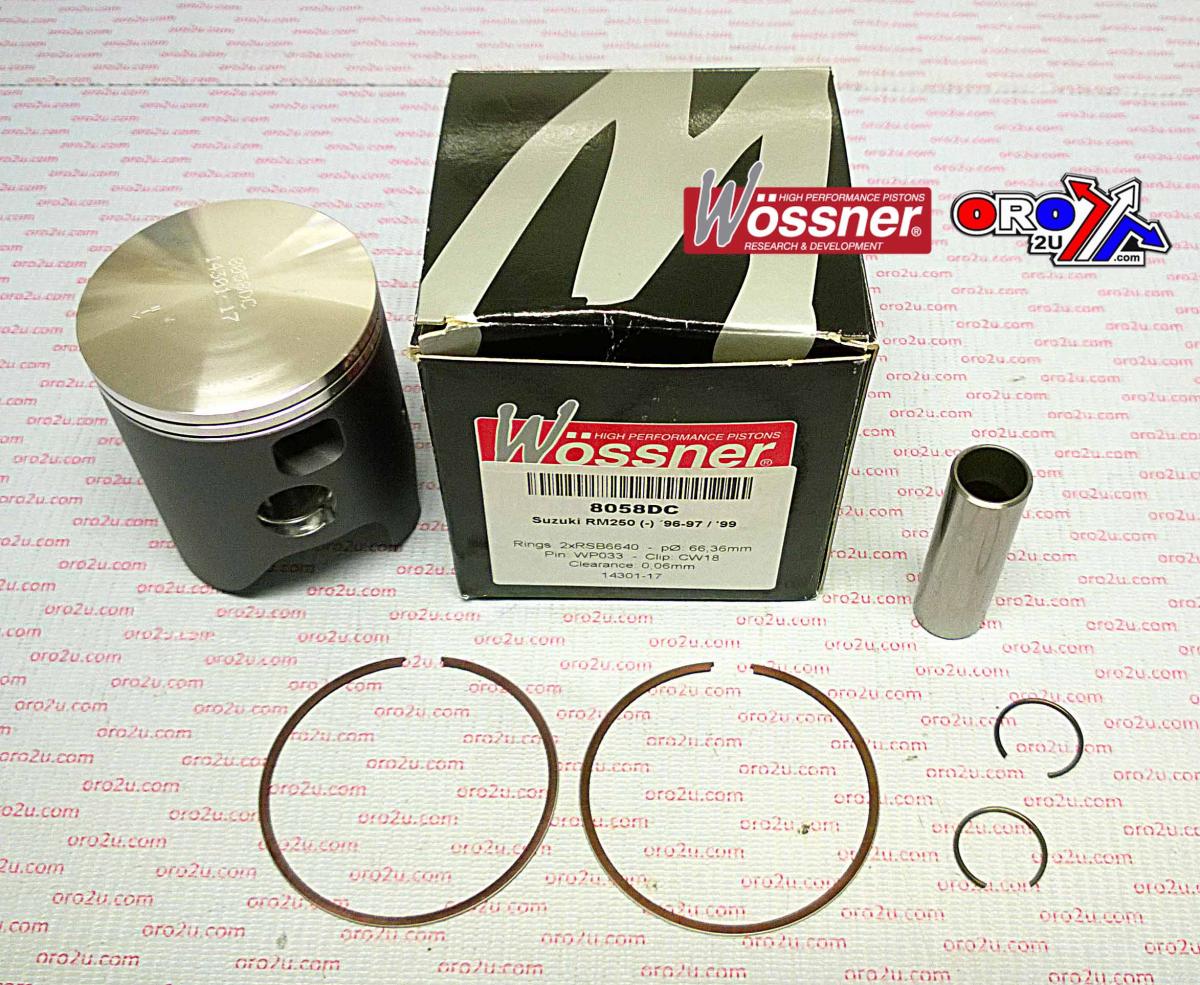

WOSSNER 66.4mm FORGED PISTON KIT SUZUKI RM250 96-97/99

Piston kit 68mm Bore 67.94 Wossner 8023DA (STD)

SUZUKI
RM250 1996 - 1997,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W681.A.WO
Wossner Piston Suzuki RM250 66.4 mm Bore (PN# 8058DA)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6640 X 2
Rod P/N P2026

Display (cm3) 249
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 38.00
Theorectical weight (G)

Cross reference numbers ONLY.
743M06640

Select your car to see if this product fits:
- 1996 Suzuki RM 250 - 1997 Suzuki RM 250 - 1999 Suzuki RM 250

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
