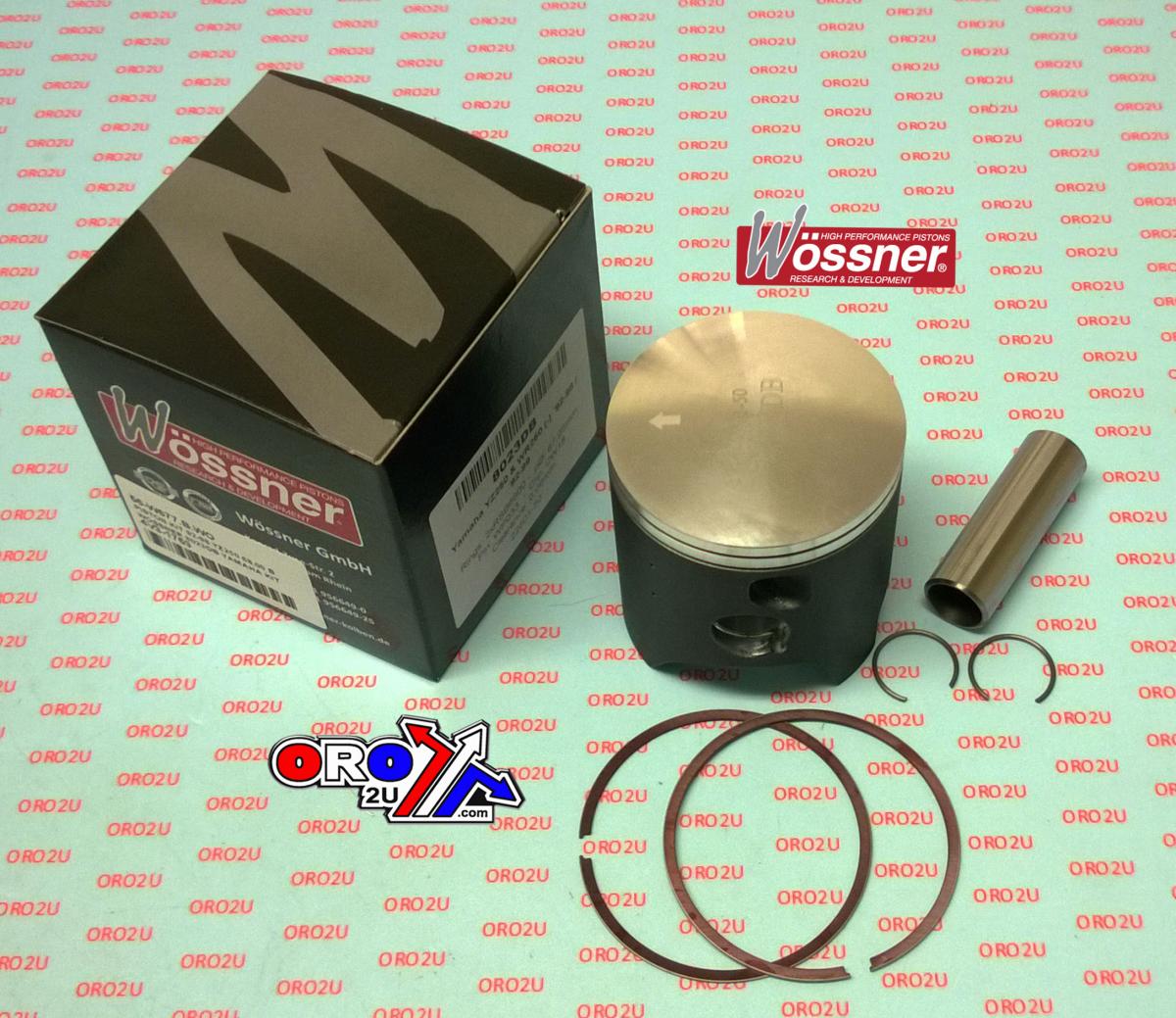

PISTON KIT 92-98 YZ250 68.00 B WOSSNER 8023DB YAMAHA KIT

Piston kit 68.01mm Bore 67.95 Wossner 8023DB (+0.01)

YAMAHA
YZ250 1992 - 1998,
WR250 1992 - 1999,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W677.B.WO
Wossner Piston Yamaha YZ250 68.01 mm Bore (PN# 8023DB)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6800 x 2
Rod P/N P2029

Display (cm3) 246
Hub stroke (mm) 68.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 36.00
Theorectical weight (G)

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
