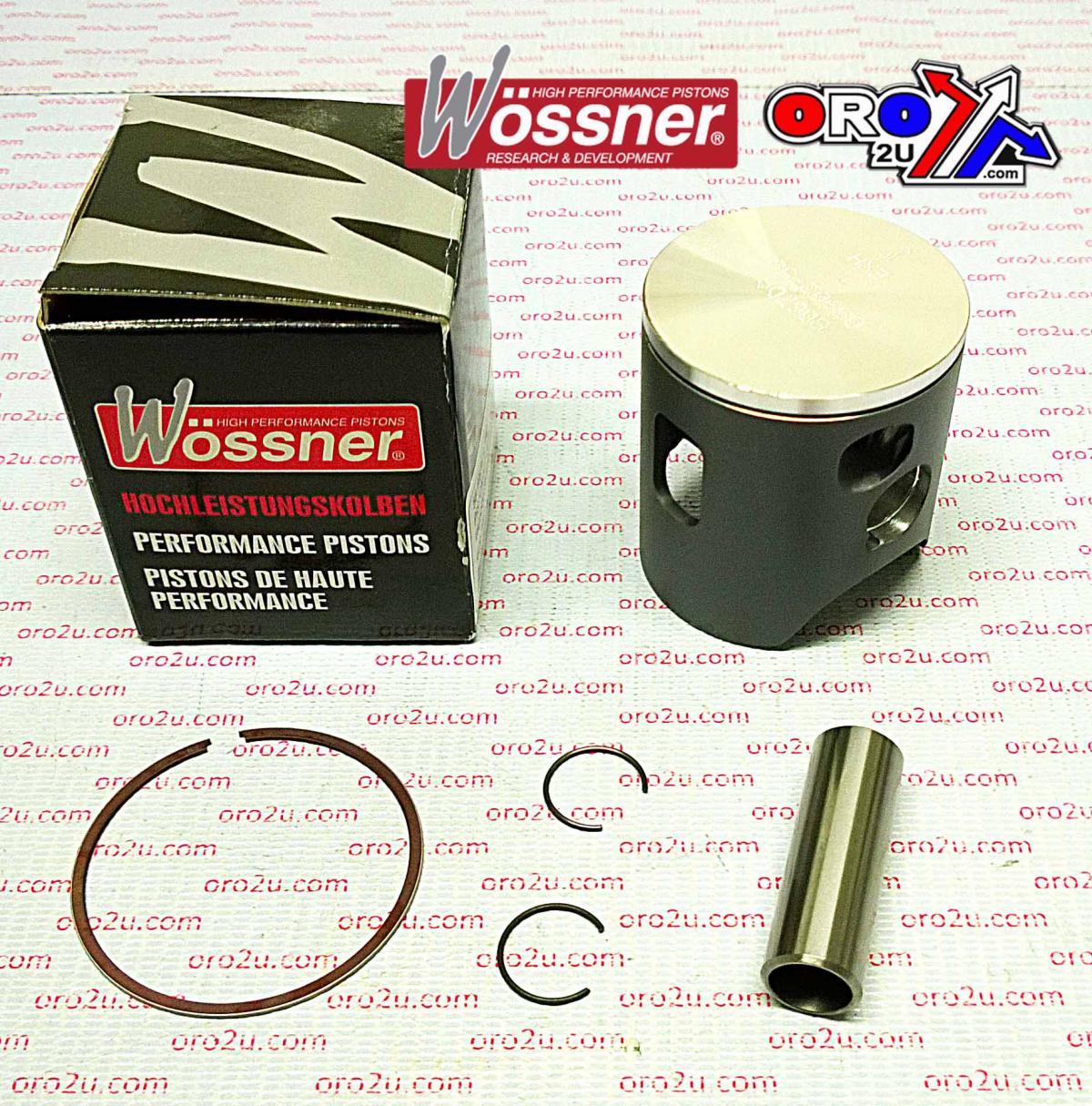

WOSSNER 57mm PISTON KIT HONDA CR125 92-03, GAS GAS MC125 02-10, EC125 02-11

Piston kit 57mm Bore 56.95 Wossner 8067D300 (+3.00)

HONDA
CR125 2000 - 2003, �

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W676.P9.WO
Wossner Piston Honda CR125 O/S +3.00mm 57.00mm Bore 8067D300
Lock P/N CW15
Pin P/N WP032Ring Set P/N RSB5700
Rod P/N P2009

Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 28.00
Theorectical weight (G)

2000 Honda CR 125 2001 Honda CR 125 2002 Honda CR 125 2003 Honda CR 125

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
