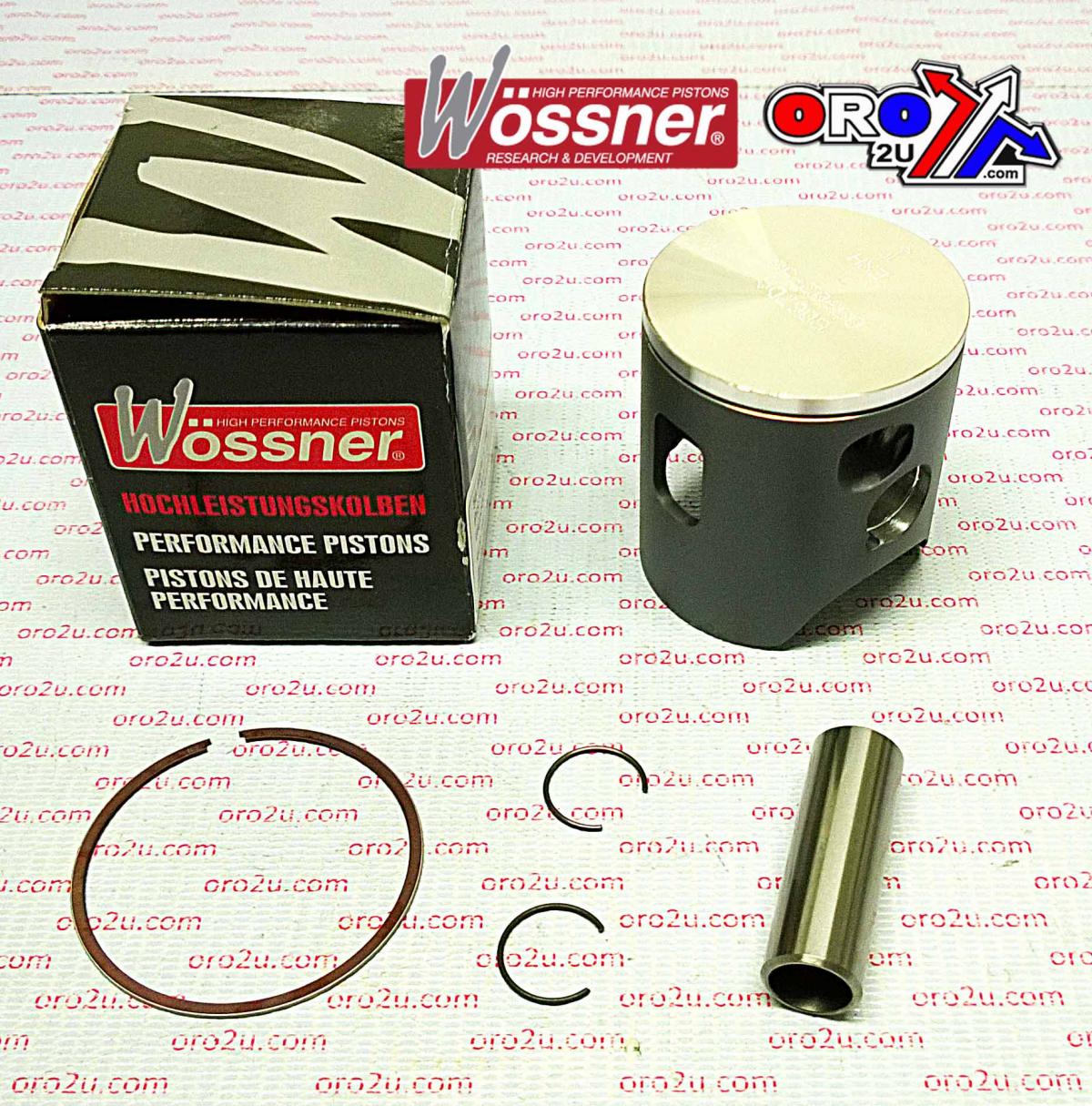

PISTON KIT 00-03 CR125 54.50 WOSSNER 8067D050 HONDA MX

The 54.50mm Bore Wossner Piston Kit (Part No. 8067D050) is a +0.50 oversized forged piston tailored for Honda CR125 models from 2000 to 2003. Engineered and manufactured in Germany, this piston is designed with an elliptical profile to ensure uniform pressure distribution and improved performance under thermal stress. It delivers reliable heat transfer and structural integrity in high-performance two-stroke engines.

Features

• Forged piston construction for maximum strength and durability

• Designed for efficient combustion chamber heat transfer

• Elliptical geometry supports even bearing surface under heat expansion

• Minimises localised pressure and reduces risk of piston collapse

• Manufactured in Germany

Specifications

• Bore Size: 54.50 mm

• Actual Bore: 54.45 mm

• Clearance: 0.05 mm

• Compression Height: 28.00 mm

• Stroke: 54.50 mm

• Displacement: 125 cm³

• Compression Ratio: 2-stroke (Wossner and OEM)

Vehicle Fitments

• 2000 Honda CR 125

• 2001 Honda CR 125

• 2002 Honda CR 125

• 2003 Honda CR 125

Included Components

• Lock: CW15

• Pin: WP032

• Ring Set: RSB5450

• Rod: P2009

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
