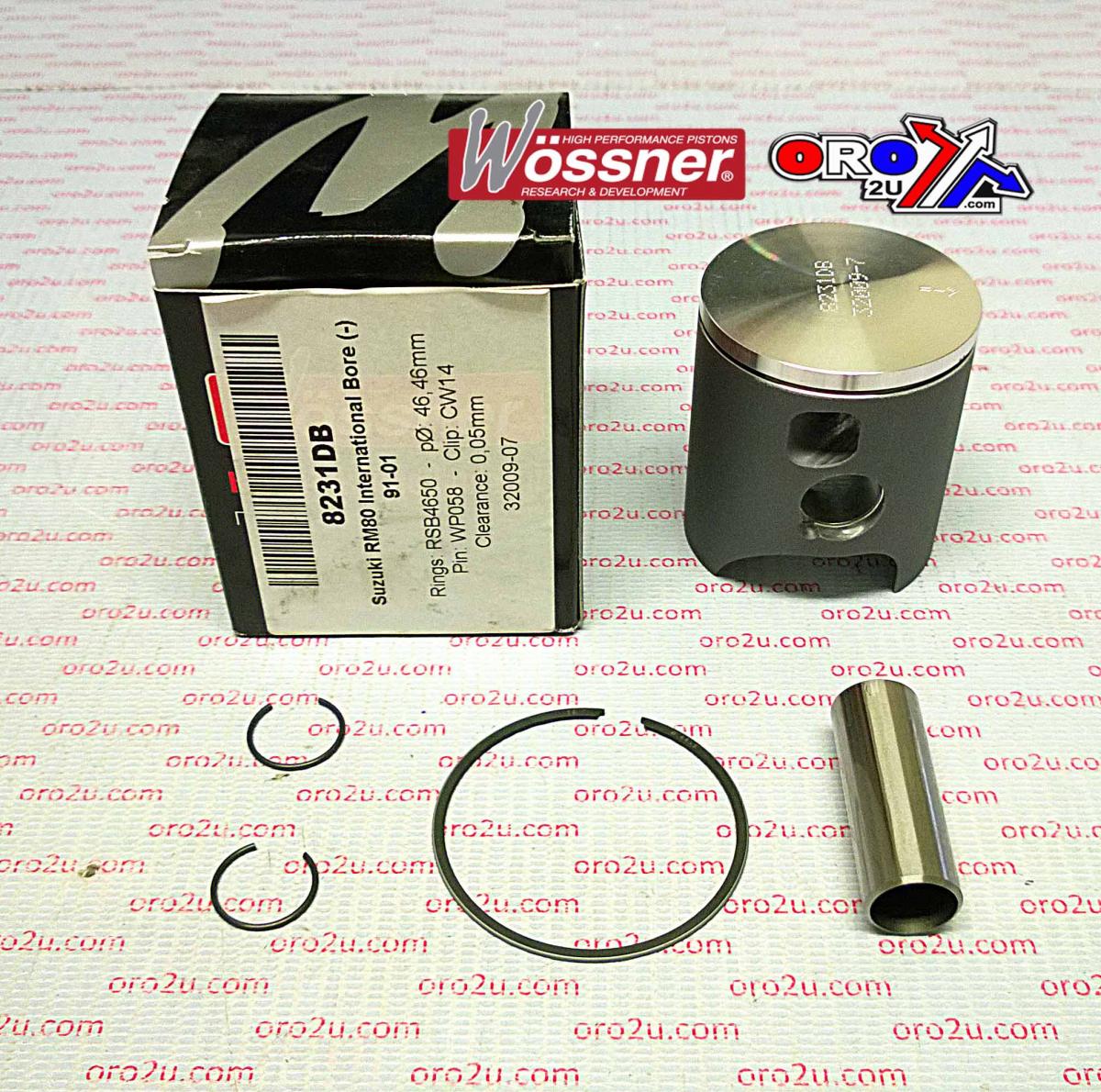

WOSSNER 46.5mm PISTON KIT B, SUZUKI RM80 1991-2001

Wossner forged piston kit with a 46.51mm bore (46.46mm actual) is engineered for Suzuki RM80 models from 1991 to 2001, including those with international bore dimensions. Made in Germany, this piston is designed to improve thermal performance and mechanical reliability, using an elliptical profile to distribute thrust forces evenly and avoid localised pressure that can lead to piston failure.

Features

• Forged construction enhances mechanical strength and longevity

• Elliptical design ensures uniform bearing surface under expansion

• Facilitates efficient combustion heat transfer to cylinder walls

• Compatible with international bore specifications

• Manufactured in Germany to strict tolerances

Specifications

• Bore Size: 46.51mm (Actual: 46.46mm)

• Compression Height: 27.00mm

• Clearance: 0.05mm

• Stroke: 46.80mm

• Displacement: 82 cm³

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

• Piston Kit: 8231DB

• Lock: CW14

• Pin: WP058

• Ring Set: RSB4650

Vehicle Fitments

• Suzuki RM80 (1991–2001)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
