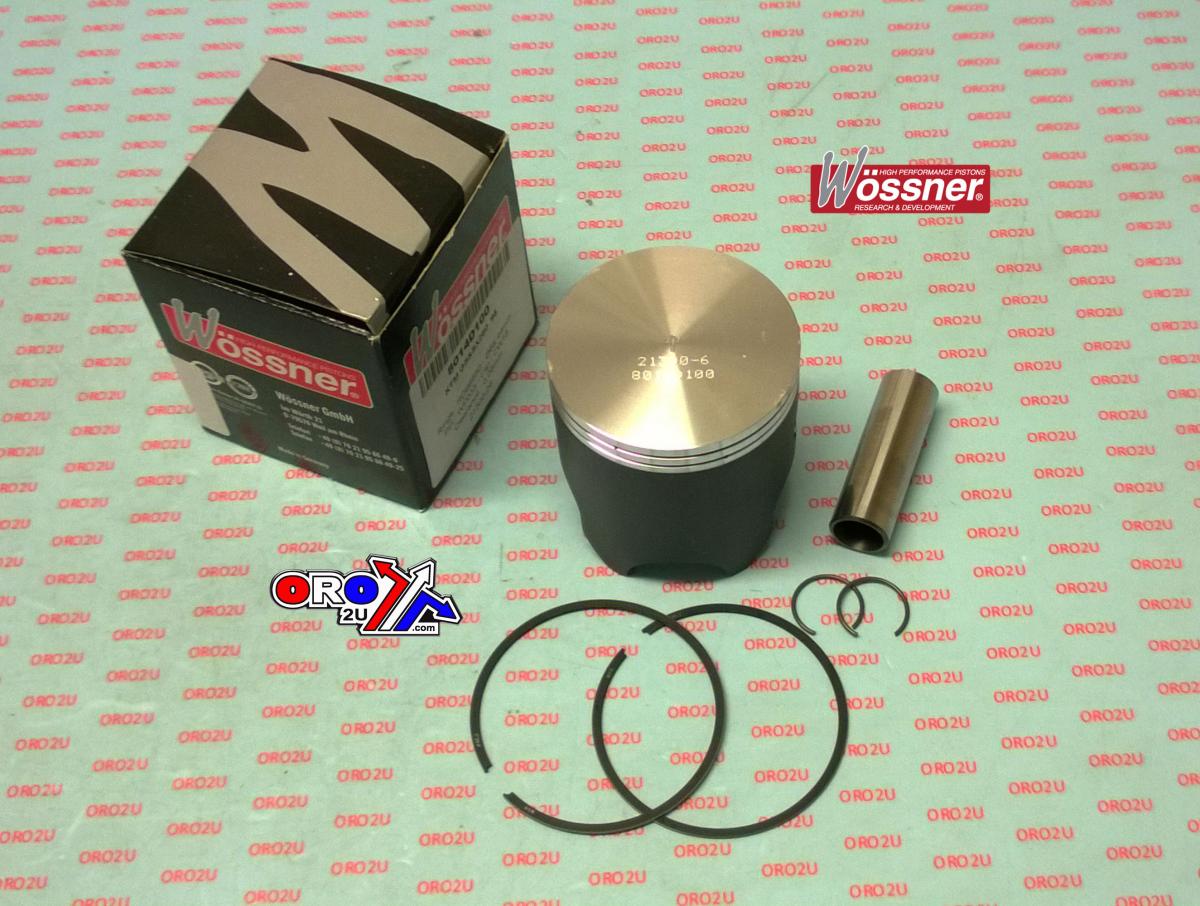

WOSSNER 67.5mm FORGED PISTON KIT B, KTM 250 SX 1995

Wossner forged piston kit with a 67.51mm bore (67.45mm actual) is specifically developed for KTM GS250 and SX250 models from 1995. Crafted in Germany, this piston features an elliptical profile that distributes thrust loads evenly and supports optimal heat transfer from the combustion chamber to the cylinder wall, reducing stress concentrations and minimising the risk of piston failure under thermal expansion.

Features

• High-strength forged piston construction

• Designed for efficient combustion heat dissipation to cylinder wall

• Elliptical shape promotes consistent bearing surface under expansion

• Prevents localised stress points and piston deformation

• Precision manufactured in Germany

Specifications

• Bore Size: 67.51mm (Actual: 67.45mm)

• Compression Height: 29.70mm

• Clearance: 0.06mm

• Stroke: 69.50mm

• Displacement: 249 cm³

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

• Piston Kit: 8014DB

• Lock: CW18

• Pin: WP033

• Ring Set: RSB6750 x2

Vehicle Fitments

• KTM GS250 (1995)

• KTM SX250 (1995)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
