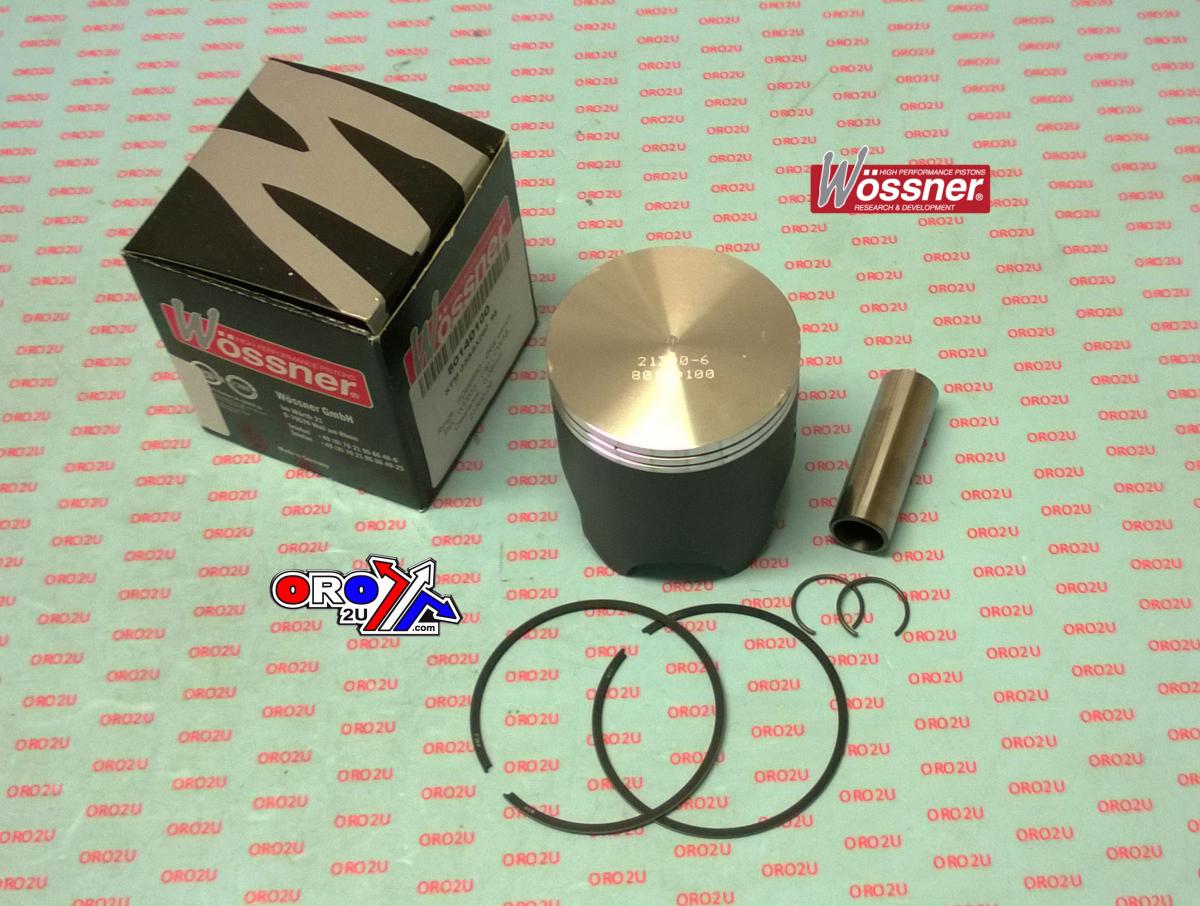

WOSSNER 67.5mm FORGED PISTON KIT A, KTM 250 SX 1995

Wossner forged piston kit with a 67.50mm bore (67.44mm actual) is designed for KTM GS250 and SX250 models from 1995. This piston offers exceptional strength and thermal efficiency, utilising an elliptical design that provides a more consistent bearing surface under thermal expansion. Manufactured in Germany, it reduces localised pressure and evenly distributes thrust loads to protect against piston collapse during operation.

Features

• Forged for high strength and durability

• Efficient heat transfer from combustion chamber to cylinder wall

• Elliptical design ensures even bearing surface under thermal stress

• Reduces risk of localised pressure points and piston collapse

• Manufactured in Germany

Specifications

• Bore Size: 67.50mm (Actual: 67.44mm)

• Compression Height: 29.70mm

• Clearance: 0.06mm

• Stroke: 69.50mm

• Displacement: 249 cm³

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

• Piston Kit: 8014DA

• Lock: CW18

• Pin: WP033

• Ring Set: RSB6750 x2

Vehicle Fitments

• KTM GS250 (1995)

• KTM SX250 (1995)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
