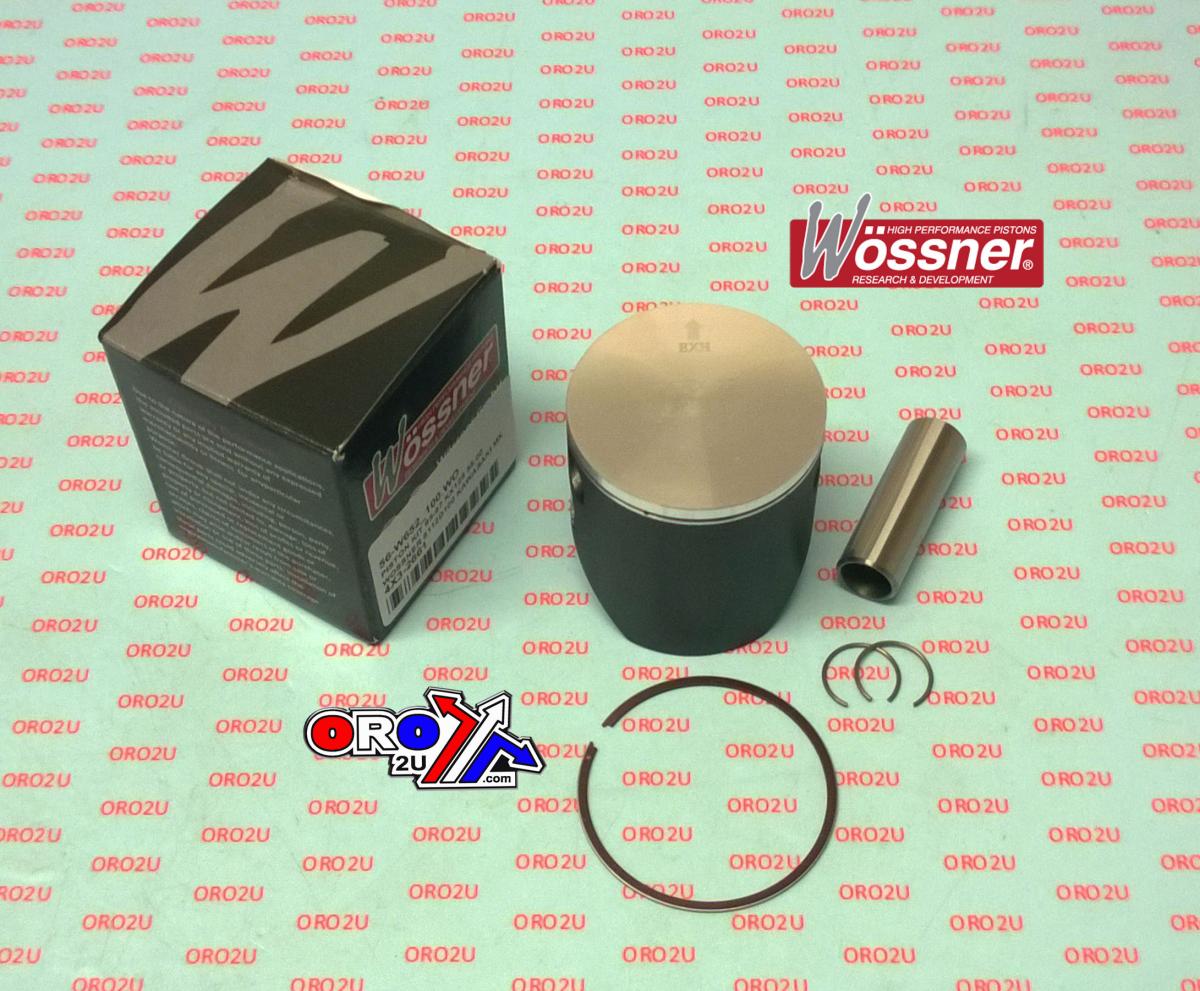

WOSSNER 56mm PISTON KIT KAWASAKI KX125 1995-1997

Wossner forged piston kit with a 56.00mm bore (55.94mm actual) is precisely engineered for the Kawasaki KX125 models from 1995 to 1997. Designed to optimise performance under high thermal loads, this German-made piston features an elliptical profile that distributes stress more uniformly during expansion, ensuring durability and preventing piston collapse during operation.

Features

• Forged piston for high strength and thermal stability

• Superior heat transfer from combustion chamber to cylinder walls

• Elliptical design ensures even thrust load distribution

• Minimises localised pressure and risk of piston failure

• Precision manufactured in Germany

Specifications

• Bore Size: 56.00mm (Actual: 55.94mm)

• Compression Height: 29.50mm

• Clearance: 0.06mm

• Stroke: 54.50mm

• Displacement: 125 cm³

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

• Piston Kit: 8112D200

• Lock: CW15

• Pin: WP032

• Ring Set: RSB5600

• Rod: 2038

Vehicle Fitments

• Kawasaki KX125 (1995–1997)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
