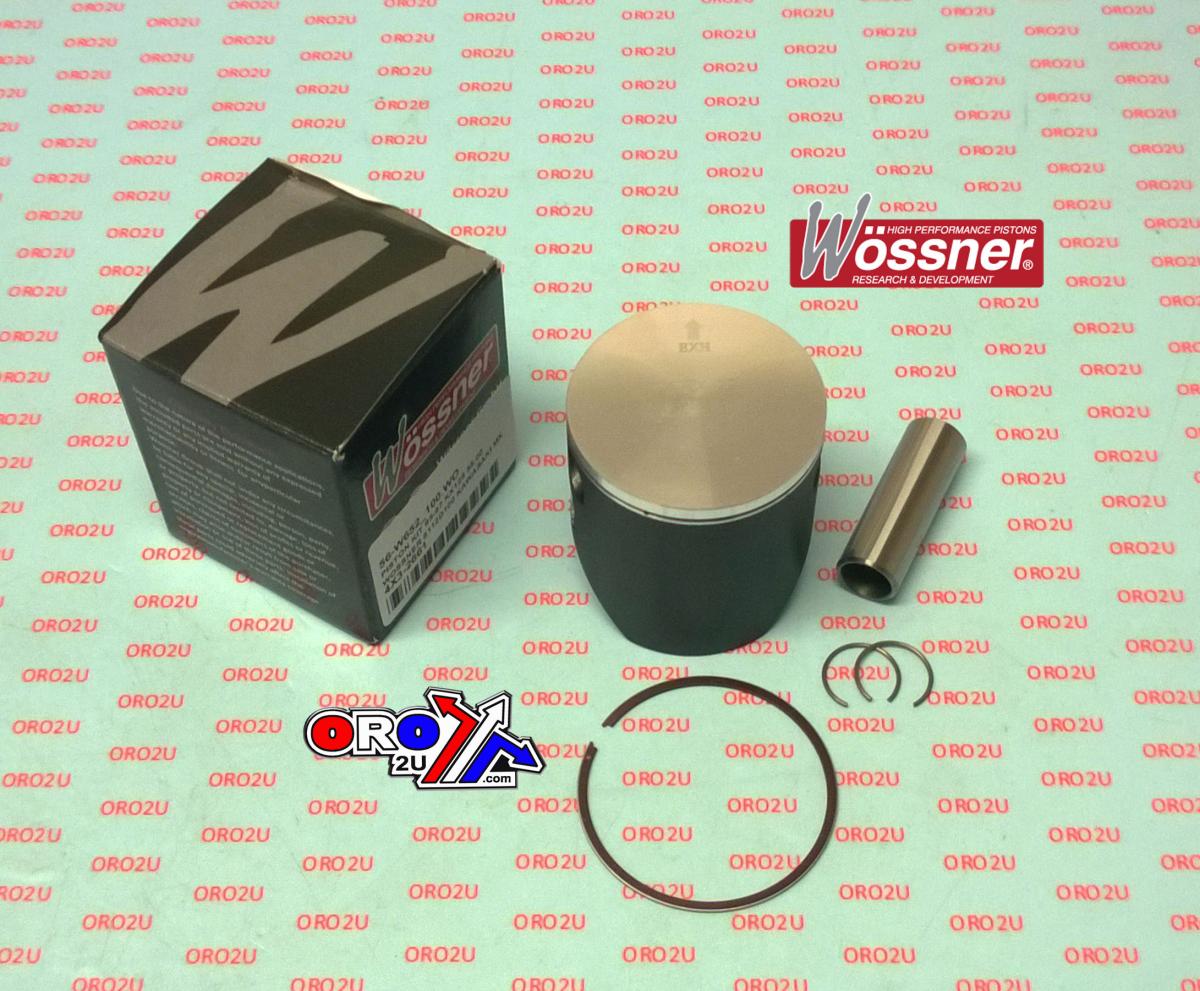

WOSSNER 54.5mm PISTON KIT KAWASAKI KX125 1995-1997

The Wossner 8112D050 forged piston kit, with a 54.50mm bore (+0.50mm oversize), is developed for Kawasaki KX125 models from 1995 to 1997. This piston is engineered to withstand the stresses of high-performance 2-stroke operation. Its elliptical design accommodates thermal expansion uniformly, ensuring consistent surface contact and minimising the risk of piston collapse. Precision-manufactured in Germany, it ensures optimal heat transfer and durability.

Features

• High-strength forged aluminium piston for durability in performance applications

• Elliptical profile ensures even pressure distribution and reduced stress points

• Designed for effective combustion heat dissipation to cylinder walls

• German-manufactured to precise engineering standards

Specifications

• Bore Size: 54.50 mm (+0.50 mm oversize)

• Display Displacement: 125 cm³

• Stroke: 54.50 mm

• Piston Clearance: 0.06 mm

• Compression Height: 29.50 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference Wossner Part Numbers

• Piston Kit: 8112D050

• Lock: CW15

• Pin: WP032

• Ring Set: RSB5450

• Rod: 2038

• Internal Reference Part No.: 56-W652_050.WO

Vehicle Fitments

• Kawasaki KX125: 1995–1997

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
