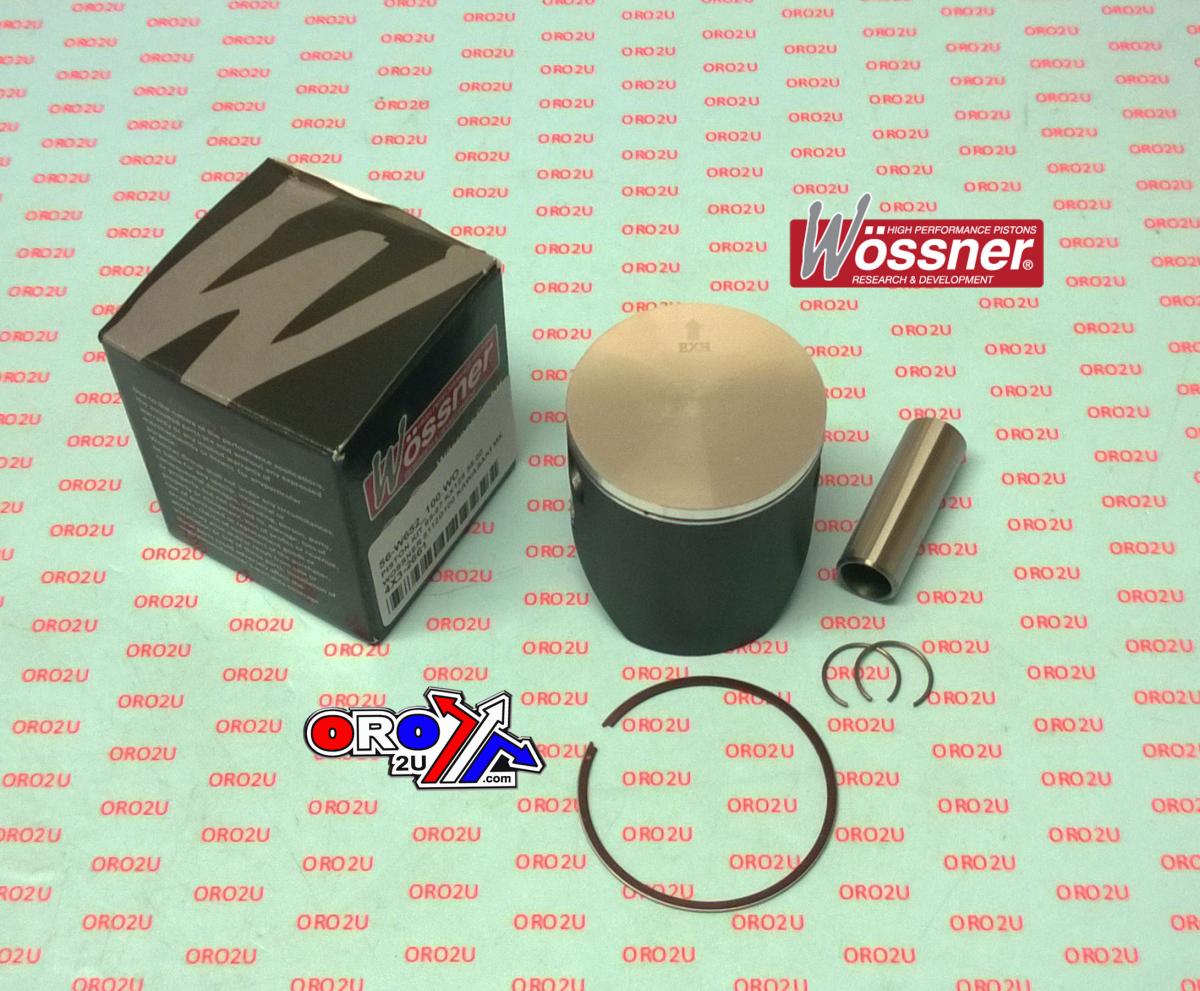

PISTON KIT 95-97 KX125 54.00 B WOSSNER 8112DB KAWASAKI MX

The Wossner 8112DB piston kit features a 54.01mm bore (+0.01mm oversize) and is specifically designed for Kawasaki KX125 models produced between 1995 and 1997. Forged for superior mechanical strength, the piston utilises an elliptical contour to ensure even thermal expansion, minimising stress concentrations and preventing piston failure. Engineered and manufactured in Germany, it delivers consistent performance and durability under 2-stroke engine conditions.

Features

• High-strength forged piston construction

• Elliptical design promotes uniform bearing surface during expansion

• Efficient heat dissipation from combustion chamber to cylinder walls

• Manufactured in Germany to high precision standards

Specifications

• Bore Size: 54.01 mm (+0.01 mm oversize)

• Display Displacement: 125 cm³

• Stroke: 54.50 mm

• Piston Clearance: 0.06 mm

• Compression Height: 29.50 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference Wossner Part Numbers

• Piston Kit: 8112DB

• Lock: CW15

• Pin: WP032

• Ring Set: RSB5400

• Rod: 2038

• Internal Reference Part No.: 56-W652.B.WO

Vehicle Fitments

• Kawasaki KX125: 1995–1997

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
