PISTON KIT 95-97 KX125 54.00 A WOSSNER 8112DA KAWASAKI MX

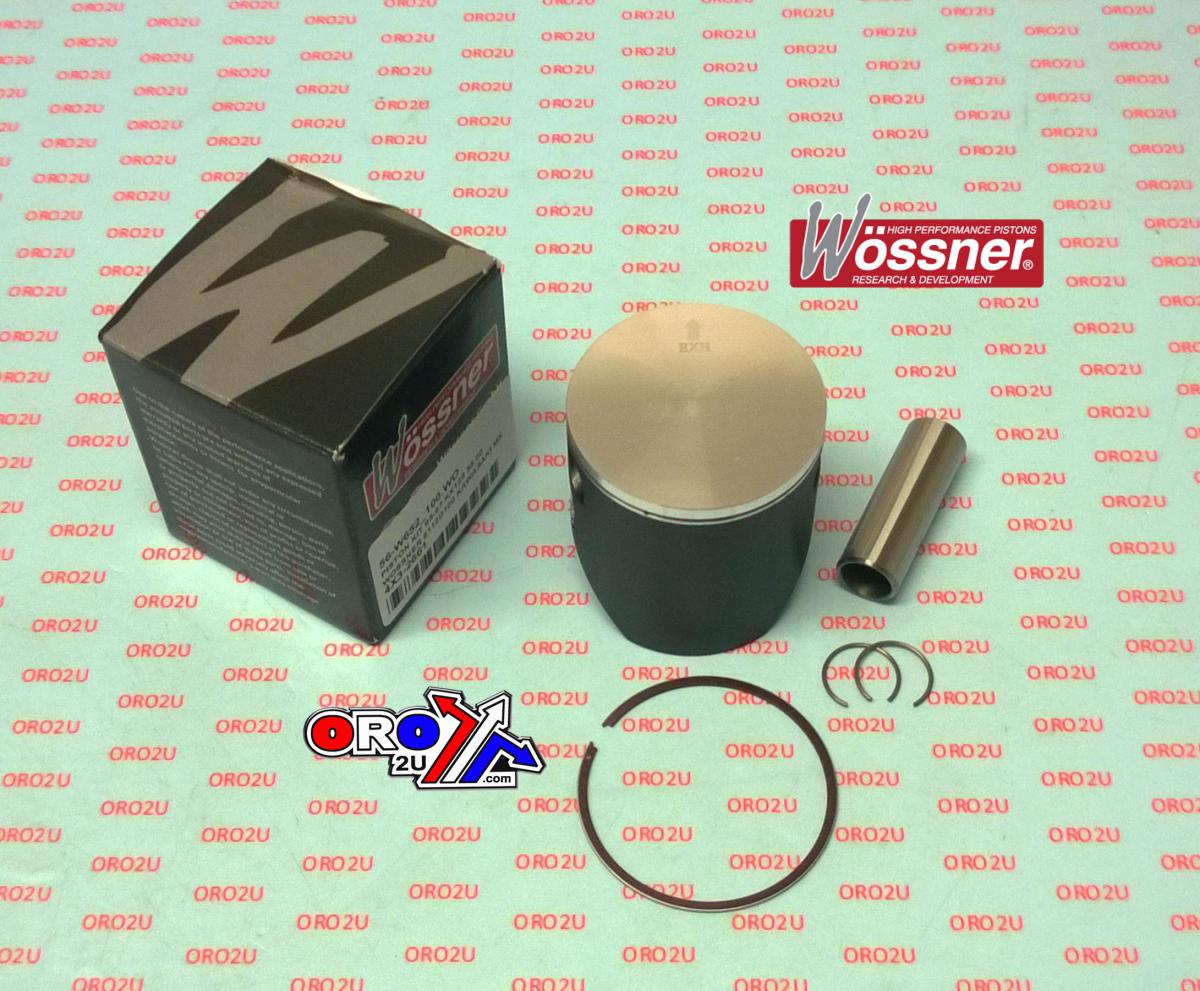

The Wossner 8112DA piston kit, with a 54.00mm standard bore, is engineered for Kawasaki KX125 models from 1995 to 1997. Manufactured in Germany, this forged piston is designed to withstand the demands of high-performance two-stroke engines. The elliptical shape ensures optimal expansion characteristics, reducing the risk of localised stress and piston collapse, while enhancing combustion chamber cooling.

Features

• Forged piston for high strength and durability

• Elliptical profile for even thrust load distribution and heat expansion control

• Designed to optimise heat transfer from combustion to cylinder wall

• Precision manufactured in Germany

Specifications

• Bore Size: 54.00 mm (Standard)

• Display Displacement: 125 cm³

• Stroke: 54.50 mm

• Piston Clearance: 0.06 mm

• Compression Height: 29.50 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

• 13001-1429

• 652M05400

Cross-Reference Wossner Part Numbers

• Piston Kit: 8112DA

• Lock: CW15

• Pin: WP032

• Ring Set: RSB5400

• Rod: 2038

• Internal Reference Part No.: 56-W652.A.WO

Vehicle Fitments

• Kawasaki KX125: 1995–1997

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
