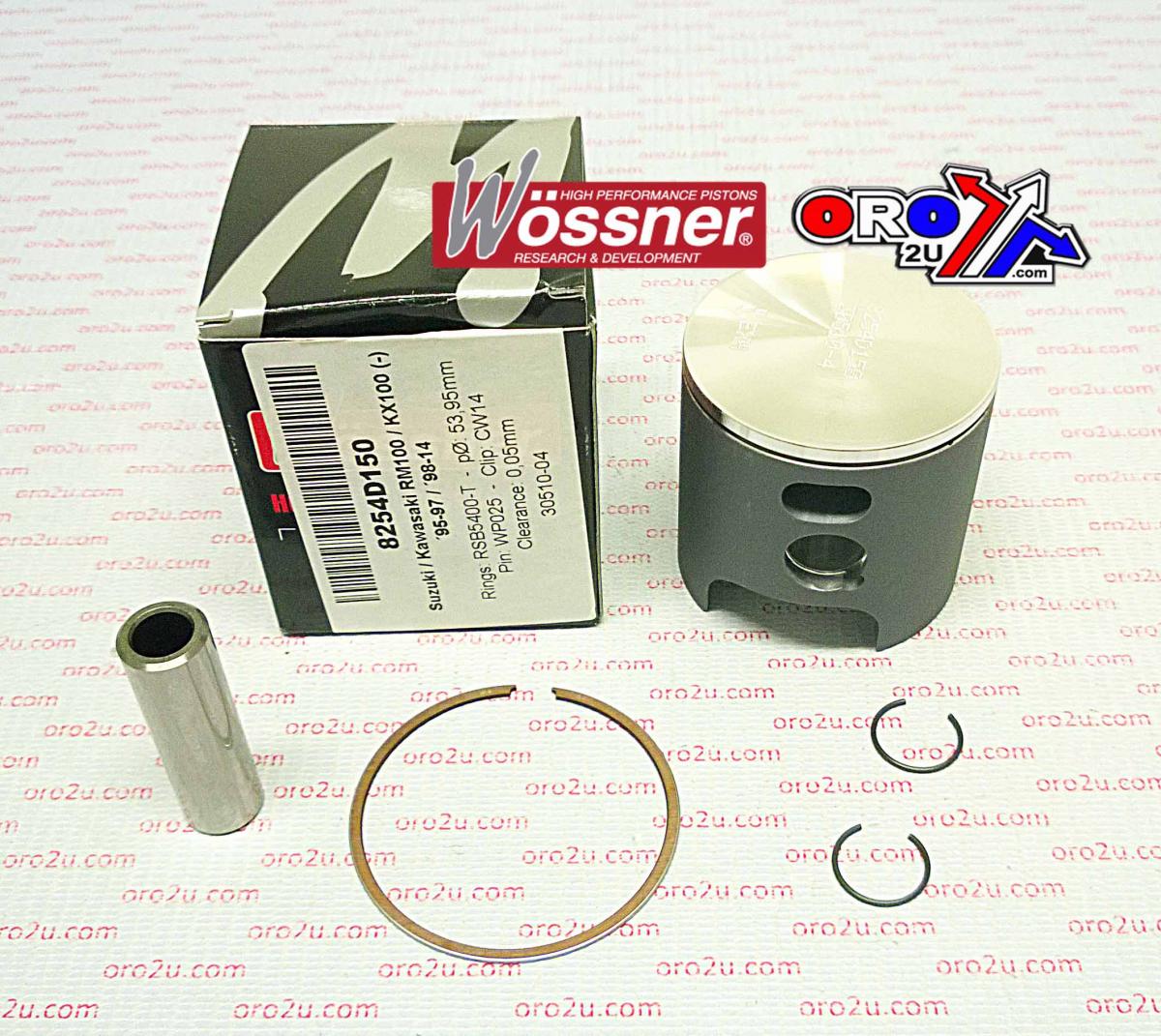

WOSSNER 54mm PISTON KIT A, KAWASAKI KX100 95-21, SUZUKI RM100 2003, 1-RING

The Wossner 54.00mm forged piston kit (Part No. 8254D150) is tailored for high-performance rebuilds of Kawasaki and Suzuki 100cc 2-stroke engines. With a design that prioritises even thermal expansion and load distribution, this piston minimises the risk of collapse while enhancing combustion efficiency. Made in Germany, it upholds high standards of precision and endurance for race or off-road use.

Features

• Forged piston construction delivers high strength under demanding conditions

• Elliptical profile provides a uniform bearing surface during heat expansion

• Optimised for effective heat dissipation from the combustion area to the cylinder

• Precision-manufactured in Germany

Specifications

• Bore Size: 54.00 mm (+1.50 mm oversize)

• Display Displacement: 100 cm³

• Stroke: 45.80 mm

• Piston Clearance: 0.05 mm

• Compression Height: 26.00 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

• Piston Kit: 8254D150

• Lock: CW14

• Pin: WP025

• Ring Set: RSB5400

• Rod: P2005

• Internal Reference Part No.: 56-W651.150.WO

Vehicle Fitments

• Kawasaki KX100: 1995–2018

• Suzuki RM100: 2003

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
