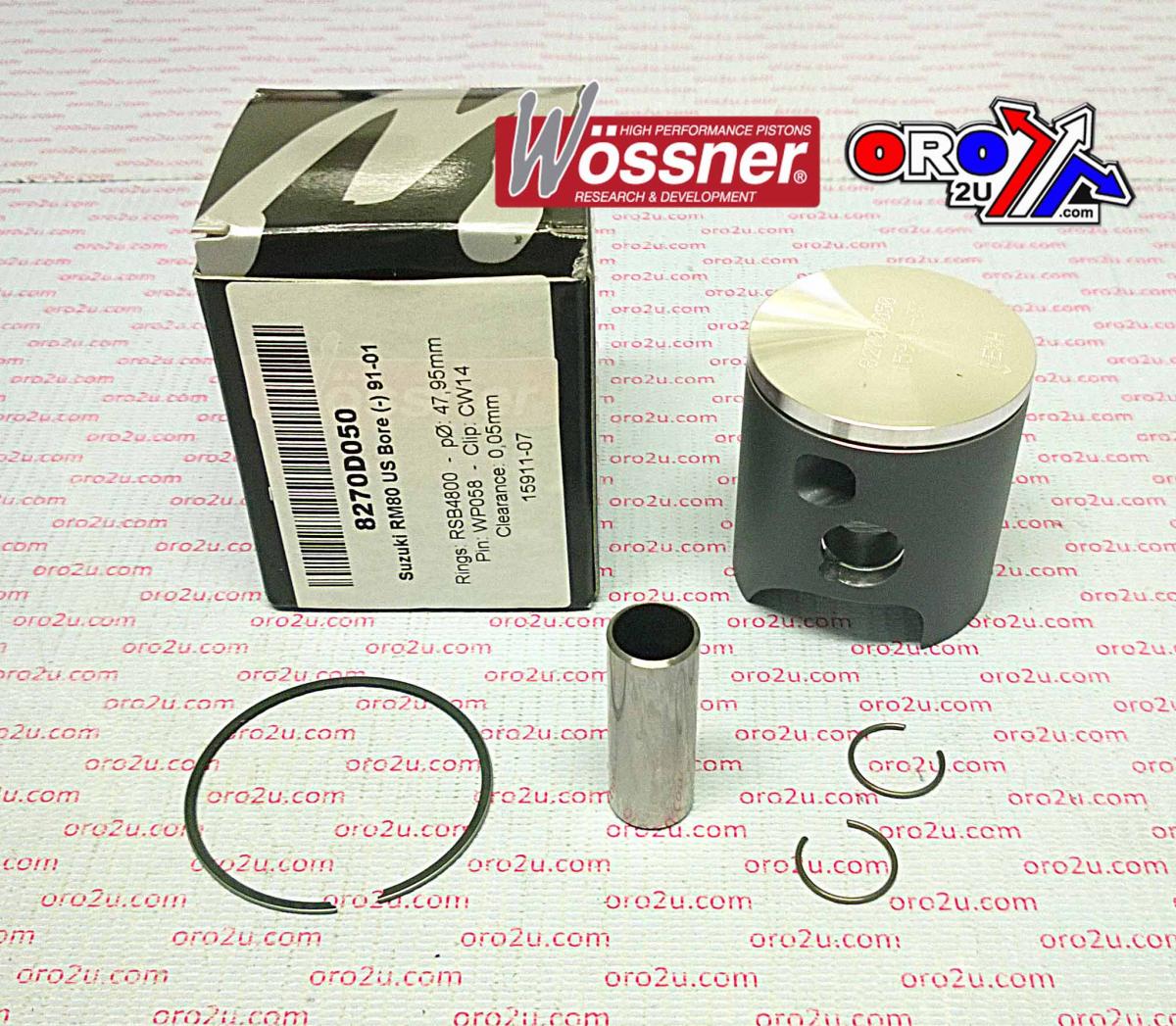

WOSSNER 48.5mm PISTON KIT SUZUKI RM80 1991-2001

Wossner forged piston kit with a 48.50mm bore size (48.45mm actual), specifically designed for Suzuki RM80 models from 1991 to 2001 with a US bore. Manufactured in Germany, this piston kit features an elliptical design that supports uniform bearing surfaces under thermal expansion, promotes efficient heat transfer from the combustion chamber, and distributes thrust loads evenly to reduce the risk of piston collapse.

Features

• Forged piston construction for high strength and reliability

• Engineered to optimise heat transfer from combustion chamber to cylinder walls

• Elliptical design ensures uniform bearing surface during thermal expansion

• Helps prevent localised pressure and piston collapse

• Manufactured in Germany

Specifications

• Bore Size: 48.50mm (actual 48.45mm)

• Display Displacement: 82 cm³

• Stroke: 46.80mm

• Clearance: 0.05mm

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

• Compression Height: 27.00mm

Cross-Reference OEM Part Numbers

• Piston Kit: 8270D100

• Lock: CW14

• Pin: WP058

• Ring Set: RSB4850

Vehicle Fitments

• 1991–2001 Suzuki RM80 (US Bore)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
