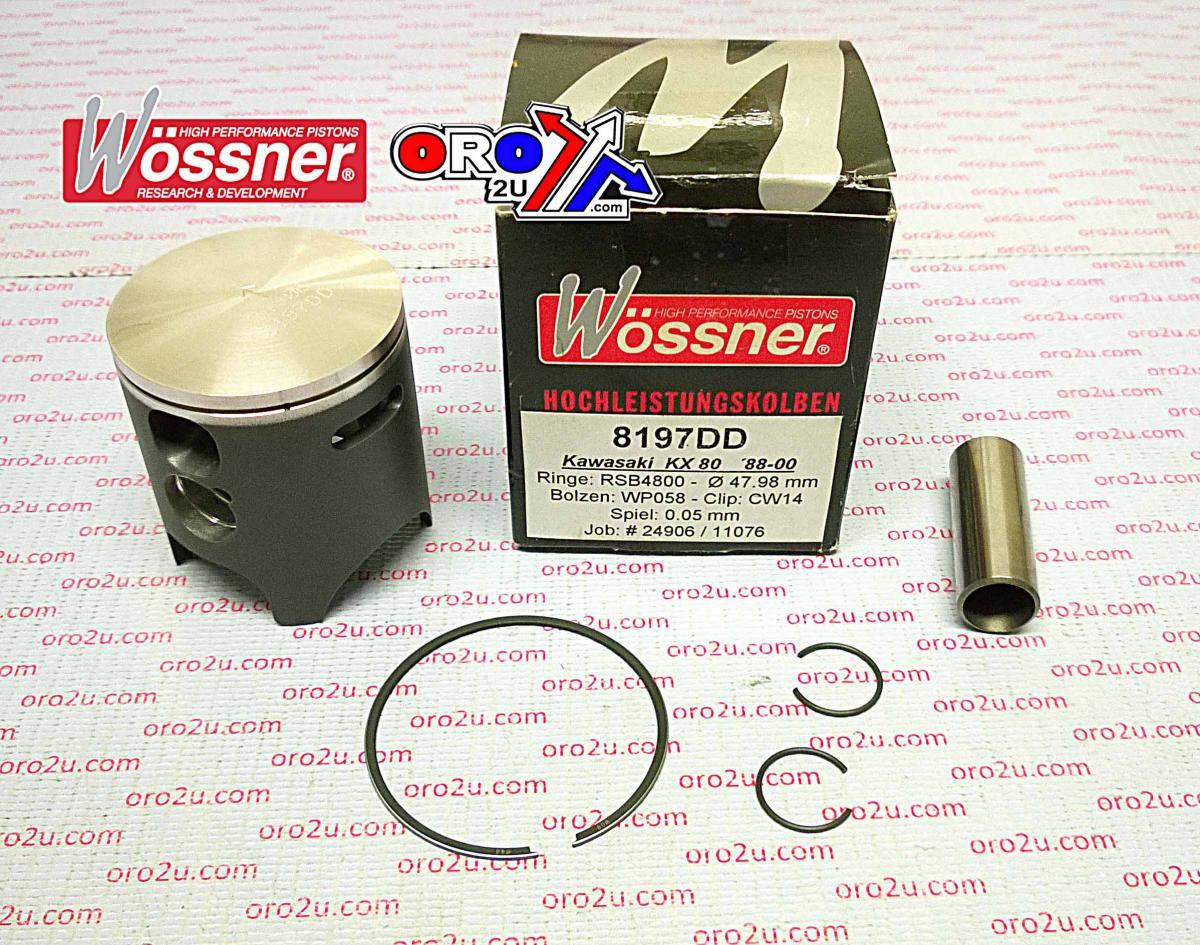

WOSSNER 52mm PISTON KIT KAWASAKI KX80 1988-2000

Wossner forged piston kit with a 52mm bore size (51.95mm actual), specifically designed for Kawasaki KX80 models from 1988 to 2000 with a US bore. Manufactured in Germany, this piston kit incorporates an elliptical design to promote uniform bearing surfaces during heat expansion, ensuring effective combustion chamber heat transfer and evenly distributing thrust loads to prevent piston collapse.

Features

• Forged piston construction for superior strength and durability

• Designed for efficient heat transfer from combustion chamber to cylinder walls

• Elliptical design ensures uniform bearing surface during thermal expansion

• Reduces localised pressure and prevents piston collapse

• Manufactured in Germany

Specifications

• Bore Size: 52mm (actual 51.95mm)

• Display Displacement: 80 cm³

• Stroke: 45.80mm

• Clearance: 0.05mm

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

• Compression Height: 26.00mm

Cross-Reference OEM Part Numbers

• Piston Kit: 8197D400

• Lock: CW14

• Pin: WP058

• Ring Set: RSB5200

Vehicle Fitments

• 1988–2000 Kawasaki KX80 (US Bore)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
