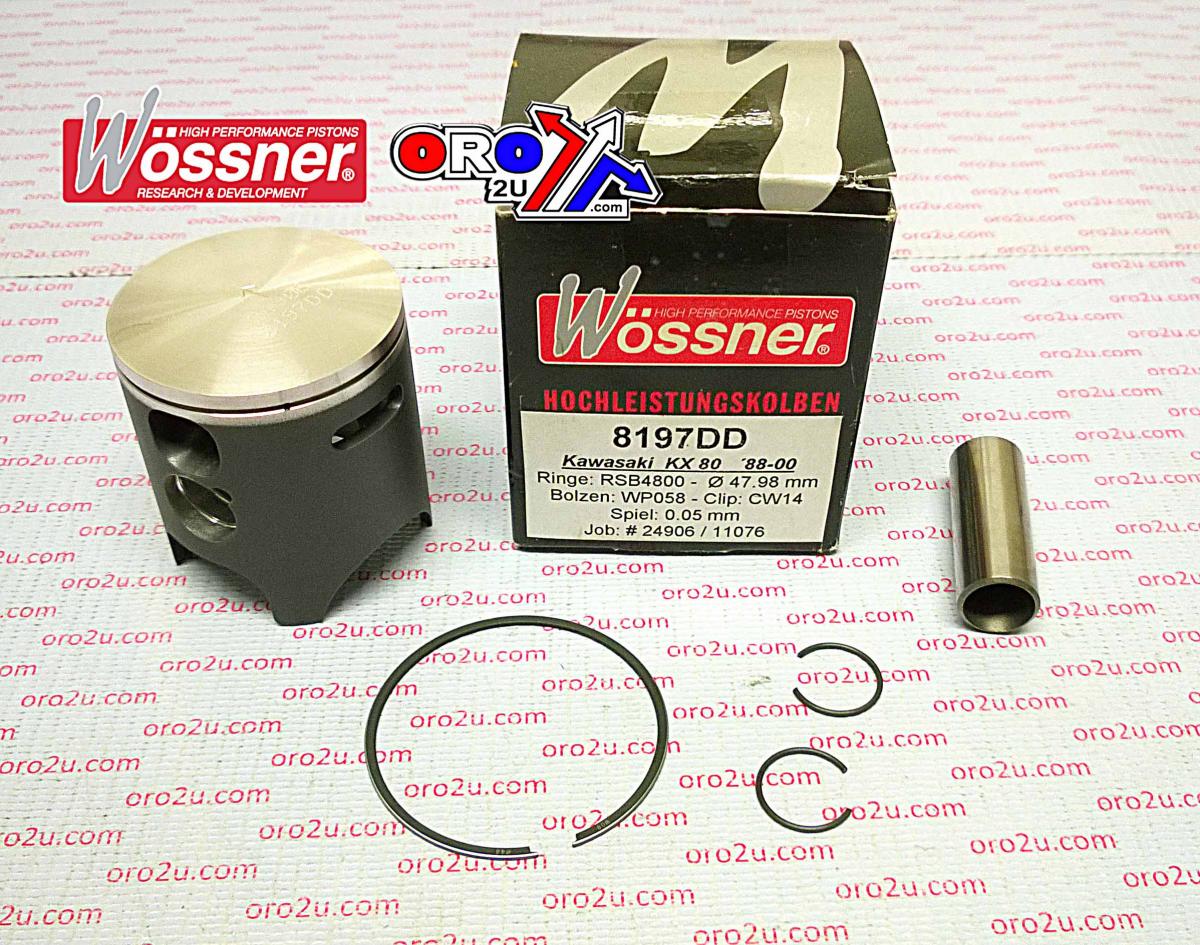

PISTON KIT 88-00 KX80 48.00 C WOSSNER 8197DC KAWASAKI MX

Wossner forged piston kit with a 48.02mm bore size (47.97mm actual), specifically designed for Kawasaki KX80 models from 1988 to 2000 with a US bore. Manufactured in Germany, this piston kit features an elliptical design to promote uniform bearing surfaces under heat expansion, enhancing heat transfer and evenly distributing thrust loads to prevent piston collapse.

Features

• Forged piston construction for high strength and durability

• Engineered for optimal heat transfer from combustion chamber to cylinder walls

• Elliptical design improves bearing surface uniformity during thermal expansion

• Reduces localised pressure and prevents piston collapse

• Manufactured in Germany

Specifications

• Bore Size: 48.02mm (actual 47.97mm)

• Display Displacement: 80 cm³

• Stroke: 45.80mm

• Clearance: 0.05mm

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

• Compression Height: 26.00mm

Cross-Reference OEM Part Numbers

• Piston Kit: 8197DC

• Lock: CW14

• Pin: WP058

• Ring Set: RSB4800

Vehicle Fitments

• 1988 Kawasaki KX80

• 1989 Kawasaki KX80

• 1990 Kawasaki KX80

• 1991 Kawasaki KX80

• 1992 Kawasaki KX80

• 1993 Kawasaki KX80

• 1994 Kawasaki KX80

• 1995 Kawasaki KX80

• 1996 Kawasaki KX80

• 1997 Kawasaki KX80

• 1998 Kawasaki KX80

• 1999 Kawasaki KX80

• 2000 Kawasaki KX80
