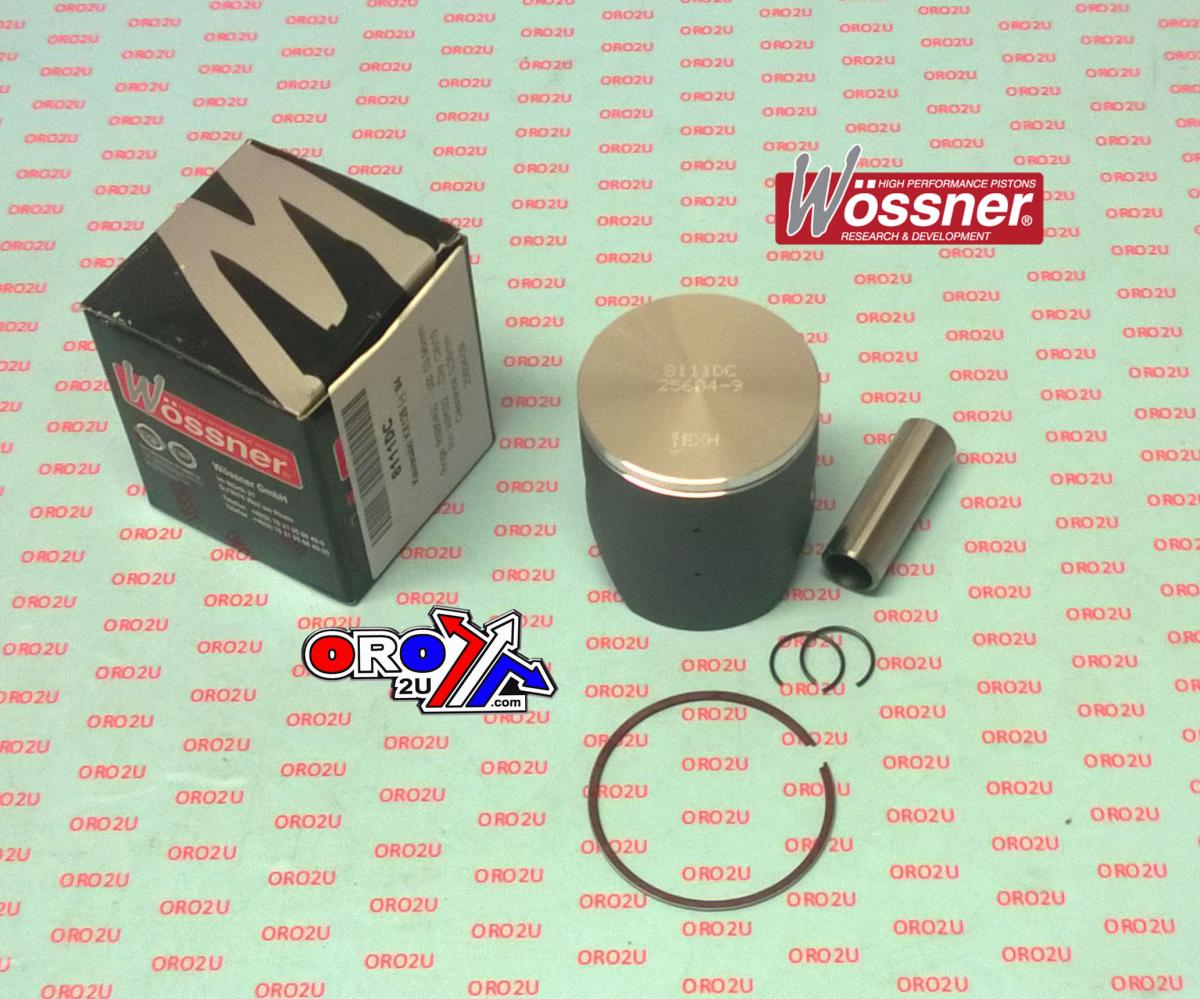

WOSSNER 54.5mm PISTON KIT KAWASAKI KX125 1994

The Wossner 8111D050 (+0.50) piston kit features a 54.50mm bore (actual 54.44mm) and is engineered for exceptional strength and effective heat transfer to the cylinder walls. The forged, elliptically designed piston maintains a uniform bearing surface during heat expansion, minimising localised pressure and distributing thrust loads evenly to prevent piston collapse. Made in Germany, this piston kit is specifically designed for the 1994 Kawasaki KX125.

Features

• Forged piston construction for maximum strength and durability

• Engineered to optimise combustion chamber heat transfer

• Elliptical design provides uniform bearing surface under thermal expansion

• Reduces localised pressure and prevents piston collapse

• Made in Germany

Specifications

• Bore Size: 54.50mm (Actual 54.44mm)

• Display (cm³): 125

• Stroke (mm): 54.50

• Clearance (mm): 0.06

• Compression Ratio (Wossner 2-stroke): 2 stroke

• Compression Ratio (OEM 2-stroke): 2 stroke

• Compression Height (mm): 29.50

Cross-Reference OEM Part Numbers

• Wossner Piston Kit Part No: 8111D050

• Lock Part No: CW15

• Pin Part No: WP032

• Ring Set Part No: RSB5450

• Rod Part No: P2038

Vehicle Fitments

• 1994 Kawasaki KX125

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
