PISTON KIT 92-01 KX250 68.00 WOSSNER 8026D160 KAWASAKI MX

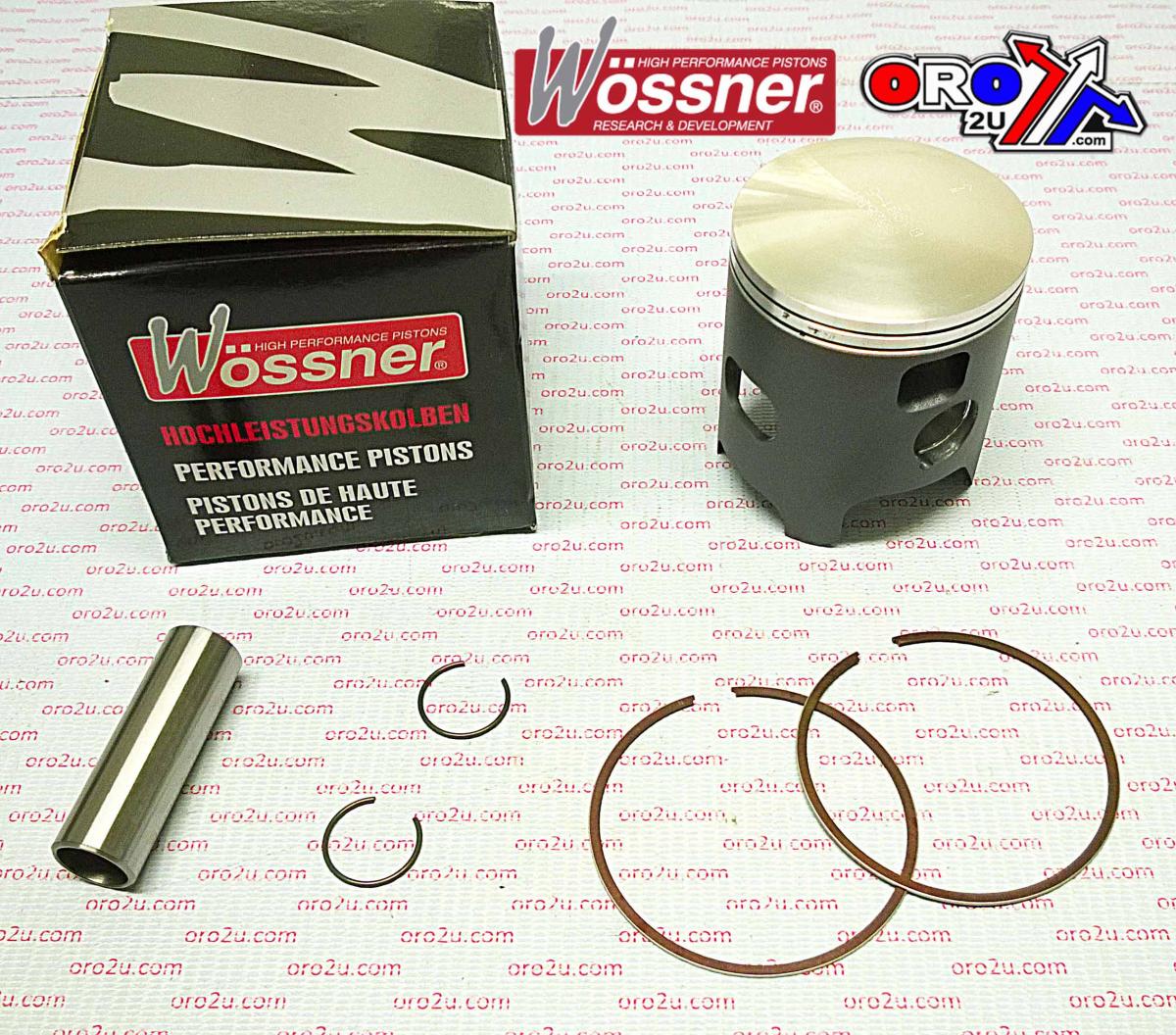

Wossner Forged Piston Kit 68.00mm Bore – Kawasaki KX250 (1992–2001)
This Wossner forged piston kit is designed for Kawasaki KX250 models from 1992 to 2001. With a bore size of 68.00 mm and a piston diameter of 67.94 mm (+1.60 mm oversize), it is suited for significantly overbored or re-sleeved engines. Forged in Germany, the piston provides outstanding durability and performance. The elliptical design ensures a more uniform bearing surface, effectively managing heat expansion and evenly distributing thrust loads to minimize wear and reduce the risk of piston failure.

Features

• Forged construction for maximum strength and thermal resilience

• Elliptical design evenly distributes load and reduces localised pressure

• Efficient combustion chamber heat transfer

• Manufactured in Germany for precision and reliability

Specifications

• Bore Size: 68.00 mm

• Piston Diameter: 67.94 mm

• Engine Displacement: 249 cm³

• Stroke: 72.00 mm

• Clearance: 0.06 mm

• Compression Height: 38.00 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference Wossner Part Numbers

• Piston Kit: 8026D160

• Lock: CW18

• Pin: WP033

• Ring Set: RSB6800 x 2

Vehicle Fitments

• 1992 Kawasaki KX250

• 1993 Kawasaki KX250

• 1994 Kawasaki KX250

• 1995 Kawasaki KX250

• 1996 Kawasaki KX250

• 1997 Kawasaki KX250

• 1998 Kawasaki KX250

• 1999 Kawasaki KX250

• 2000 Kawasaki KX250

• 2001 Kawasaki KX250

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
