WOSSNER 67mm PISTON KIT KAWASAKI KX250 1992-2004

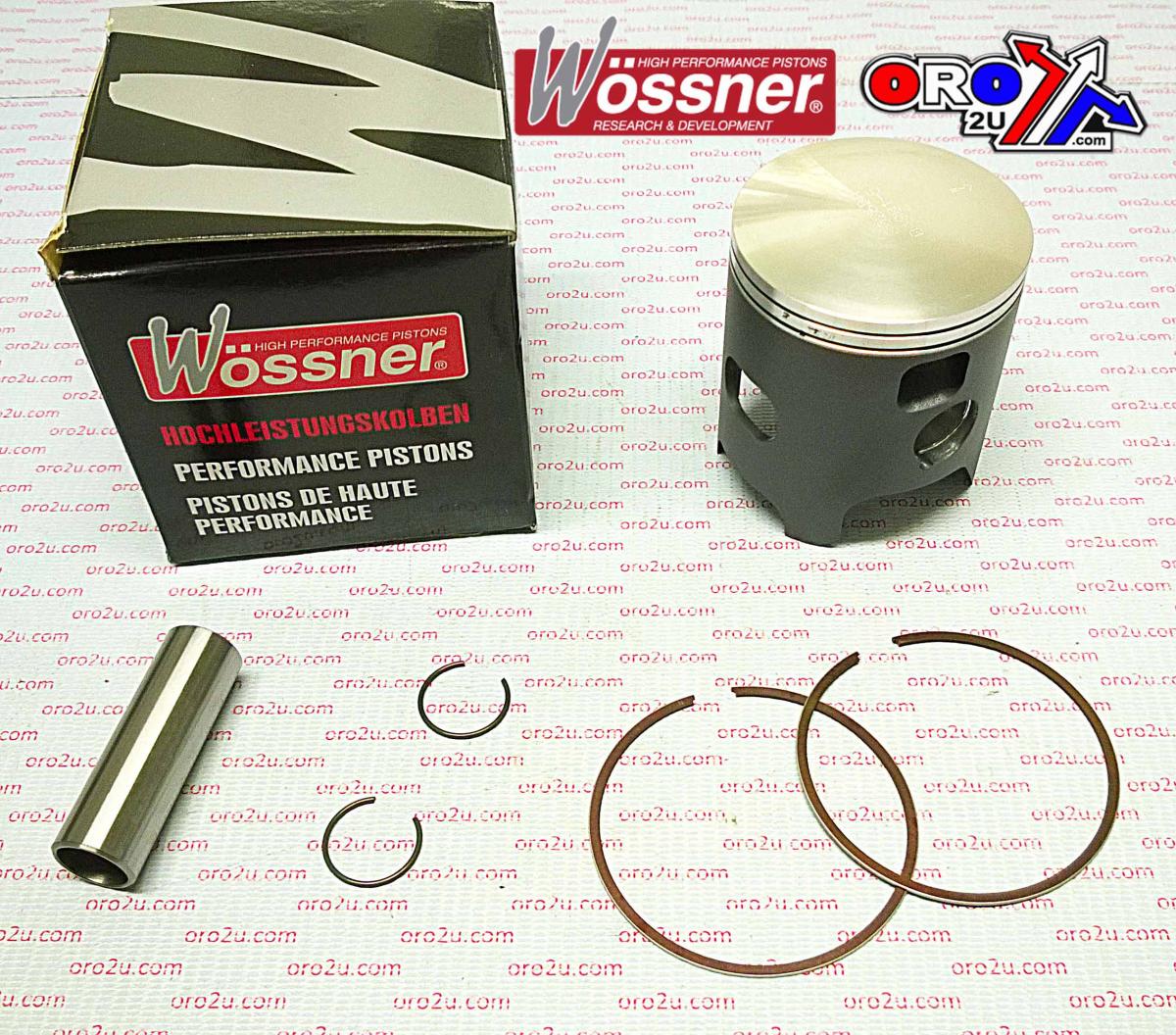

Wossner Forged Piston Kit 67.00mm Bore – Kawasaki KX250 (1992–2001)
This Wossner forged piston kit is specifically designed for Kawasaki KX250 models from 1992 to 2001. With a bore size of 67.00 mm and a piston diameter of 66.94 mm (+0.60 mm oversize), it is ideal for cylinders requiring significant oversizing. The forged aluminium construction provides high structural strength, while the elliptical design evenly distributes thrust loads to prevent localised stress and piston collapse. Manufactured in Germany for precision and performance.

Features

• Forged piston offers superior durability and mechanical strength

• Elliptical design ensures even pressure distribution under heat expansion

• Efficient combustion chamber heat transfer

• Precision-engineered in Germany for consistent fit and performance

Specifications

• Bore Size: 67.00 mm

• Piston Diameter: 66.94 mm

• Engine Displacement: 249 cm³

• Stroke: 72.00 mm

• Clearance: 0.06 mm

• Compression Height: 38.00 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference Wossner Part Numbers

• Piston Kit: 8026D060

• Lock: CW18

• Pin: WP033

• Ring Set: RSB6700 x 2

Vehicle Fitments

• 1992 Kawasaki KX250

• 1993 Kawasaki KX250

• 1994 Kawasaki KX250

• 1995 Kawasaki KX250

• 1996 Kawasaki KX250

• 1997 Kawasaki KX250

• 1998 Kawasaki KX250

• 1999 Kawasaki KX250

• 2000 Kawasaki KX250

• 2001 Kawasaki KX250

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
