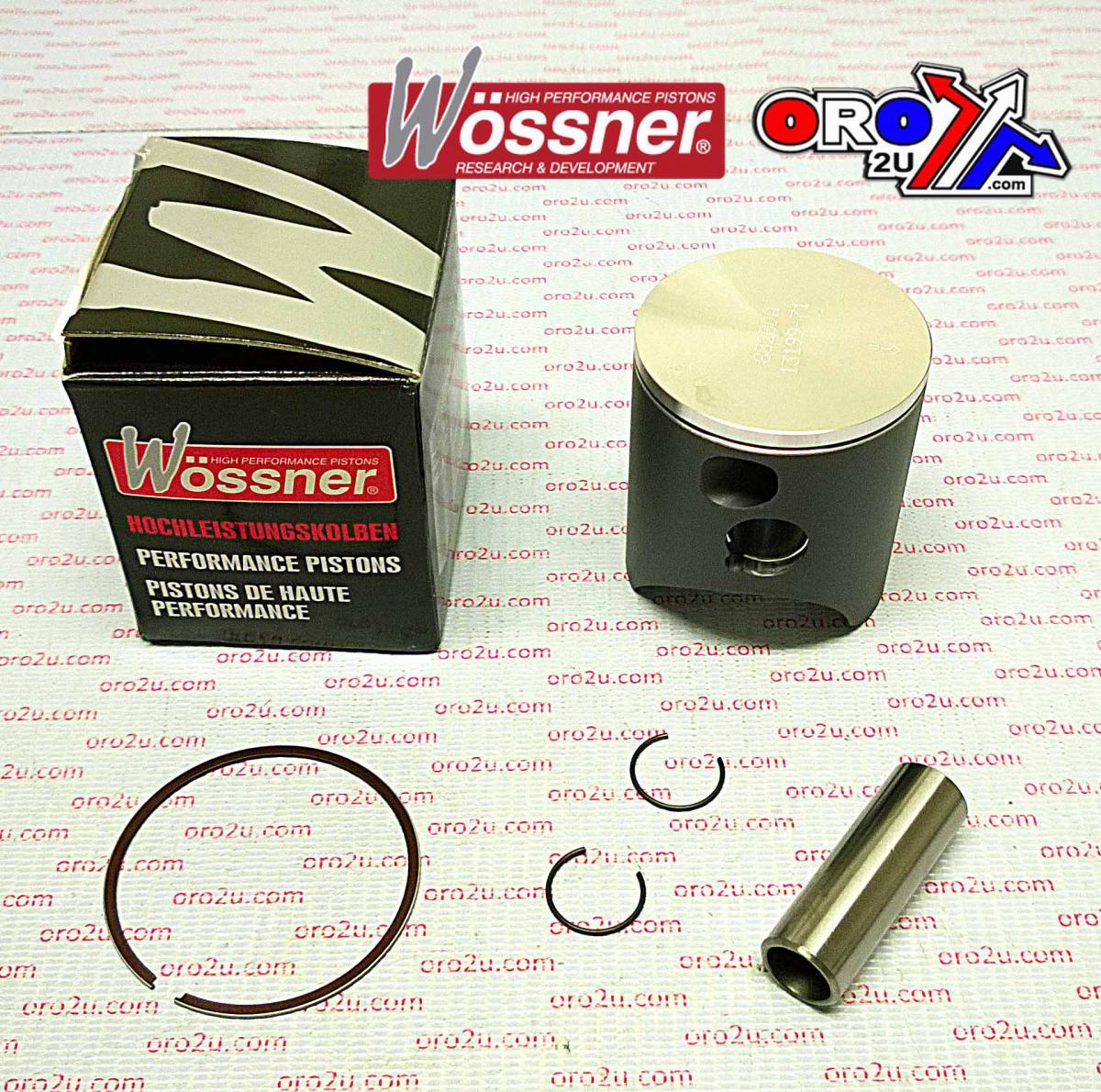

PISTON KIT 92-99 CR125 54.00 WOSSNER 8020DD,8089DD FORGED

Piston Kit 54.03mm Bore 53.98 Wossner 8020DD (+0.03)

HONDA CR125 1992 - 1999, HUSQVARANA CR 125 / WR 125 / SM 125 / SMS 125 / WRE 125 1997 - 2013

Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.

• Lock P/N: CW15
• Pin P/N: WP032
• Ring Set P/N: RSB5400
• Rod P/N: P2009

Specifications:

• Display (cm3): 125
• Hub Stroke (mm): 54.50
• Clearance (mm): 0.05
• Wossner Compression Ratio: 2 stroke
• OEM Compression Ratio: 2 stroke
• Dome Volume (cm3):
• Compression Height (mm): 28.00
• Theoretical Weight (G):

Cross Reference Numbers (ONLY):

• 13110-KZ4-505
• 09104723
• 676M05400
• 8089DA
• 800099749/3
• 09104812
• 760M05400

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
