PISTON KIT 92-99 CR125 54.00 WOSSNER 8020DC,8089DC FORGED

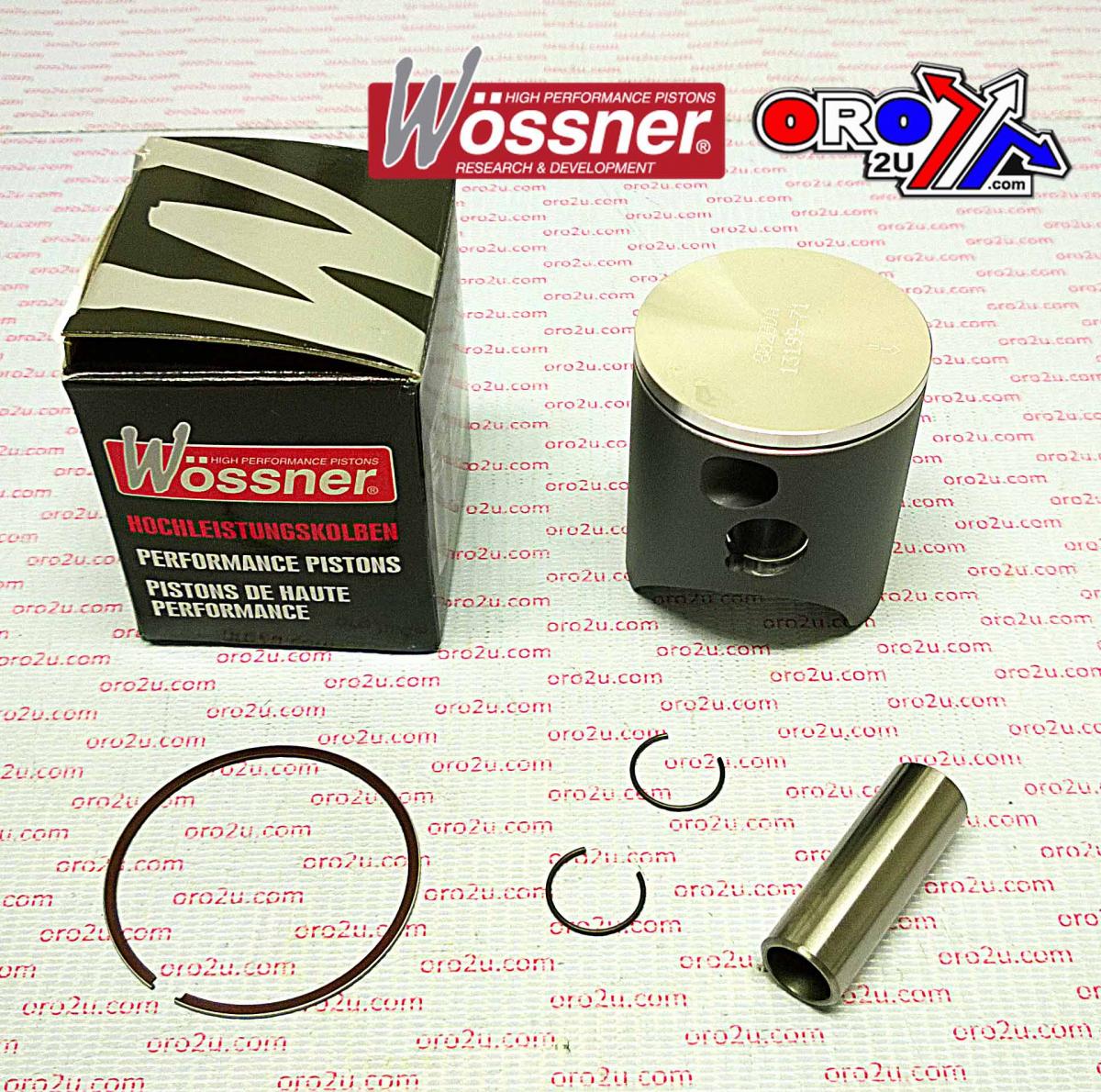

Wossner Forged Piston Kit 54.02mm Bore – Honda CR125 (1992–1999) / Husqvarna 125cc Models (1997–2013)
This Wossner forged piston kit is designed for Honda CR125 (1992–1999) and various Husqvarna 125cc models including CR, WR, SM, SMS, and WRE (1997–2013). With a bore size of 54.02 mm and a piston diameter of 53.97 mm (+0.02 mm oversize), it is ideal for slightly oversized cylinder applications. The forged construction delivers strength and reliability under stress, while the elliptical design ensures even load distribution. Made in Germany to exacting quality standards.

Features

• Forged piston for high strength and durability

• Superior heat transfer from the combustion chamber to cylinder walls

• Elliptical design distributes thrust loads evenly, reducing localised stress

• German-made for precision and quality assurance

Specifications

• Bore Size: 54.02 mm

• Piston Diameter: 53.97 mm

• Engine Displacement: 125 cm³

• Stroke: 54.50 mm

• Clearance: 0.05 mm

• Compression Height: 28.00 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM and Equivalent Part Numbers

• 13110-KZ4-505

• 09104723

• 676M05400

• 8089DA

• 800099749/3

• 09104812

• 760M05400

Cross-Reference Wossner Part Numbers

• Piston Kit: 8020DC

• Lock: CW15

• Pin: WP032

• Ring Set: RSB5400

• Rod: P2009

Vehicle Fitments

• Honda CR125 (1992–1999)

• Husqvarna CR 125 (1997–2013)

• Husqvarna WR 125 (1997–2013)

• Husqvarna SM 125 (1997–2013)

• Husqvarna SMS 125 (1997–2013)

• Husqvarna WRE 125 (1997–2013)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
