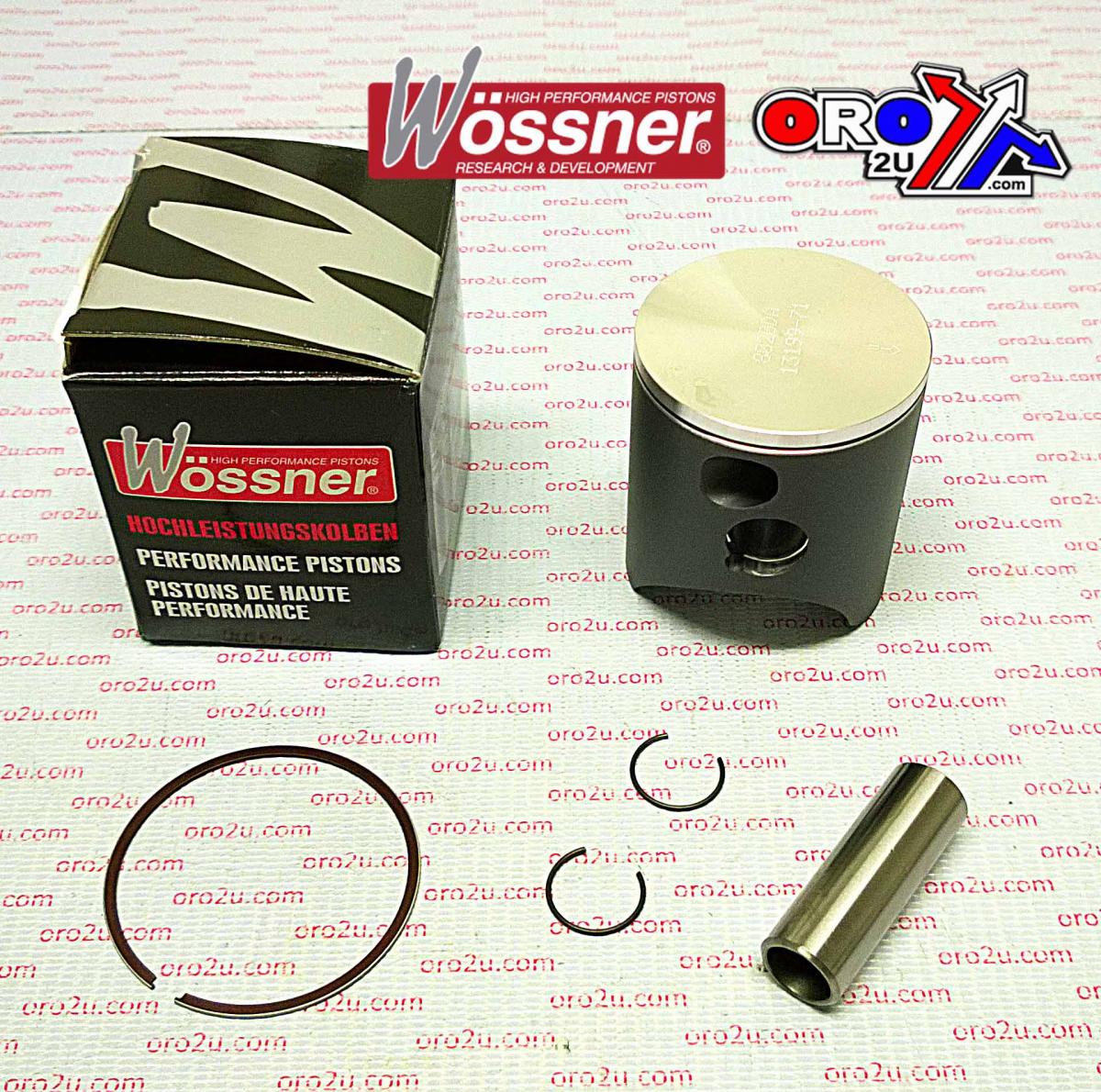

PISTON KIT 92-99 CR125 54.00 WOSSNER 8020DA,8089DA FORGED

Wossner Forged Piston Kit 54.00mm Bore – Honda CR125 (1992–1999) / Husqvarna 125cc Models (1997–2013)
This Wossner forged piston kit is designed for Honda CR125 models from 1992 to 1999 and a range of Husqvarna 125cc models, including CR, WR, SM, SMS, and WRE produced between 1997 and 2013. With a standard bore of 54.00 mm and a piston diameter of 53.95 mm, this piston provides high structural strength and superior thermal efficiency for 2-stroke engines. Its elliptical design ensures even load distribution under thermal expansion, reducing stress and wear. Manufactured in Germany to precise specifications.

Features

• Forged piston design for enhanced strength and reliability

• Engineered to optimise combustion heat transfer to cylinder walls

• Elliptical profile distributes thrust loads evenly and minimises pressure points

• Precision-manufactured in Germany

Specifications

• Bore Size: 54.00 mm

• Piston Diameter: 53.95 mm

• Engine Displacement: 125 cm³

• Stroke: 54.50 mm

• Clearance: 0.05 mm

• Compression Height: 28.00 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM and Equivalent Part Numbers

• 13110-KZ4-505

• 09104723

• 676M05400

• 8089DA

• 800099749/3

• 09104812

• 760M05400

Cross-Reference Wossner Part Numbers

• Piston Kit: 8020DA

• Lock: CW15

• Pin: WP032

• Ring Set: RSB5400

• Rod: P2009

Vehicle Fitments

• Honda CR125 (1992–1999)

• Husqvarna CR 125 (1997–2013)

• Husqvarna WR 125 (1997–2013)

• Husqvarna SM 125 (1997–2013)

• Husqvarna SMS 125 (1997–2013)

• Husqvarna WRE 125 (1997–2013)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
