PISTON KIT 1991 KX125 57.00 WOSSNER 8108D100 KAWASAKI MX

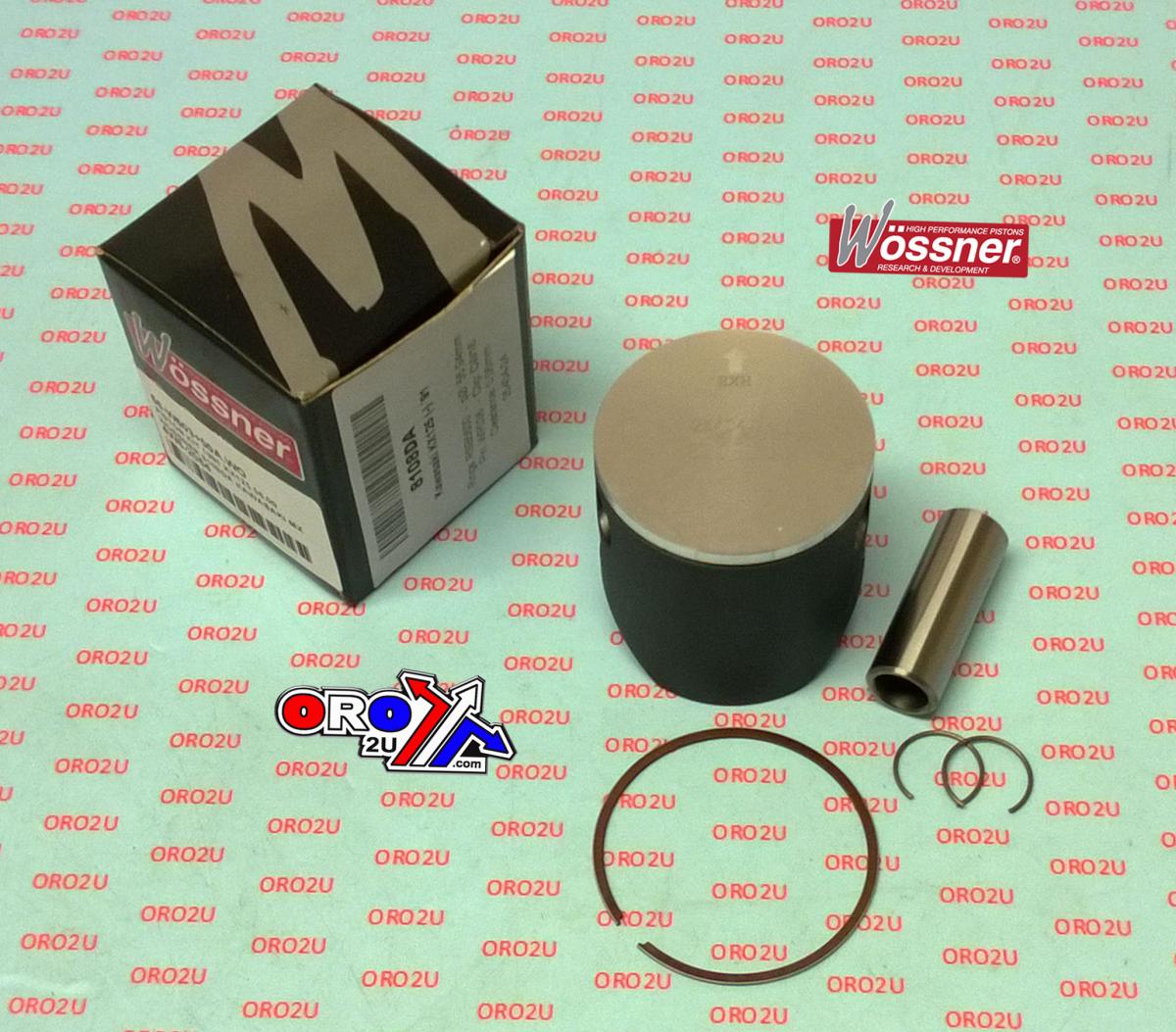

Wossner Forged Piston Kit 57.00mm Bore – Kawasaki KX125 (1991)
This Wossner forged piston kit is manufactured for the 1991 Kawasaki KX125, featuring a 57.00 mm bore and a piston diameter of 56.94 mm (+1.00 mm oversize). Engineered for 2-stroke applications, the piston offers exceptional heat management, structural stability, and wear resistance. The elliptical design ensures uniform pressure distribution during heat expansion, minimising the risk of piston failure. Made in Germany to exacting quality standards.

Features

• Forged piston for superior strength and long service life

• Optimised for efficient combustion heat dissipation

• Elliptical design improves load distribution and reduces localised stress

• German-made for high precision and reliability

Specifications

• Bore Size: 57.00 mm

• Piston Diameter: 56.94 mm

• Engine Displacement: 125 cm³

• Stroke: 50.60 mm

• Clearance: 0.06 mm

• Compression Height: 29.50 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference Wossner Part Numbers

• Piston Kit: 8108D100

• Lock: CW16

• Pin: WP036

• Ring Set: RSB5700

• Rod: P2033

Vehicle Fitments

• Kawasaki KX125 (1991)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
