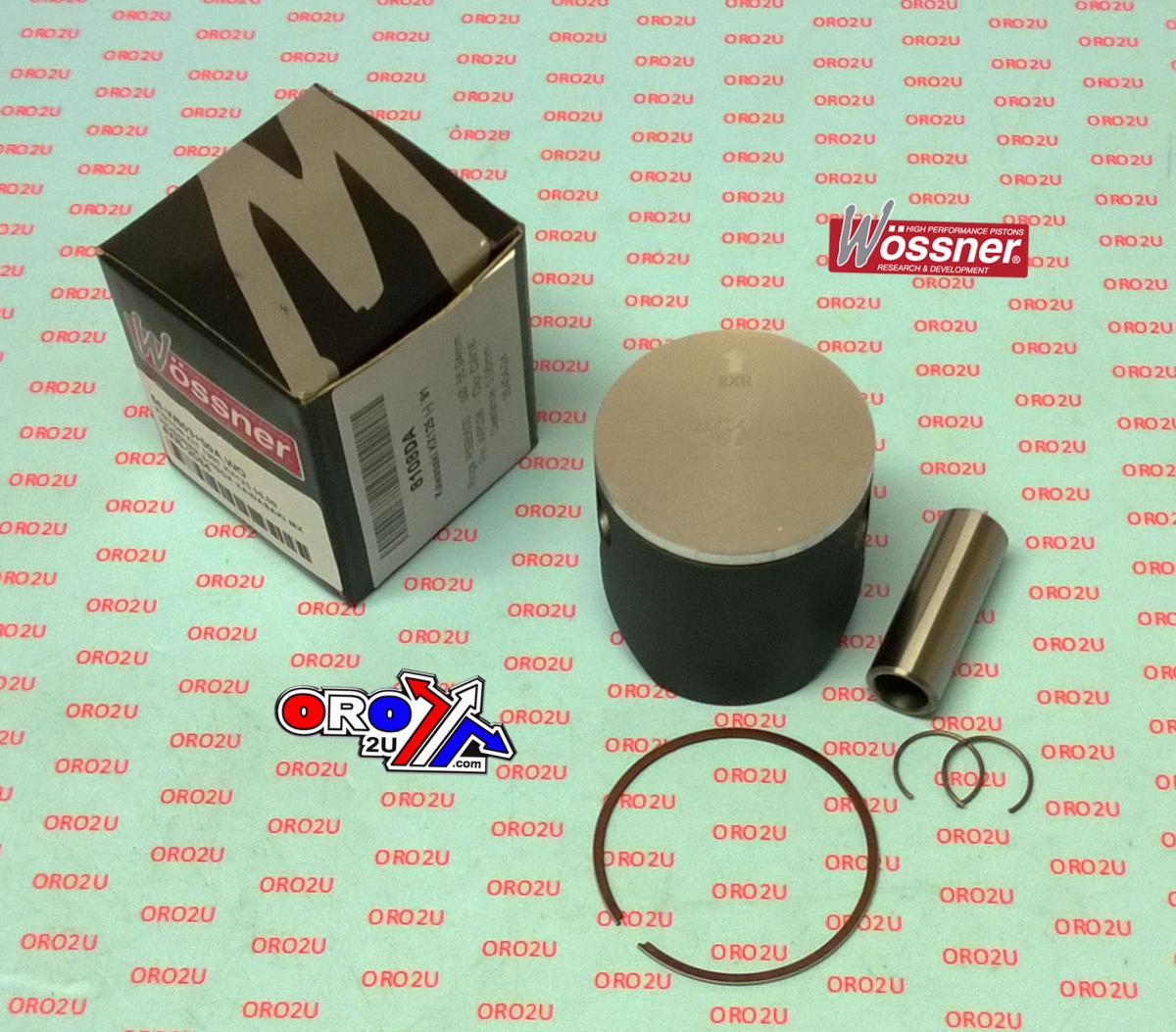

Wossner Forged Piston Kit 56.00mm Bore – Kawasaki KX125 (1991)
This Wossner forged piston kit is designed for the 1991 Kawasaki KX125, featuring a standard 56.00 mm bore and a piston diameter of 55.94 mm. Precision-forged and engineered for 2-stroke performance, the piston delivers efficient heat transfer and mechanical durability. Its elliptical profile ensures even distribution of thrust loads under thermal expansion, reducing stress and enhancing reliability. Made in Germany for consistent quality.

Features

• Forged construction for superior strength and long-lasting performance

• Engineered for optimal heat dissipation to the cylinder wall

• Elliptical piston design for balanced load distribution and minimised wear

• Precision-made in Germany

Specifications

• Bore Size: 56.00 mm

• Piston Diameter: 55.94 mm

• Engine Displacement: 125 cm³

• Stroke: 50.60 mm

• Clearance: 0.06 mm

• Compression Height: 29.50 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

• 13001-1341

• 603M05600

Cross-Reference Wossner Part Numbers

• Piston Kit: 8108DA

• Lock: CW16

• Pin: WP036

• Ring Set: RSB5600

• Rod: P2033

Vehicle Fitments

• Kawasaki KX125 (1991)
