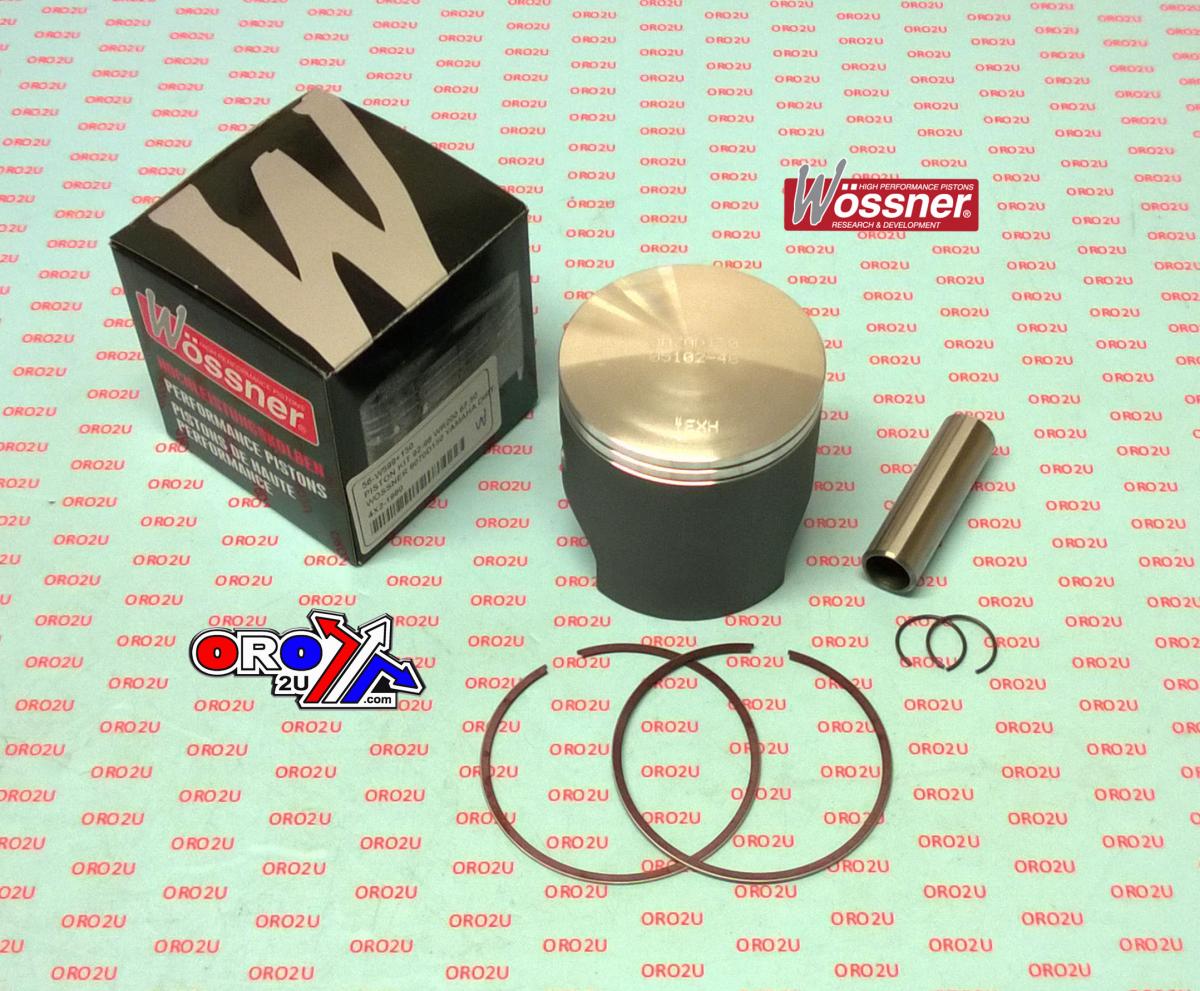

WOSSNER 66mm PISTON KIT YAMAHA DT200 1988-1991, WR200 1992-1998

Piston kit 66mm Bore 65.94 Wossner 8070DA (STD)

YAMAHA
DT200R 1988 - 1991,
WR200 1992 - 1998,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W599+000
Yamaha DT200R/WR200 Wossner Piston 66 mm Bore (PN# 8070DA)
Lock P/N CW16
Pin P/N WP027
Ring Set P/N RSB6600 X 2

Display (cm3) 195
Hub stroke (mm) 57.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 29.90
Theorectical weight (G)

3ET-11631-02-95
Piston: 2XJ-11631-01-97
Piston Rings: 3JM-11601-00-00
Bearing: 93310-316D6-00
Wristpin: 4L0-11633-00-00
Circlips: 93450-17044-00

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
