WOSSNER 67mm PISTON KIT KAWASAKI KDX200 1986-2006

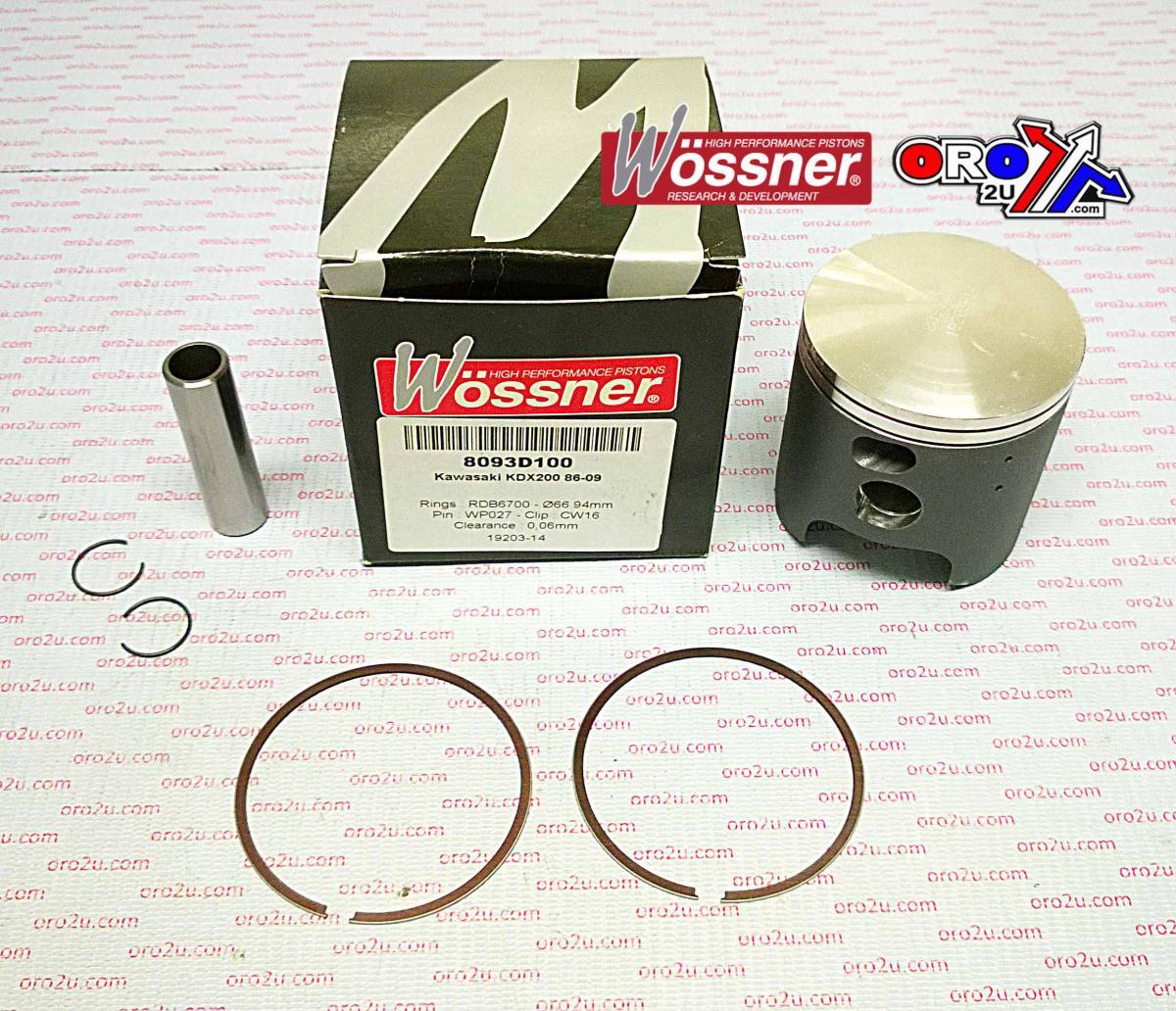

Wossner Forged Piston Kit 67.00mm Bore – Kawasaki KDX200 (1986–2006)
This Wossner forged piston kit is designed for Kawasaki KDX200 models from 1986 to 2006, featuring a 67.00 mm bore and a piston diameter of 66.94 mm (+1.00 mm oversize). Engineered for high-performance 2-stroke applications, the piston’s elliptical design and precision forging ensure optimal heat transfer, uniform load distribution, and enhanced resistance to thermal stress. Made in Germany for accuracy and durability.

Features

• Forged piston construction for superior strength

• Efficient combustion heat dissipation to cylinder walls

• Elliptical design supports even thrust load distribution and minimises pressure points

• Precision manufactured in Germany

Specifications

• Bore Size: 67.00 mm

• Piston Diameter: 66.94 mm

• Engine Displacement: 198 cm³

• Stroke: 58.00 mm

• Clearance: 0.06 mm

• Compression Height: 32.00 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference Wossner Part Numbers

• Piston Kit: 8093D100

• Lock: CW16

• Pin: WP027

• Ring Set: RSB6700 x 2

• Rod: P2033

Vehicle Fitments

• 1986 Kawasaki KDX 200

• 1987 Kawasaki KDX 200

• 1988 Kawasaki KDX 200

• 1989 Kawasaki KDX 200

• 1990 Kawasaki KDX 200

• 1991 Kawasaki KDX 200

• 1992 Kawasaki KDX 200

• 1993 Kawasaki KDX 200

• 1994 Kawasaki KDX 200

• 1995 Kawasaki KDX 200

• 1996 Kawasaki KDX 200

• 1997 Kawasaki KDX 200

• 1998 Kawasaki KDX 200

• 1998 Kawasaki KDX 220

• 1999 Kawasaki KDX 200

• 2000–2006 Kawasaki KDX 200

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
