WOSSNER 66mm PISTON KIT KAWASAKI KDX200 1986-2006

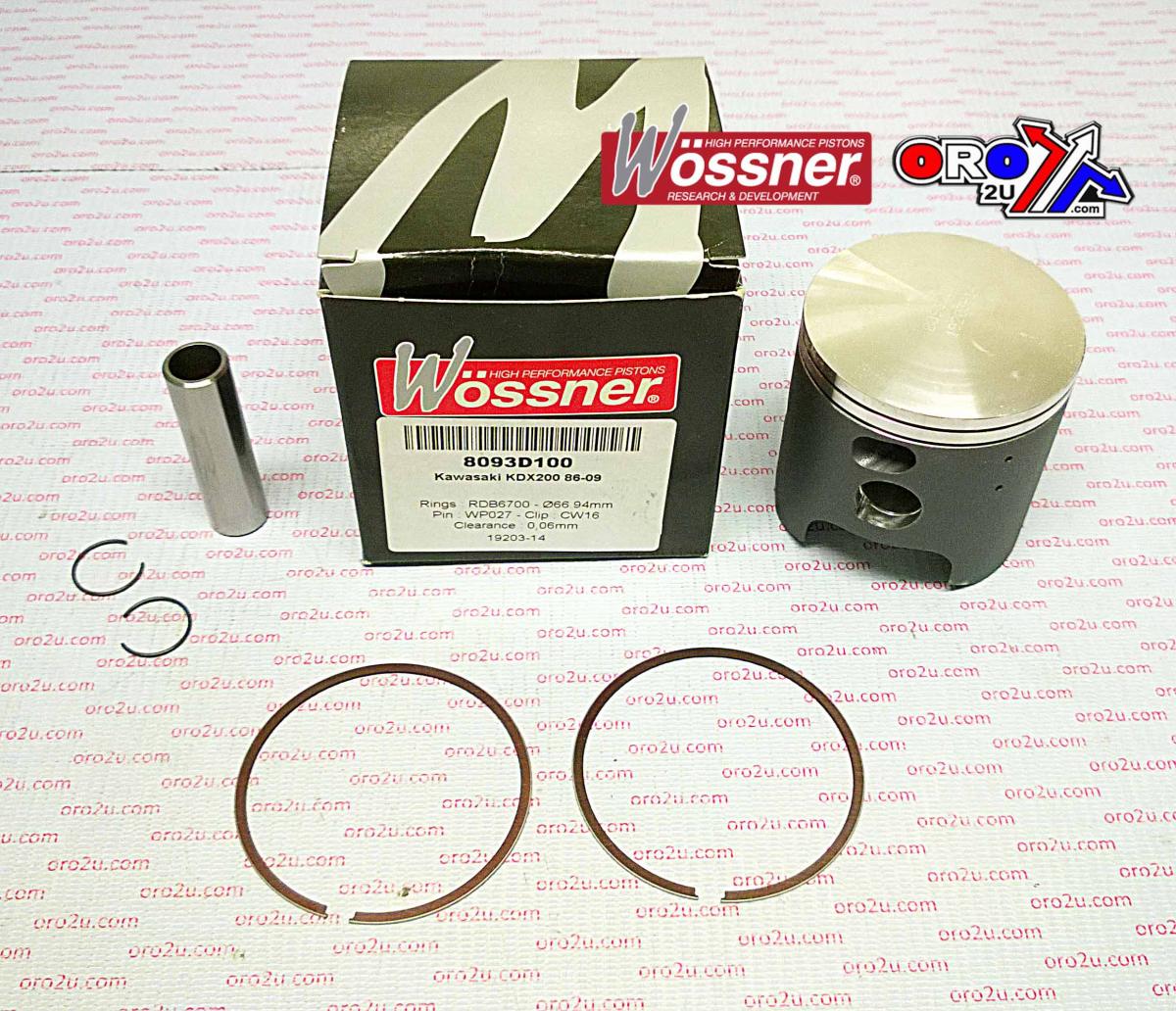

Wossner Forged Piston Kit 66.00mm Bore – Kawasaki KDX200 (1986–2006)
This Wossner forged piston kit is manufactured for Kawasaki KDX200 models produced from 1986 to 2006. With a standard bore of 66.00 mm and a piston diameter of 65.94 mm, this kit delivers durability and performance in demanding 2-stroke engine conditions. The forged aluminium construction and elliptical design allow for superior heat transfer and even load distribution. Made in Germany for precision and reliability.

Features

• Forged aluminium piston for increased strength

• High-efficiency combustion heat dissipation to cylinder walls

• Elliptical geometry for consistent thrust load distribution and reduced stress

• Precision-manufactured in Germany

Specifications

• Bore Size: 66.00 mm

• Piston Diameter: 65.94 mm

• Engine Displacement: 198 cm³

• Stroke: 58.00 mm

• Clearance: 0.06 mm

• Compression Height: 32.00 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

• 13001-1219

• 09104822

• 711M06600

Cross-Reference Wossner Part Numbers

• Piston Kit: 8093DA

• Lock: CW16

• Pin: WP027

• Ring Set: RSB6600 x 2

• Rod: P2033

Vehicle Fitments

• 1986 Kawasaki KDX 200

• 1987 Kawasaki KDX 200

• 1988 Kawasaki KDX 200

• 1989 Kawasaki KDX 200

• 1990 Kawasaki KDX 200

• 1991 Kawasaki KDX 200

• 1992 Kawasaki KDX 200

• 1993 Kawasaki KDX 200

• 1994 Kawasaki KDX 200

• 1995 Kawasaki KDX 200

• 1996 Kawasaki KDX 200

• 1997 Kawasaki KDX 200

• 1998 Kawasaki KDX 200

• 1998 Kawasaki KDX 220

• 1999 Kawasaki KDX 200

• 2000–2006 Kawasaki KDX 200

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
