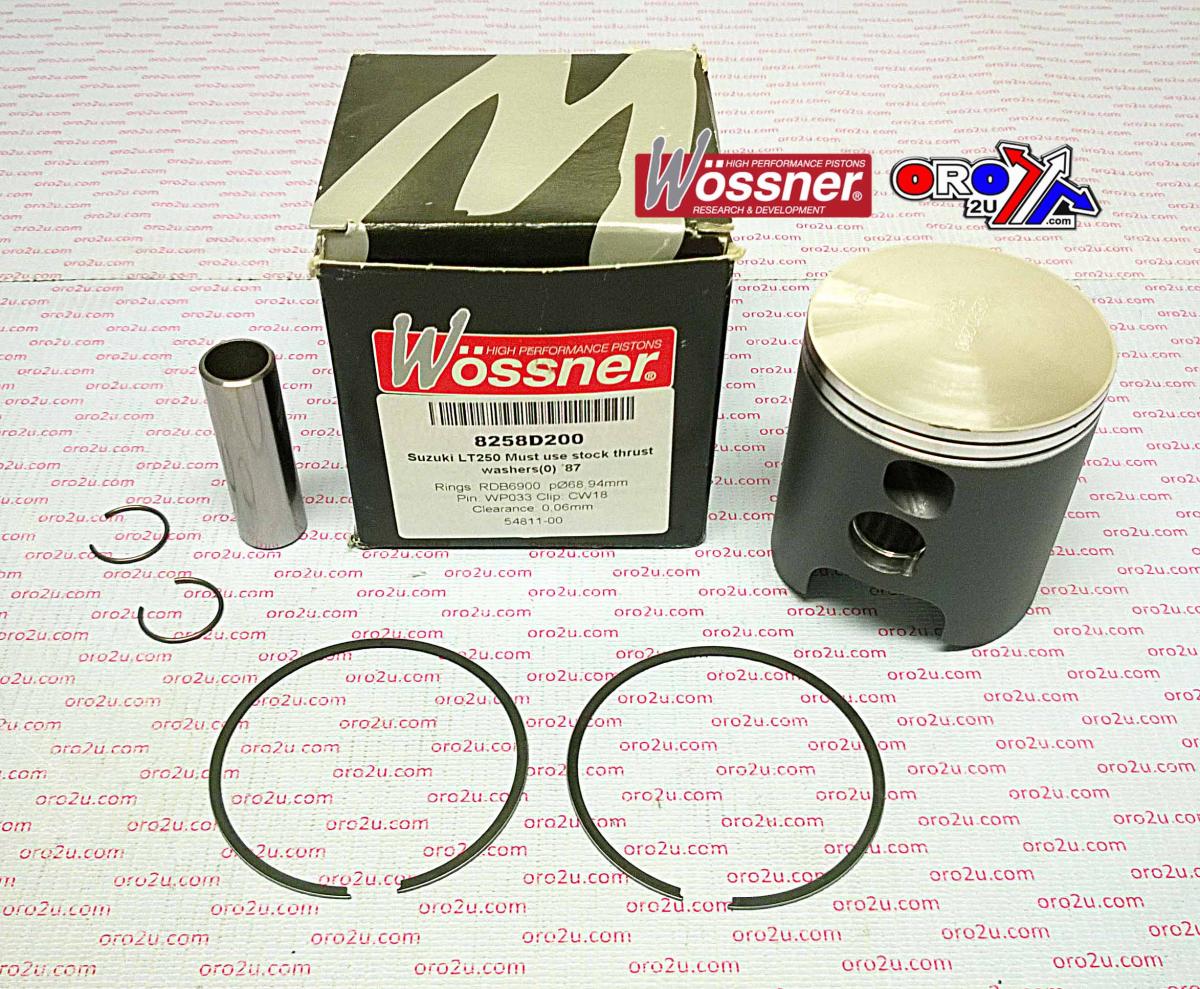

WOSSNER 69mm PISTON KIT SUZUKI LT250R 1987

Wossner Forged Piston Kit 69.00mm Bore – Suzuki LT250 1987 (8258D200 +2.00)
This Wossner forged piston kit, featuring a +2.00mm oversize bore (actual 68.94mm), is designed for the 1987 Suzuki LT250 ATV. Built for 2-stroke engines, the forged construction ensures excellent strength and durability. The elliptical piston design improves load distribution under thermal expansion, minimising stress and reducing the likelihood of piston collapse. Precision manufacturing in Germany guarantees consistent quality and performance.

Features

• Forged piston construction for high durability and resistance to stress

• Designed to facilitate effective heat transfer from the combustion chamber

• Elliptical profile for even distribution of thrust loads during expansion

• Optimised for 2-stroke engine operation

• Made in Germany

Specifications

• Bore Size: 69.00mm (+2.00 oversize)

• Actual Bore: 68.94mm

• Compression Height: 37.20mm

• Clearance: 0.06mm

• Stroke: 70.00mm

• Displacement: 246 cm³

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

• Wossner Piston: 8258D200

• Ring Set: RSB6900 (x2)

• Lock: CW18

• Pin: WP033

• Internal Reference: 56-W577+2.00.WO

Vehicle Fitments

• 1987 Suzuki LT250
