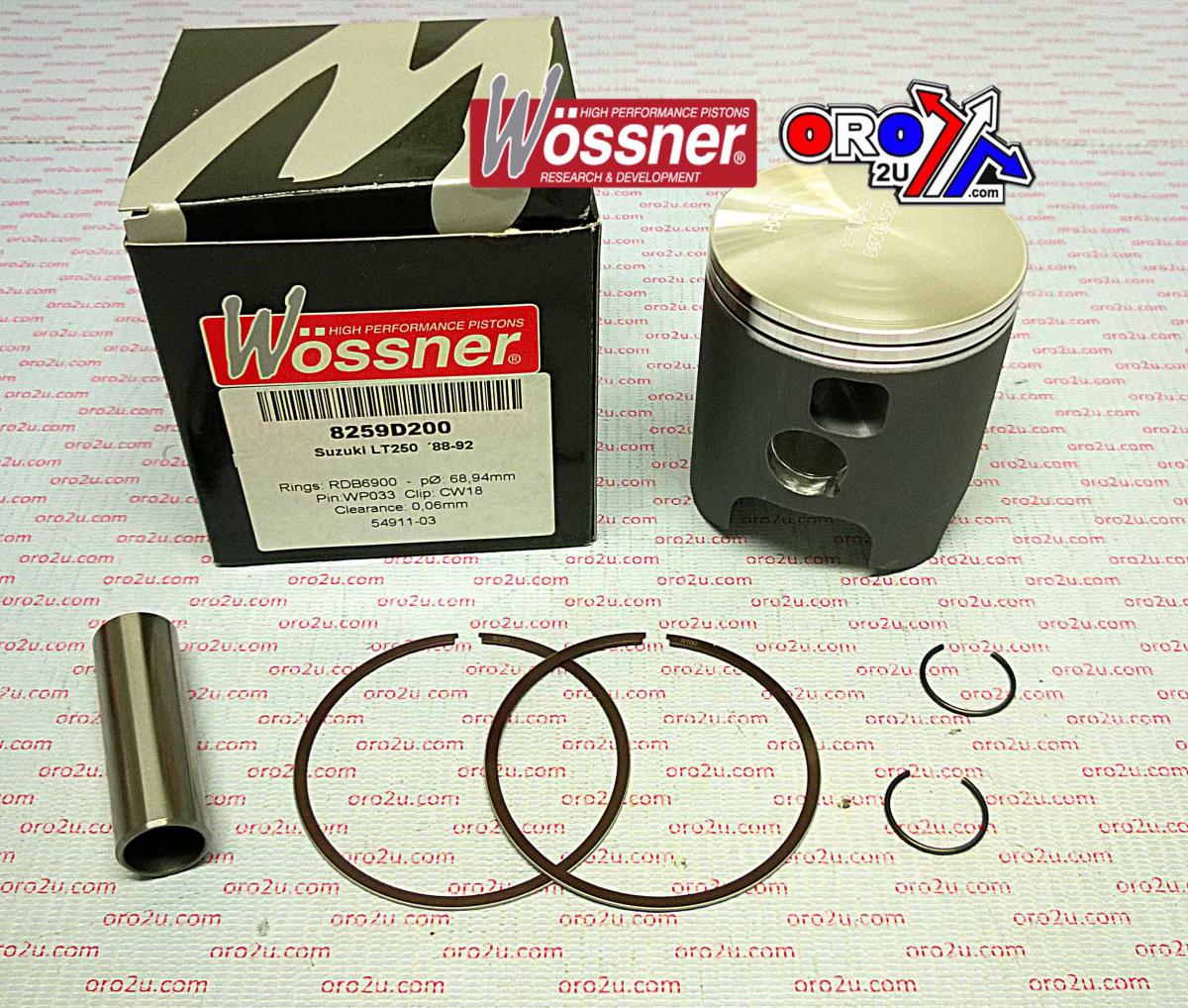

WOSSNER 67mm PISTON KIT SUZUKI LT250R 1988-1992

The Wossner 8259DA piston kit is designed for Suzuki LT250 ATV models from 1988 to 1992, featuring a standard 67.00 mm bore. This forged piston, made in Germany, is engineered for durability and efficient heat transfer. Its elliptical design promotes uniform load distribution during heat expansion, reducing localised pressure and minimising the risk of piston collapse. The kit includes all key components required for dependable engine performance.

Features

• Forged construction for enhanced strength and thermal reliability

• Efficient heat transfer from combustion chamber to cylinder wall

• Elliptical design provides uniform thrust load distribution under thermal expansion

• Minimises localised pressure points and risk of piston collapse

• Manufactured in Germany for precision and consistency

Specifications

• Bore Size: 67.00 mm

• Actual Bore Diameter: 66.94 mm

• Stroke: 70.00 mm

• Display Displacement: 246 cm³

• Clearance: 0.06 mm

• Compression Ratio (Wossner and OEM): 2-stroke

• Compression Height: 37.20 mm

Cross-Reference Wossner Part Numbers

• Piston Kit: 8259DA

• Lock: CW18

• Pin: WP033

• Ring Set: RSB6700 (Quantity: 2)

• Part No.: 56-W571+0.00.WO

Vehicle Fitments

• Suzuki LT250 (1988–1992)
