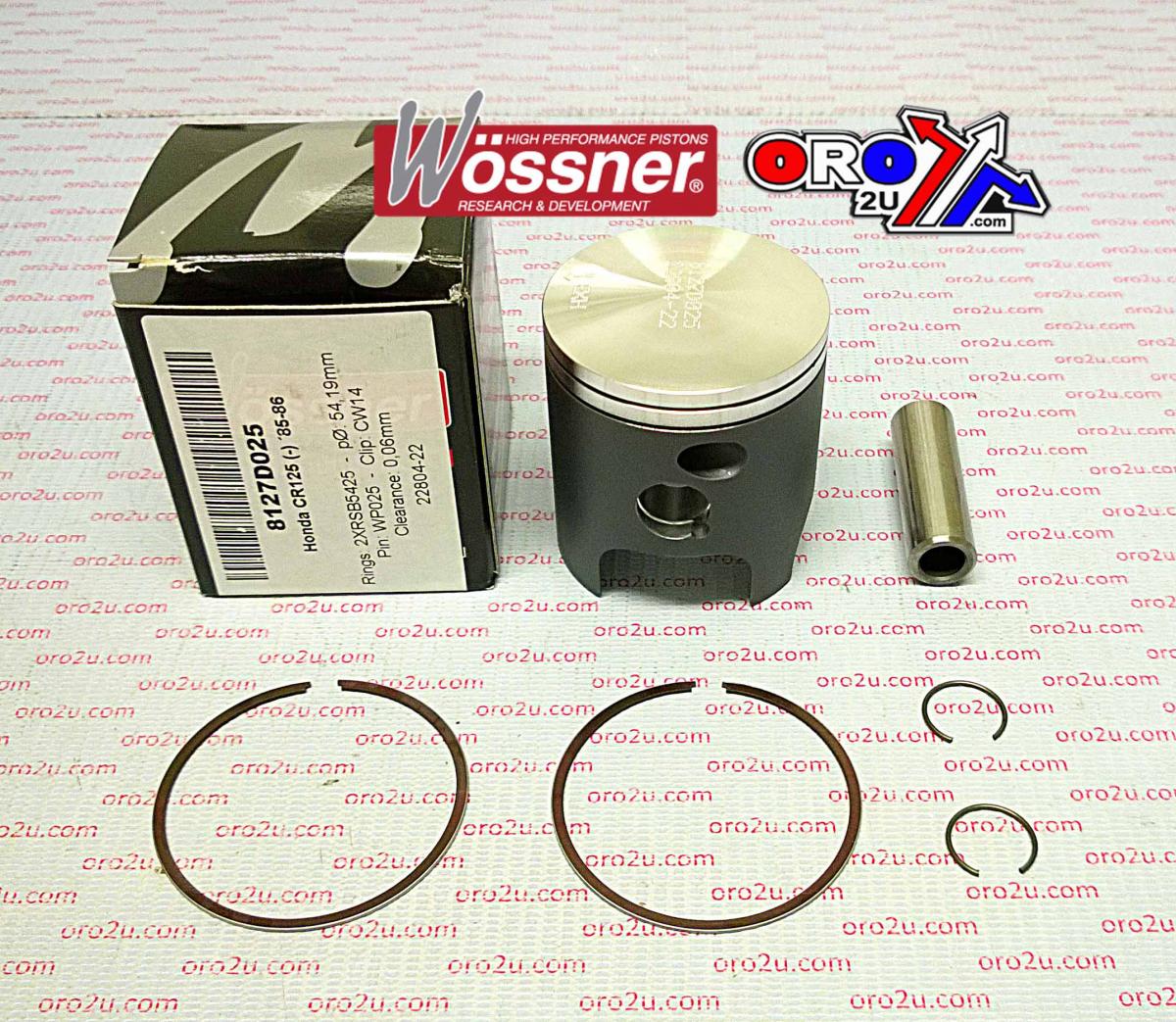

WOSSNER 55.25mm PISTON KIT HONDA CR125 1985-1986

The Wossner 8127D125 piston kit is designed for high-performance applications in Honda CR125 models from 1985 to 1986. Manufactured in Germany using forged materials, it offers exceptional strength and thermal efficiency. Its elliptical design enhances surface bearing under high-temperature expansion, helping to distribute thrust loads uniformly and prevent piston collapse. This piston kit includes all the required components for reliable installation and optimal engine performance.

Features

• Forged construction for superior strength and durability

• Efficient heat transfer from combustion chamber to cylinder walls

• Elliptical profile ensures uniform load distribution

• Reduces risk of piston collapse under thermal stress

• Manufactured in Germany

Specifications

• Bore Size: 55.25 mm

• Actual Bore Diameter: 55.19 mm

• Stroke: 54.00 mm

• Display Displacement: 124 cm³

• Clearance: 0.06 mm

• Compression Ratio (Wossner and OEM): 2-stroke

• Compression Height: 28.00 mm

Cross-Reference OEM Part Numbers

• Piston Kit: 8127D125

• Lock: CW14

• Pin: WP025

• Ring Set: RSB5525 (Quantity: 2)

• Part No.: 56-W563+125.WO

Vehicle Fitments

• Honda CR125 (1985–1986)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
