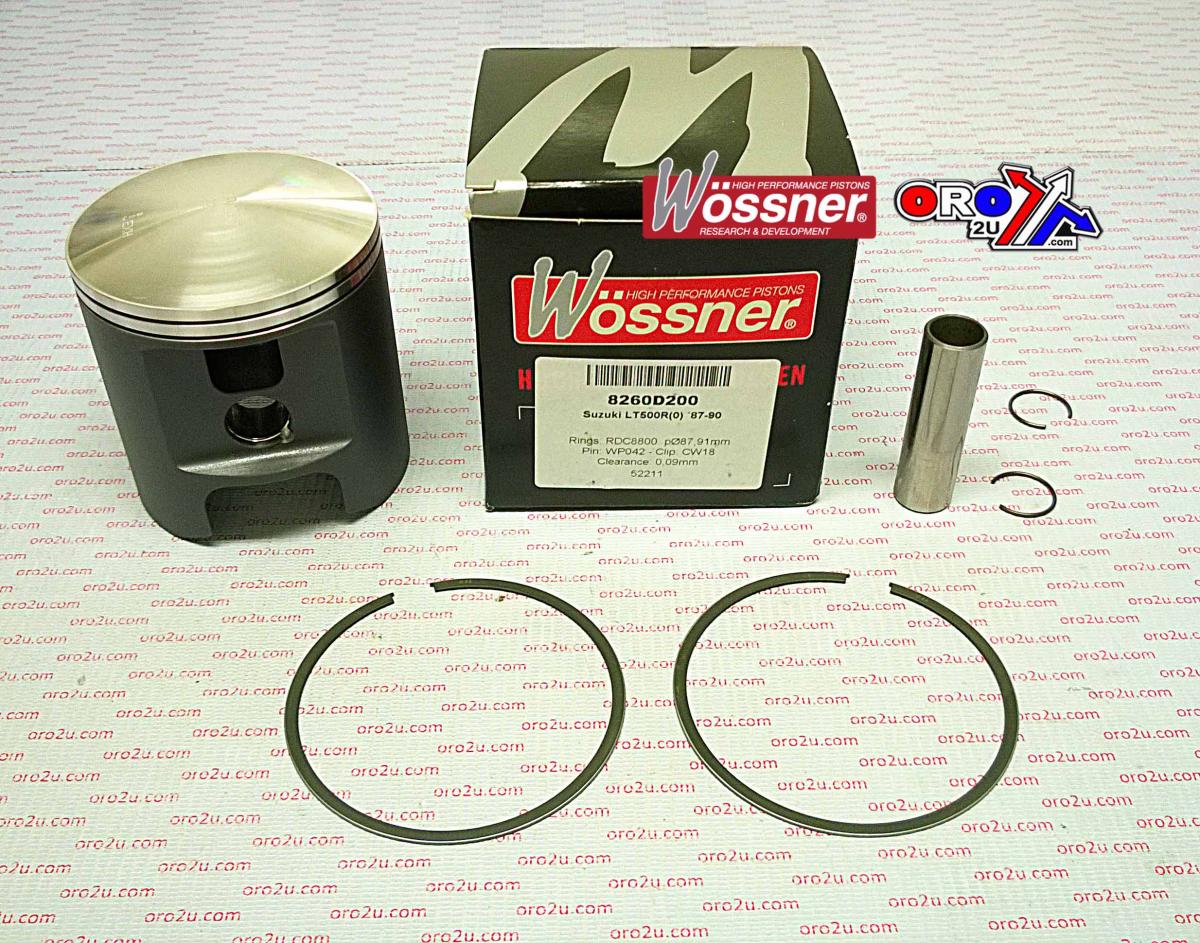

WOSSNER 88mm PISTON KIT SUZUKI LT500R 1987-1990, Pro-Lite

Wossner forged piston kit for the Suzuki LT500R ATV (1987–1990), featuring a +2.00 mm oversize bore at 88.00 mm. This piston is precision-forged for high-strength, reliable performance in demanding 2-stroke applications. Its elliptical design improves load distribution and reduces localised stress under thermal expansion, helping to maintain structural integrity under intense operating conditions. Made in Germany to exacting standards.

Features

• Forged construction for superior durability and strength

• Designed for optimal heat dissipation from combustion chamber to cylinder walls

• Elliptical piston profile reduces localised pressure and improves thrust load distribution

• Suited for high-performance 2-stroke engines

• Manufactured in Germany

Specifications

• Bore: 88.00 mm

• Actual Bore Diameter: 87.91 mm

• Compression Height: 45.00 mm

• Display Volume: 498 cm³

• Stroke: 86.00 mm

• Clearance: 0.09 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

• Piston Kit Part No.: 8260D200

• Lock P/N: CW18

• Ring Set P/N: RSC8800 (x2)

• Alternate Part No.: 56-W561+2.00.WO

Vehicle Fitments

• Suzuki LT500R (1987–1990)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
