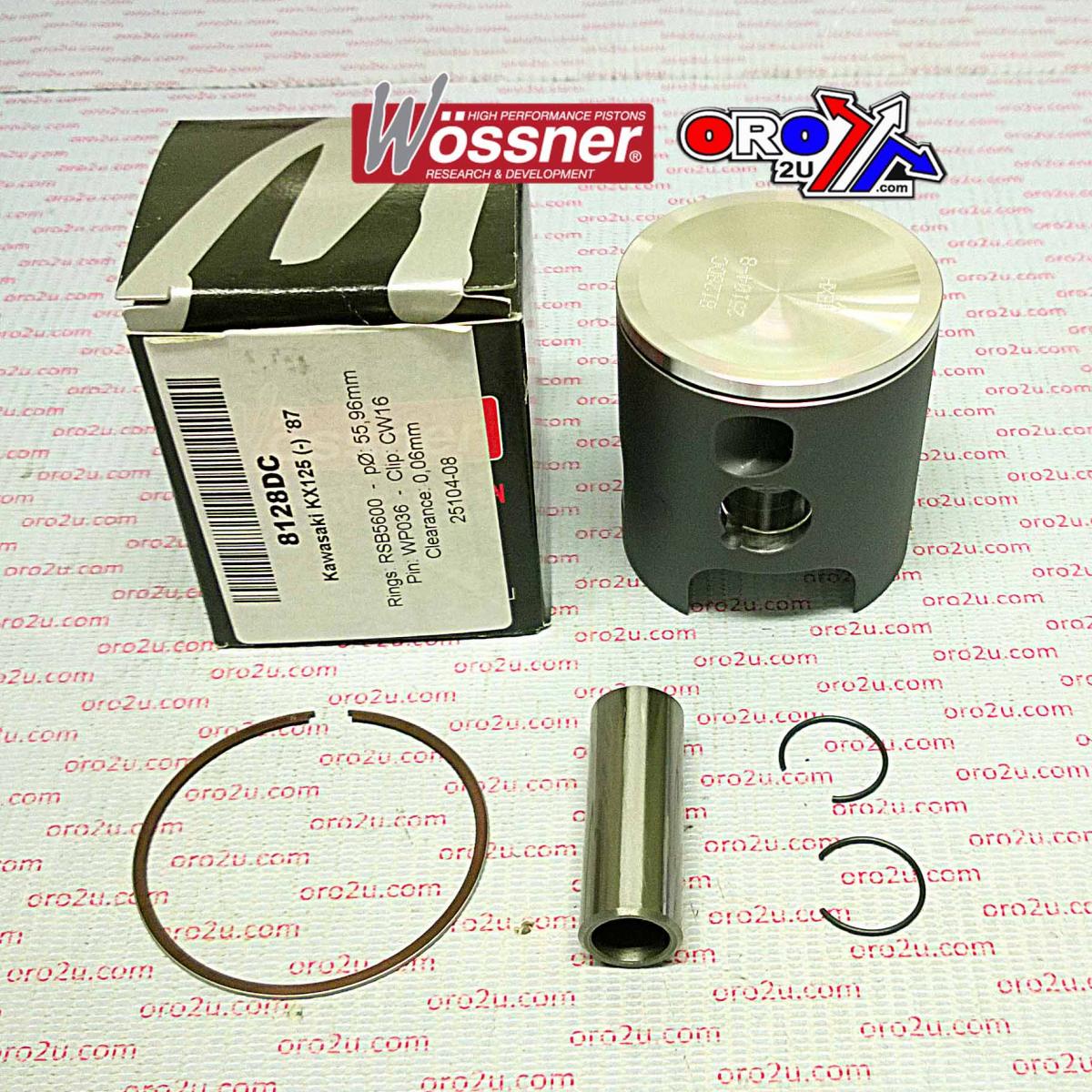

WOSSNER 58mm PISTON KIT A, KAWASAKI KX125 1987

This Wossner 58.00mm (+2.00 oversize) forged piston kit is specifically designed for the Kawasaki KX125 1987 model. Built for performance and reliability, it features a forged construction and elliptical design that improves thermal expansion behaviour and distributes mechanical loads more evenly. Manufactured in Germany, the piston aids in efficient heat dissipation from the combustion chamber to the cylinder walls.

Features

• Forged piston for enhanced strength and durability

• Elliptical design promotes even bearing surface during heat expansion

• Distributes thrust loads to minimise localised stress and prevent piston collapse

• Engineered for efficient heat transfer from combustion chamber to cylinder walls

• Manufactured in Germany

Specifications

• Bore: 58.00mm

• Actual diameter: 57.94mm

• Displacement: 125 cm³

• Stroke: 50.60mm

• Clearance: 0.06mm

• Compression height: 29.50mm

• Compression ratio: 2-stroke

Cross-Reference OEM Part Numbers

• Piston Kit Part No.: 56-W555+200.WO

• Lock: CW16

• Pin: WP036

• Ring Set: RSB5800

• Connecting Rod: P2037

Vehicle Fitments

• Kawasaki KX125 1987

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
