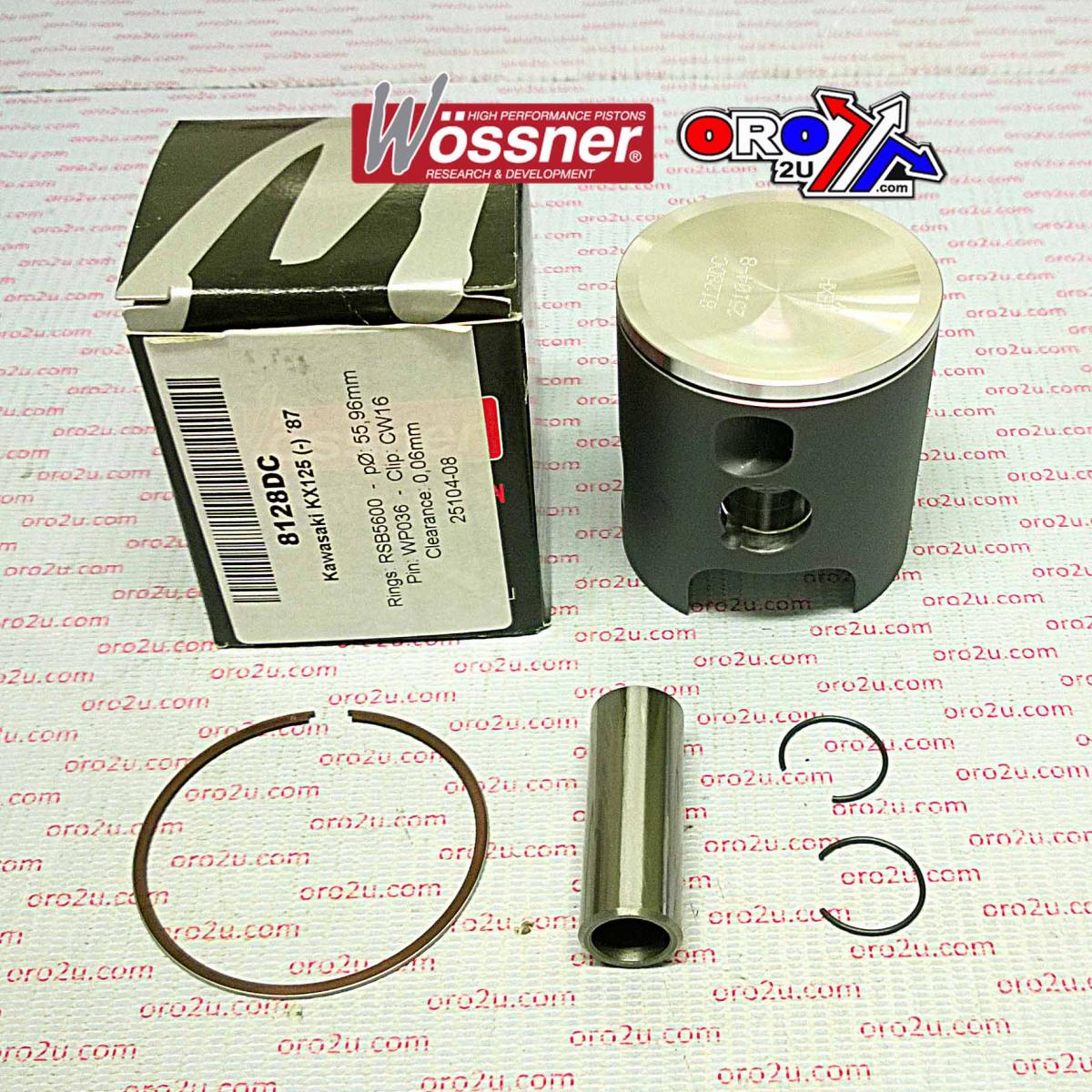

WOSSNER 56mm PISTON KIT A, KAWASAKI KX125 1987

This Wossner piston kit features a 56.00mm bore size (55.94mm actual) and is designed for the 1987 Kawasaki KX125. Forged in Germany for durability and thermal performance, the piston utilises an elliptical design to distribute thrust loads evenly under thermal expansion, reducing localised stress and preventing piston collapse.

Features

• Forged construction for high strength and reliability

• Elliptical design ensures uniform load distribution during heat expansion

• Optimized for efficient heat transfer from combustion chamber to cylinder walls

• Manufactured in Germany

Specifications

• Bore Size: 56.00mm (55.94mm)

• Display: 125 cm³

• Stroke: 50.60 mm

• Clearance: 0.06 mm

• Compression Height: 29.50 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

• Piston Kit: 8128DA

• Lock: CW16

• Pin: WP036

• Ring Set: RSB5600

• Connecting Rod: P2037

• Part No.: 56-W555+00A.WO

• 13001-1220

• 555M05600

Vehicle Fitments

• Kawasaki KX125 1987

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
