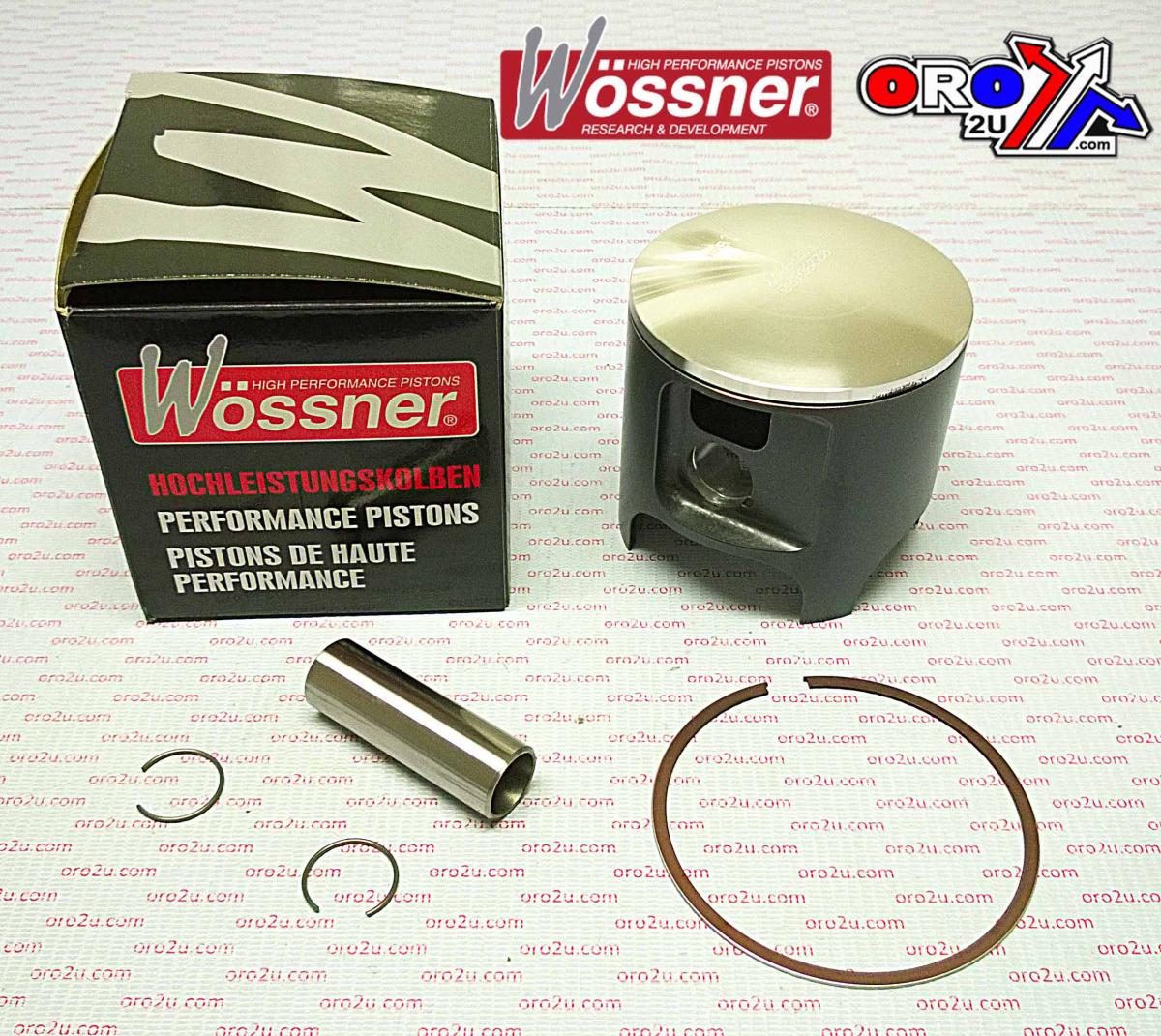

PISTON KIT 84-89 CR500 89.50 WOSSNER 8229D050 HONDA MX

This Wossner piston kit features an 89.50mm bore size (89.42mm actual) and is designed for Honda CR500 (1984–2001) and CR480 (1982–1983) models. Forged in Germany for high strength and performance, the piston incorporates an elliptical design that evenly distributes thrust loads under thermal expansion, reducing localised stress and preventing piston collapse.

Features

• Forged construction for high durability

• Elliptical design ensures even load distribution under heat expansion

• Optimised for efficient heat transfer from combustion chamber to cylinder walls

• Manufactured in Germany

Specifications

• Bore Size: 89.50mm (89.42mm)

• Display: 500 cm³

• Stroke: 79.00 mm

• Clearance: 0.08 mm

• Compression Height: 40.00 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

• Dome Volume: Not specified

• Theoretical Weight: Not specified

Cross-Reference OEM Part Numbers

• Piston Kit: 8229D050

• Lock: CW20

• Pin: WP086

• Ring Set: RSC8950

• Connecting Rod: P2044

• Part No.: 56-W554+050.WO

Vehicle Fitments

• Honda CR500 1984–2001

• Honda CR480 1982–1983
