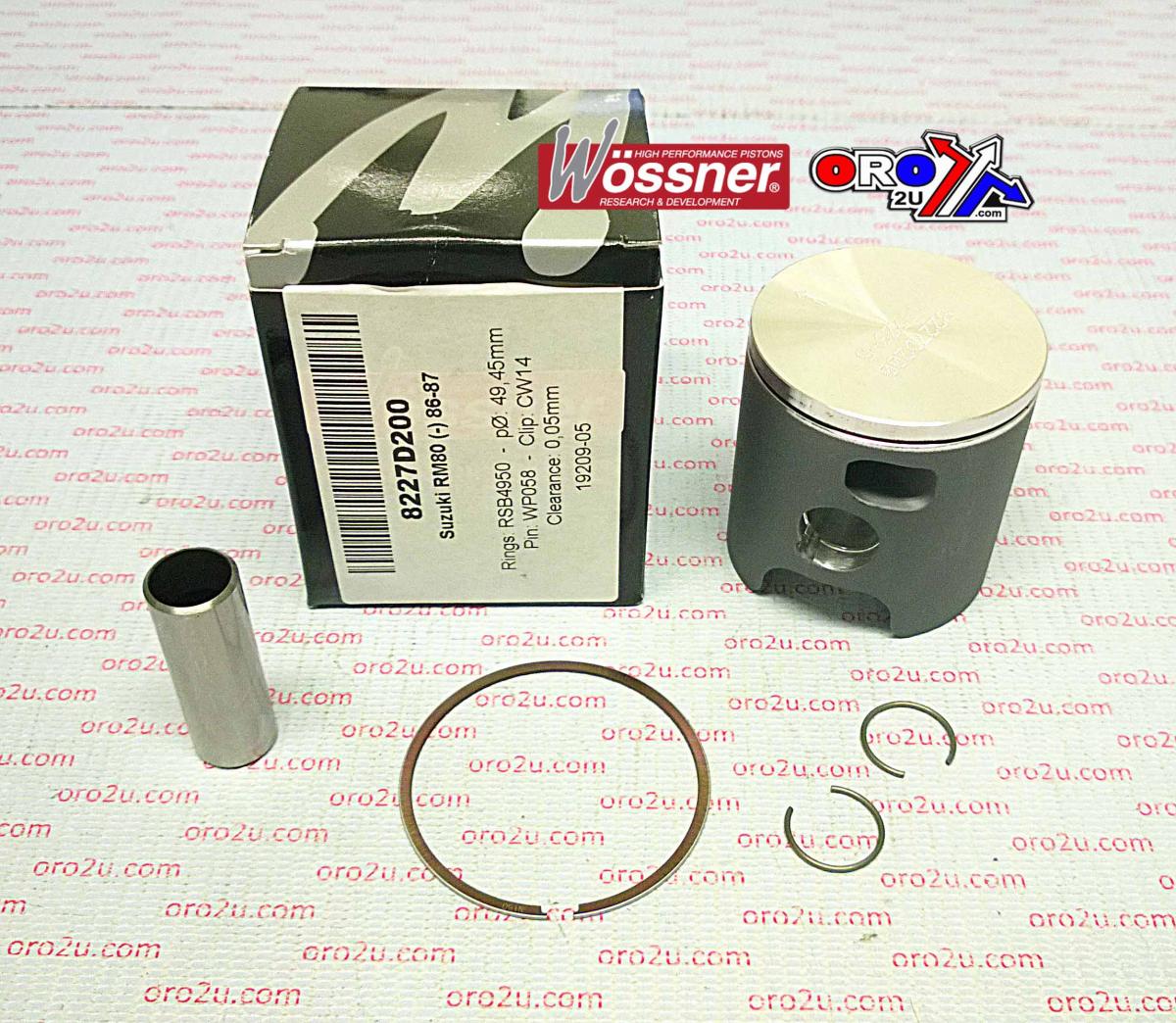

PISTON KIT 86-87 RM80 49.50 WOSSNER 8227D200 SUZUKI MX

This Wossner piston kit features a 49.50mm bore size (49.45mm actual) and is compatible with Suzuki RM80 models from 1986 to 1987. Forged in Germany for high performance and reliability, the piston incorporates an elliptical design to ensure even distribution of thrust loads under thermal expansion, minimising localised stress and reducing the risk of piston collapse.

Features

• Forged construction for increased structural integrity

• Elliptical design promotes uniform load distribution during operation

• Optimised heat transfer from combustion chamber to cylinder walls

• Made in Germany

Specifications

• Bore Size: 49.50mm (49.45mm)

• Display: 80 cm³

• Stroke: 46.80 mm

• Clearance: 0.05 mm

• Compression Height: 27.00 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

• Piston Kit: 8227D200

• Lock: CW14

• Pin: WP058

• Ring Set: RSB4950

• Part No.: 56-W542+200.WO

Vehicle Fitments

• Suzuki RM80 1986

• Suzuki RM80 1987

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
