WISECO 64mm PISTON KIT A, YAMAHA YFZ350 BANSHEE 87-07, RD350 LC/YPVS 80-92

The Wiseco Pro-Lite piston assembly with a 64.00mm bore (513M06400) is designed for various Yamaha 2-stroke models including the YFZ350 Banshee (1987–2007), RD350 LC - YPVS (1980–1987), RD350 AC (1950–2014), and RZ350 (1982–1990). Built for liquid-cooled engines, this piston emphasizes durability, longevity, and performance, with a forging design and lightweight components that contribute to improved throttle response and increased horsepower.

Features

• Pro-Lite forged piston for high strength and durability

• Designed for liquid-cooled 2-stroke engines

• Innovative forging and skirt design for optimal power output

• Lightweight wrist pin supports faster revs and throttle response

• Top-end bearing available separately (Part No. B1005)

Specifications

• Bore size: 64.00mm

• Engine type: Liquid-cooled 2-stroke

• Piston type: Forged

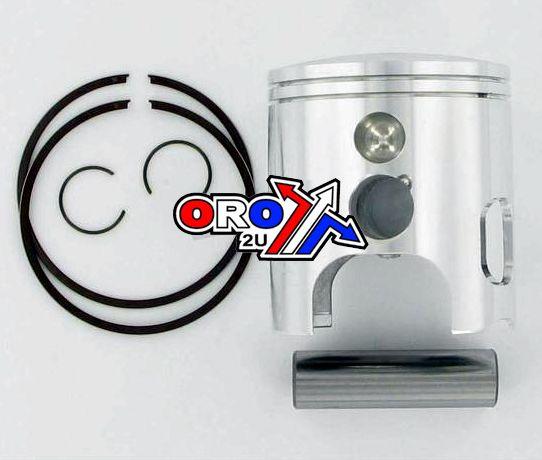

• Included components: One piston, two rings (2520CD), two circlips (CW16), one wrist pin (S486)

Cross-Reference OEM Part Numbers

• Piston: 513M06400

• Rings: 2520CD x 2

• Circlips: CW16 x 2

• Wrist Pin: S486

Vehicle Fitments

• Yamaha YFZ350 Banshee 1987–2007 (including Limited, Special, and 50th Anniversary Editions)

• Yamaha RD350 LC - YPVS 1980–1987

• Yamaha RD350 AC 1950–2014

• Yamaha RZ350 1982–1990

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
