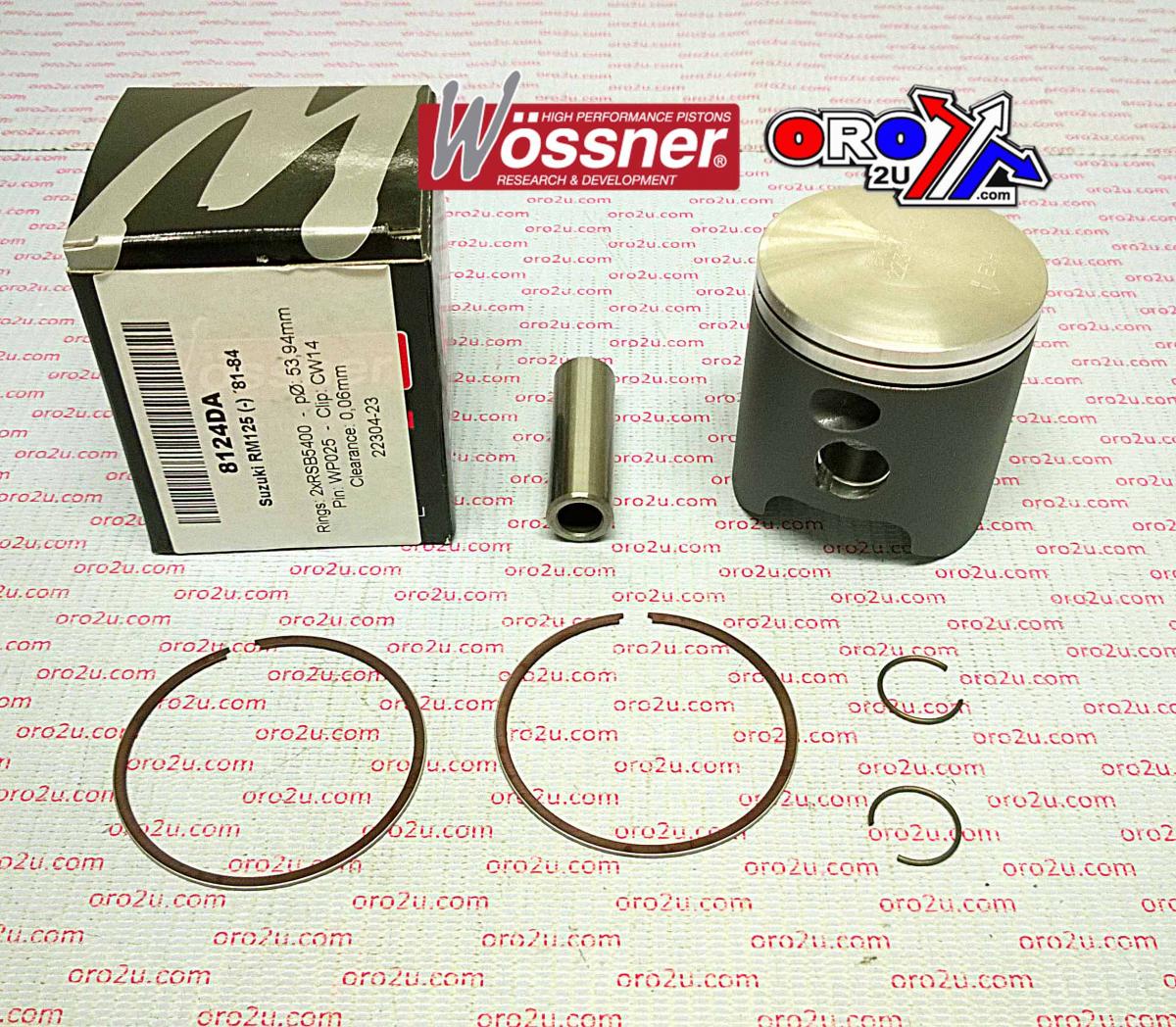

WOSSNER 56mm PISTON KIT SUZUKI RM125 1981-1984

This Wossner forged piston kit with a 56.00mm bore (55.94mm) is intended for Suzuki RM125 models from 1981 to 1984. Precision-engineered in Germany, the piston enhances structural durability and thermal conductivity. The elliptical shape ensures uniform pressure distribution during heat expansion, helping prevent piston collapse under performance conditions.

Features

• Forged piston construction for maximum strength and reliability

• Optimized for effective combustion heat dissipation to cylinder walls

• Elliptical design for consistent bearing surface and reduced localized pressure

• Manufactured in Germany

Specifications

• Bore size: 56.00mm (55.94mm)

• Display volume: 123 cm³

• Stroke: 54.00 mm

• Clearance: 0.06 mm

• Compression height: 29.50 mm

• Theoretical weight: Not specified

• Compression ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

• Piston: 8124D200

• Lock: CW14

• Pin: WP025

• Ring Set: RSB5600 x 2

• Connecting Rod Kit: P2040

Vehicle Fitments

• Suzuki RM125 1981

• Suzuki RM125 1982

• Suzuki RM125 1983

• Suzuki RM125 1984

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
