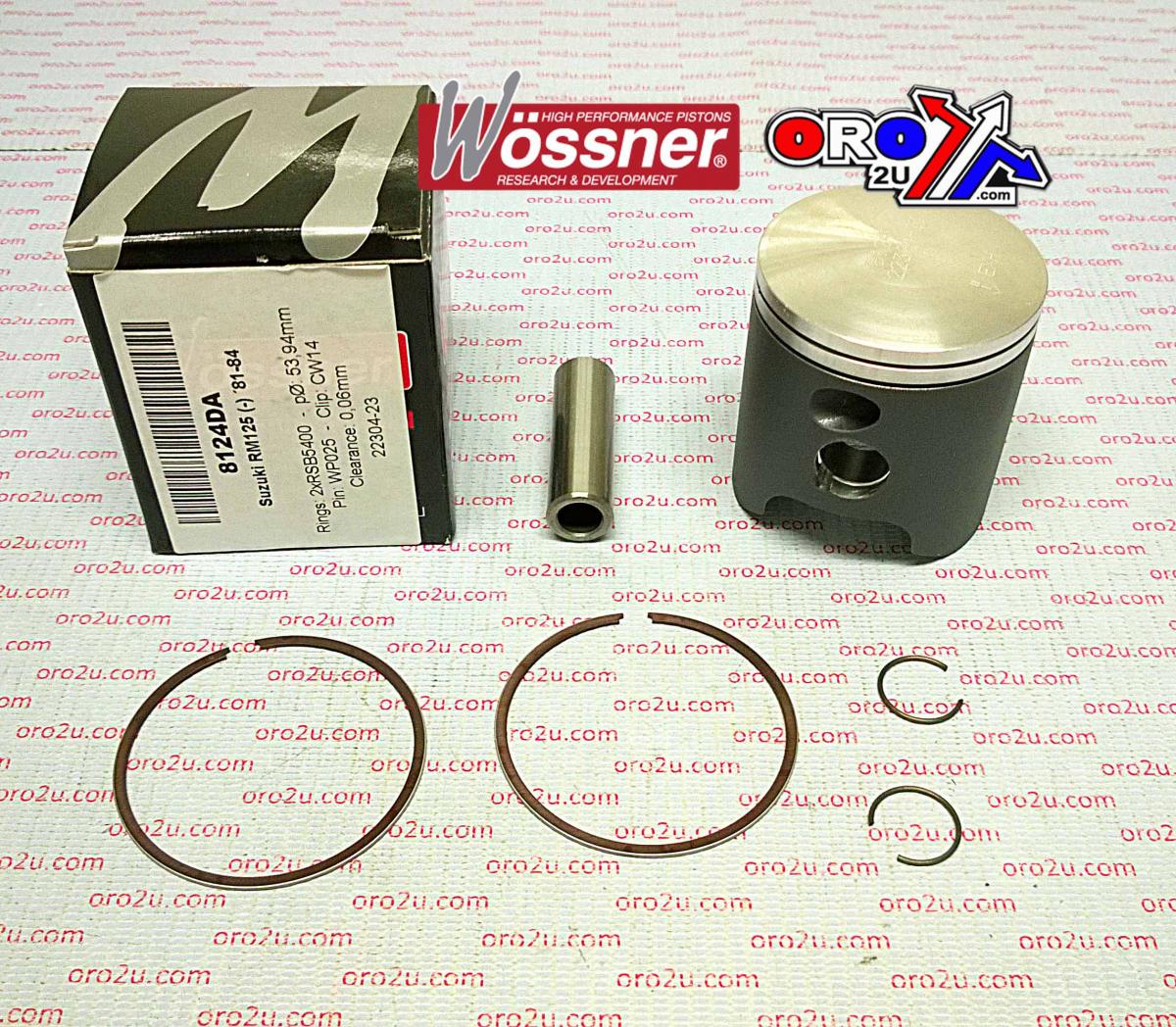

PISTON KIT 81-84 RM125 54.75 WOSSNER 8124D075 SUZUKI

This Wossner forged piston kit with a 54.75mm bore (54.69mm) is designed for Suzuki RM125 models from 1981 to 1984. Manufactured in Germany, it provides enhanced durability and optimized heat transfer. Its elliptical shape ensures a consistent bearing surface during expansion, effectively distributing thrust loads and reducing localized stress to help prevent piston failure.

Features

• Forged piston construction for superior strength

• Designed for efficient combustion heat transfer to cylinder walls

• Elliptical profile ensures uniform expansion and load distribution

• Made in Germany

Specifications

• Bore size: 54.75mm (54.69mm)

• Display volume: 123 cm³

• Stroke: 54.00 mm

• Clearance: 0.06 mm

• Compression height: 29.50 mm

• Theoretical weight: Not specified

• Compression ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

• Piston: 8124D075

• Lock: CW14

• Pin: WP025

• Ring Set: RAB5475 x 2

• Connecting Rod Kit: P2040

Vehicle Fitments

• Suzuki RM125 1981

• Suzuki RM125 1982

• Suzuki RM125 1983

• Suzuki RM125 1984

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
