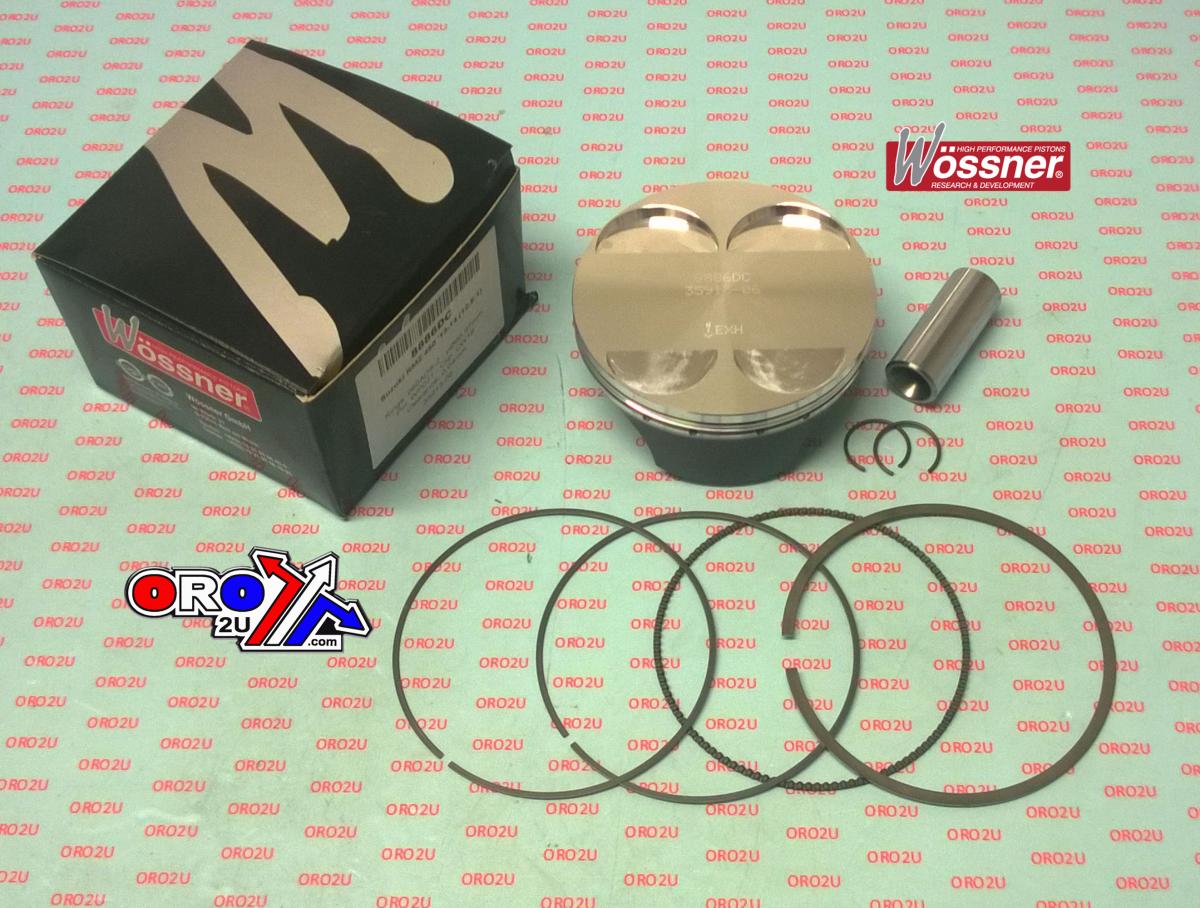

PISTON KIT 13-14 RMZ450 96.00 WOSSNER 8886DA SUZUKI

This Wossner forged piston kit features a standard 95.96mm bore and is specifically designed for Suzuki RM-Z450 models from 2013 to 2017. Built in Germany, the piston is engineered for superior durability, efficient heat transfer, and even load distribution, using an elliptical profile to prevent localized pressure and piston collapse under thermal expansion.

Features

• Forged construction for strength and heat resistance
• Elliptical design ensures even load distribution
• Designed for efficient combustion chamber heat transfer
• Made in Germany
• Direct OEM replacement
• Easy to install; professional installation recommended if unsure

Specifications

• Bore Size: 95.96mm (Standard)
• Displacement: 449cm³
• Stroke: 62.10mm
• Clearance: 0.04mm
• Dome Volume: -1.00cm³
• Compression Ratio: 12.50:1 (OEM)
• Compression Height: 22.90mm

Cross-Reference OEM Part Numbers

• 12111-15A00
• CW19 (Lock)
• WP071 (Pin)
• 960ADS-2 (Ring Set)
• MB83C072C (Main Bearing Right)
• MB830053-4 (Main Bearing Left)

Vehicle Fitments

• RM-Z450 (2013–2017)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
