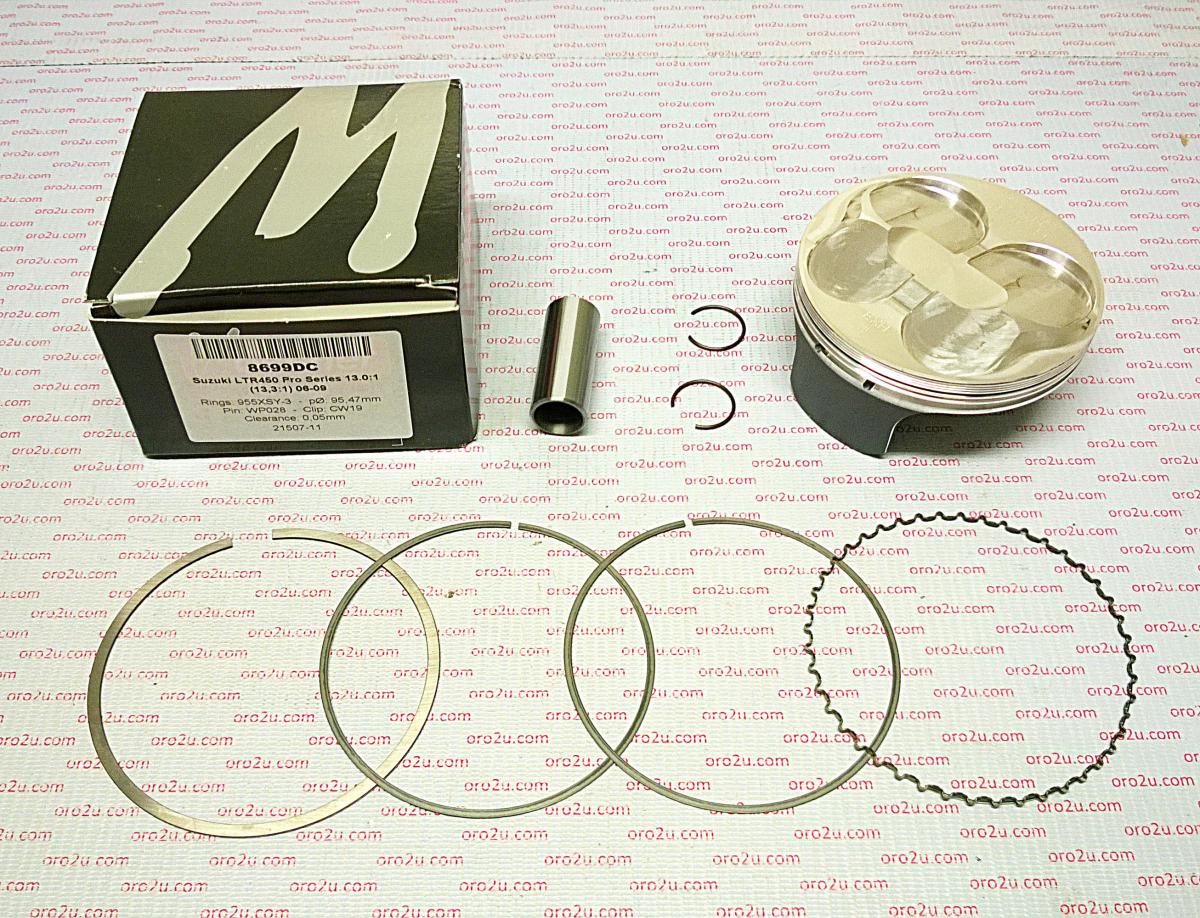

WOSSNER 95.5mm HC PISTON KIT C, SUZUKI LT-R450 06-09, 13.3:1 COMP

The Wossner 8699DC forged piston kit features a 95.52mm bore and is designed for high-compression performance in Suzuki LTR450 models from 2002 to 2011. Engineered in Germany, this piston provides superior heat transfer, strength, and reliability. Its elliptical shape ensures even load distribution under heat expansion, reducing localized stress and the risk of piston failure.

Features

• Forged high-compression piston for durability and enhanced engine performance
• Designed for optimal thermal conductivity and structural strength
• Elliptical profile distributes pressure uniformly under heat expansion
• Minimizes risk of localized pressure and piston collapse
• Manufactured in Germany

Specifications

• Bore: 95.52 mm
• Actual Bore Diameter: 95.46 mm
• Display: 450 cm³
• Hub Stroke: 62.80 mm
• Clearance: 0.05 mm
• Compression Height: 24.50 mm
• Dome Volume: +2.30 cm³
• Wossner Compression Ratio: 13.30:1
• OEM Compression Ratio: 11.70:1

Cross-Reference OEM Part Numbers

• Piston: 8699DC
• Lock: CW19
• Pin: WP037
• Ring Set: 955XSY
• Rod: P4011
• Part No.: 56-W4912.WO.C

Vehicle Fitments

• Suzuki LTR450 2002–2011
