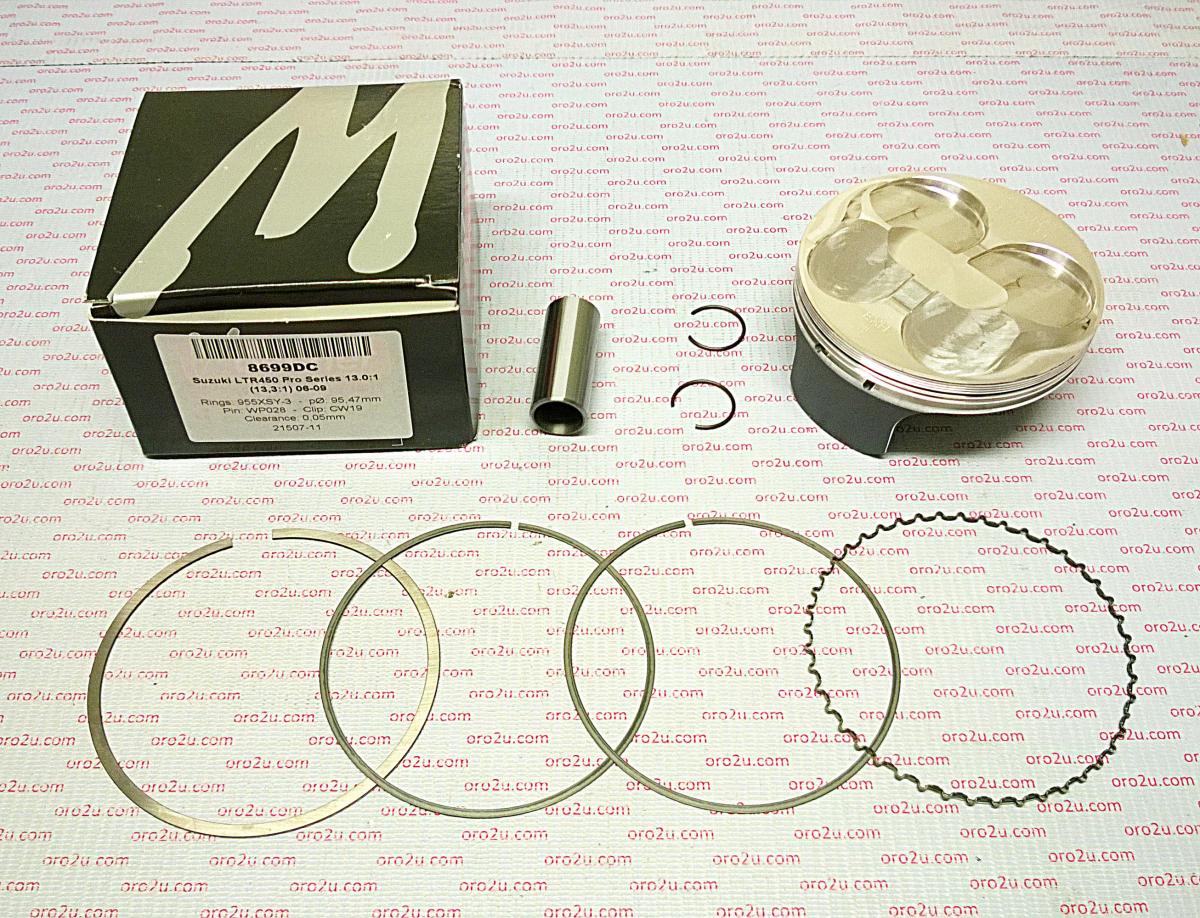

WOSSNER 95.5mm HC PISTON KIT B, SUZUKI LT-R450 06-09, 13.3:1 COMP

The Wossner 8699DB forged piston kit is a high-compression piston with a 95.51mm bore, specifically designed for Suzuki LTR450 models from 2002 to 2011. This German-engineered piston improves heat management and durability through its forged construction and elliptical design, which distributes pressure evenly and prevents piston collapse during high-temperature operation.

Features

• High-compression forged piston for increased strength and performance
• Designed for optimal heat transfer from combustion chamber to cylinder walls
• Elliptical design ensures uniform load distribution under heat expansion
• Reduces risk of localized pressure and piston collapse
• Manufactured in Germany

Specifications

• Bore: 95.51 mm
• Actual Bore Diameter: 95.46 mm
• Display: 450 cm³
• Hub Stroke: 62.80 mm
• Clearance: 0.05 mm
• Compression Height: 24.50 mm
• Dome Volume: +2.30 cm³
• Wossner Compression Ratio: 13.30:1
• OEM Compression Ratio: 11.70:1

Cross-Reference OEM Part Numbers

• Piston: 8699DB
• Lock: CW19
• Pin: WP037
• Ring Set: 955XSY
• Rod: P4011
• Part No.: 56-W4912.WO.B

Vehicle Fitments

• Suzuki LTR450 2002–2011
