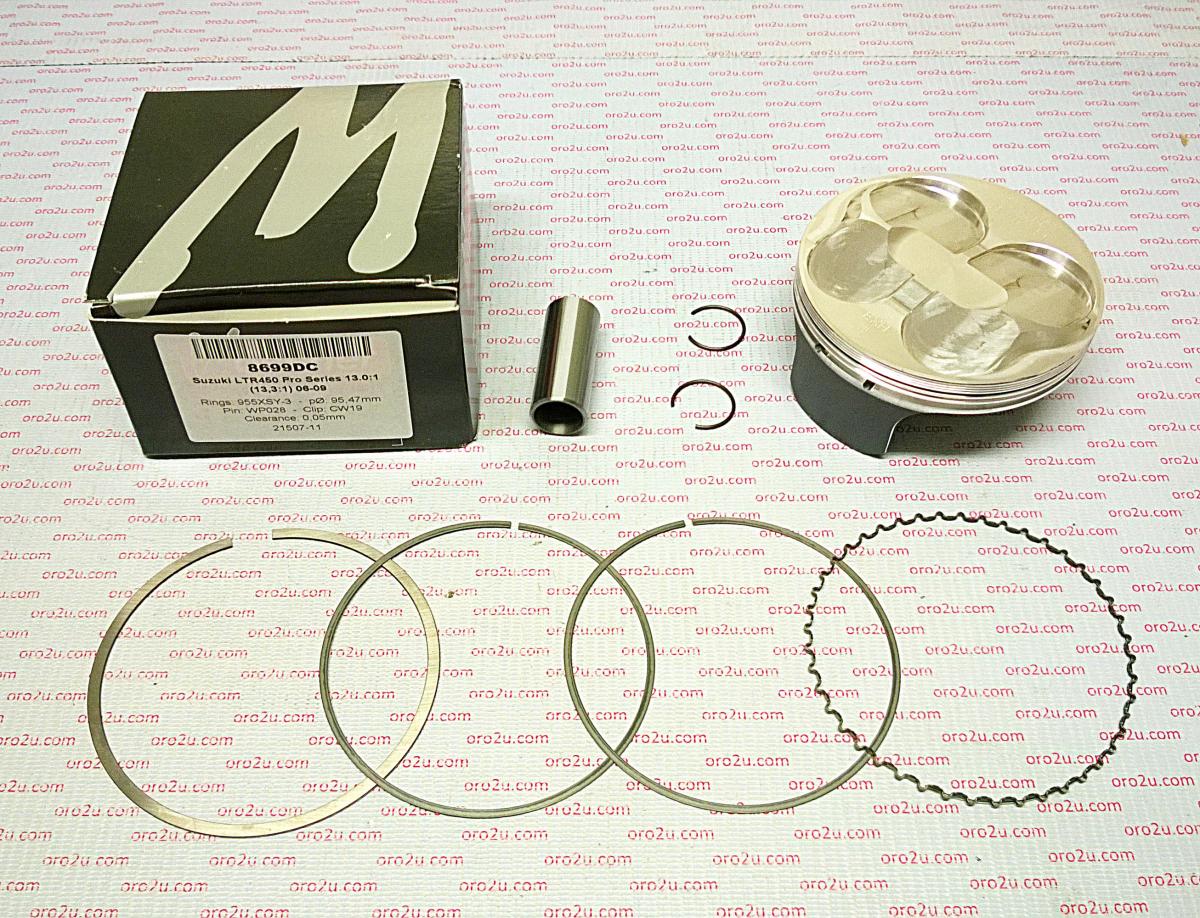

WOSSNER 95.5mm HC PISTON KIT A, SUZUKI LT-R450 06-09, 13.3:1 COMP

The Wossner 8699DA forged piston kit is a high-compression piston with a 95.50mm bore, designed specifically for Suzuki LTR450 models from 2002 to 2011. Manufactured in Germany, it features optimized heat transfer properties and an elliptical profile to ensure uniform pressure distribution, reducing localized stress and the risk of piston collapse.

Features

• Forged high-compression piston for enhanced strength and performance
• Engineered for effective heat transfer from combustion chamber to cylinder walls
• Elliptical design provides consistent bearing surface under thermal expansion
• Minimizes localized pressure and risk of piston collapse
• Manufactured in Germany

Specifications

• Bore: 95.50 mm
• Actual Bore Diameter: 95.45 mm
• Display: 450 cm³
• Hub Stroke: 62.80 mm
• Clearance: 0.05 mm
• Compression Height: 24.50 mm
• Dome Volume: +2.30 cm³
• Wossner Compression Ratio: 13.30:1
• OEM Compression Ratio: 11.70:1

Cross-Reference OEM Part Numbers

• Piston: 8699DA
• Lock: CW19
• Pin: WP037
• Ring Set: 955XSY
• Rod: P4011
• Part No.: 56-W4912.WO.A

Vehicle Fitments

• Suzuki LTR450 2002–2011

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
