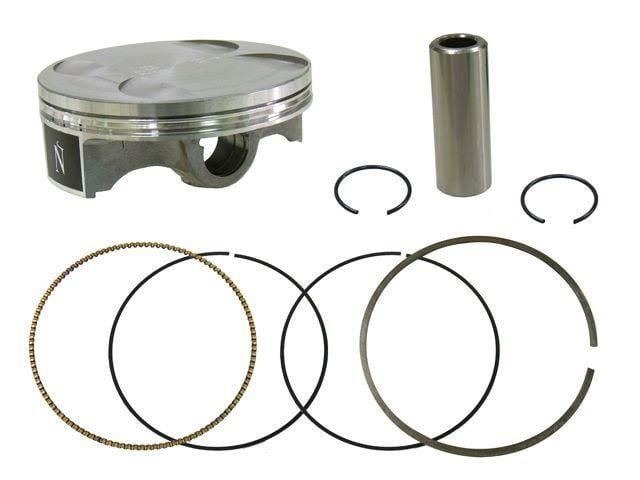

WOSSNER 96mm FORGED PISTON KIT C, HONDA CRF450R 2002-2003

Wossner 96.02mm forged piston kit is designed for strength and durability. Engineered for optimal heat transfer, it ensures efficient cooling of the combustion chamber. The elliptical design provides a uniform bearing surface, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany for precision and reliability.

Features

• Forged construction for enhanced strength and longevity
• Optimized heat transfer for improved engine performance
• Elliptical design prevents piston collapse and ensures even load distribution
• Manufactured in Germany for high-quality standards

Specifications

• Bore Size: 96.02mm
• Actual Bore Diameter: 95.98mm
• Displacement: 449 cm³
• Stroke: 62.10mm
• Clearance: 0.04mm
• Wossner Compression Ratio: 12.00:1
• OEM Compression Ratio: 11.50:1
• Dome Volume: -2.20 cm³
• Compression Height: 24.00mm
• Gasket Part Number: D4006
• Lock Part Number: CW19
• Pin Part Number: WP037
• Ring Set Part Number: 960ADS
• Rod Part Number: P4026

Cross-Reference OEM Part Numbers

• Part No: 56-W4820.C
• Wossner Part No: 8546DC

Vehicle Fitments

• Honda CRF450R (2002 - 2003)
