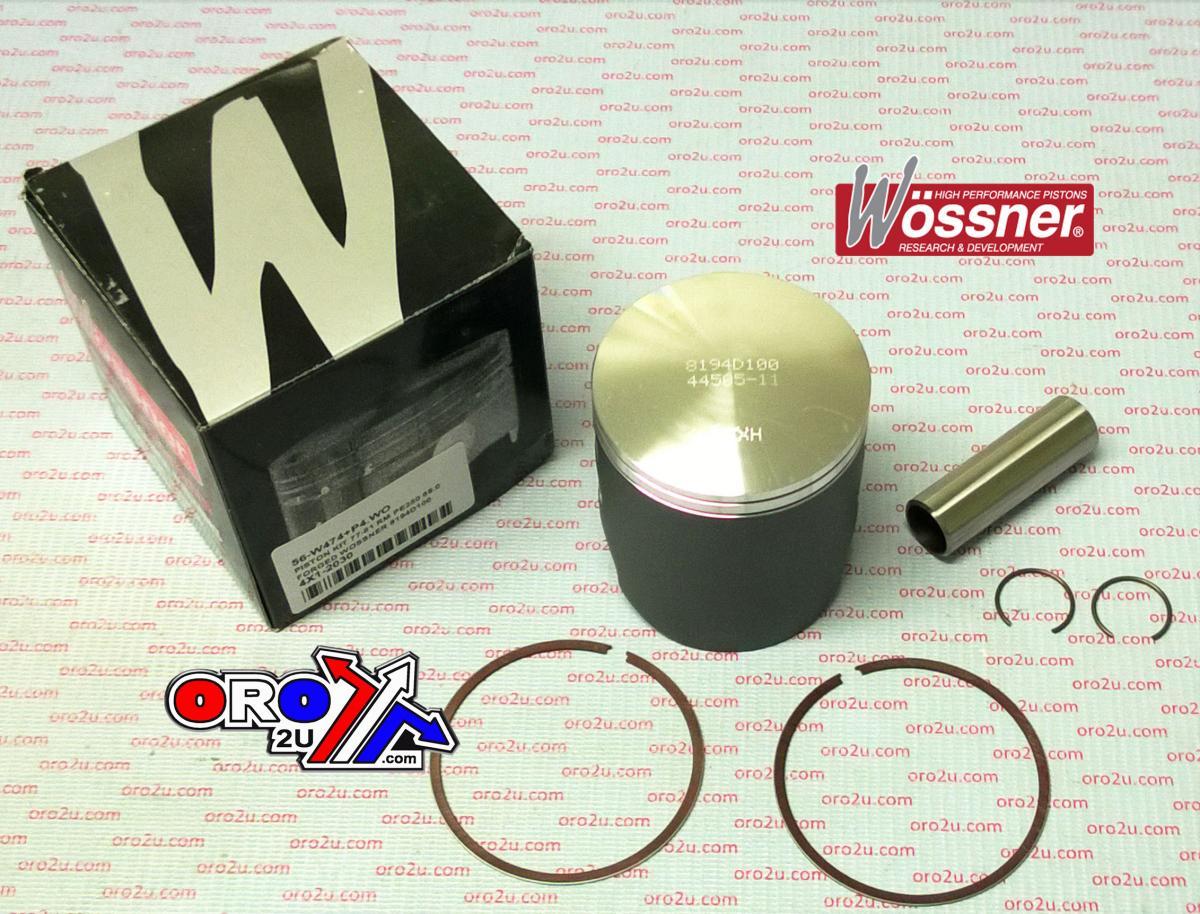

PISTON KIT 77-81 RM PE250 67.5 FORGED WOSSNER 8194D050

Wossner 67.50mm Bore Piston Kit (PN# 8194D050) is designed for Suzuki RM250 and PE250 models from 1977 to 1981. This forged piston provides high strength, efficient heat transfer, and durability. Its elliptical design ensures a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany, this piston meets OEM compression standards.

Features

• High-strength forged piston for durability and performance
• Optimized heat transfer for efficient combustion
• Elliptical design prevents piston collapse and ensures even load distribution
• Manufactured in Germany

Specifications

• Bore: 67.50mm
• Actual diameter: 67.44mm
• Display (cm³): 398
• Stroke (mm): 55.50
• Clearance (mm): 0.05
• Compression Ratio: OEM
• OEM Compression Ratio: 11.10:1
• Dome Volume (cm³): -0.20
• Compression Height (mm): 22.80

Cross-Reference OEM Part Numbers

• Lock: CW18
• Pin: WP033
• Ring Set: RSB6750 X 2

Vehicle Fitments

• Suzuki RM250 (1977-1981)
• Suzuki PE250 (1977-1981)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
