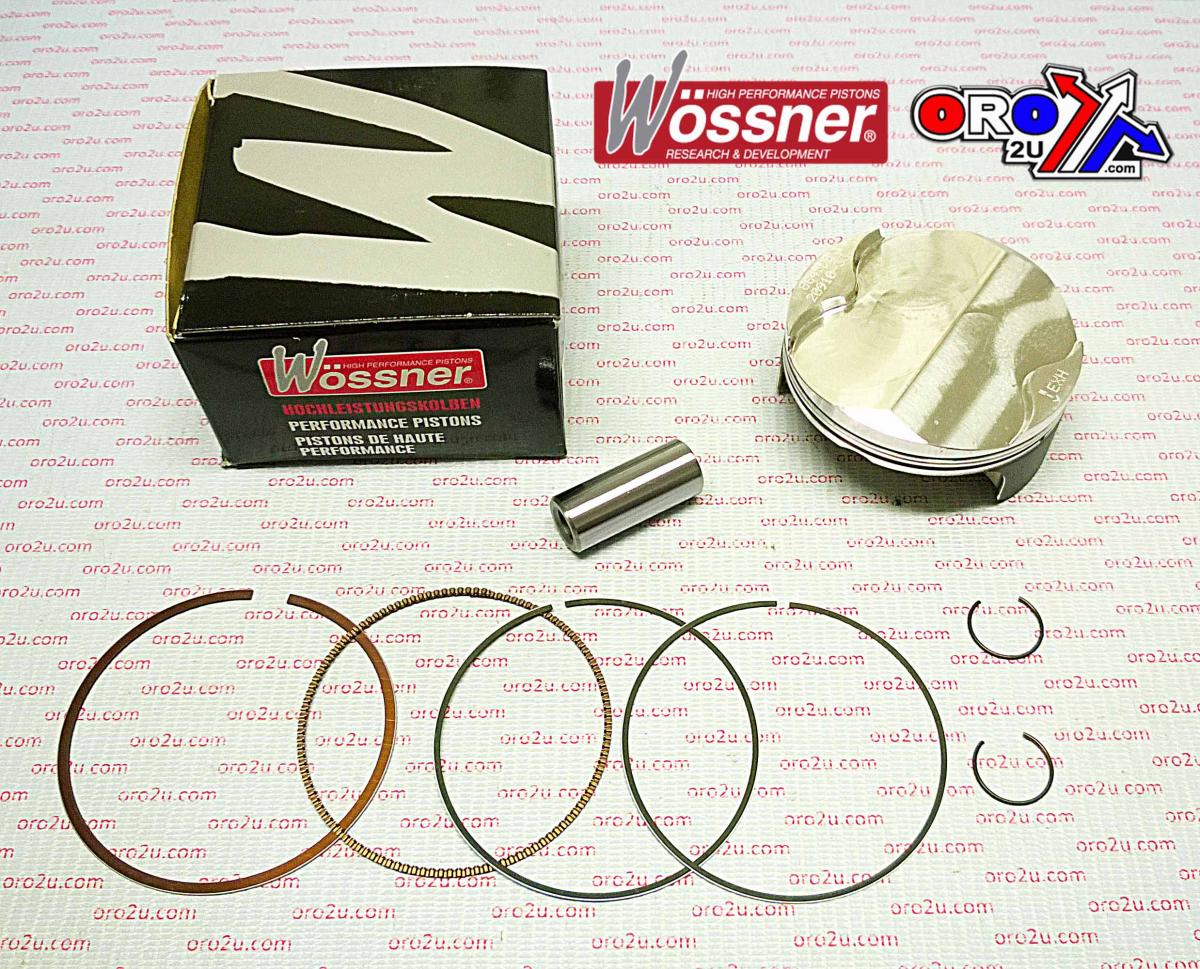

PISTON KIT 06-12 SX-F 250 KTM FORGED WOSSNER 8645DC

Piston Kit 76.02mm Bore 75.98 WOSSNER 8645DC (+0.02)

KTM
EXC250 Racing 2006-2013,
SX-F250 2006-2012,
Husaberg
FE250 2013,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W4730+00C.WO
Lock P/N CW16
Pin P/N WP070
Ring Set P/N 760XAS

Display (cm3) 527
Hub stroke (mm) 54.80
Clearance (mm) 0.04
Wossner compression Ratio: 12.90:1
OEM Compression ratio: 12.80:1
Dome volume (cm3) 1.20
Compression height (mm) 19.50
Theorectical weight (G)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
