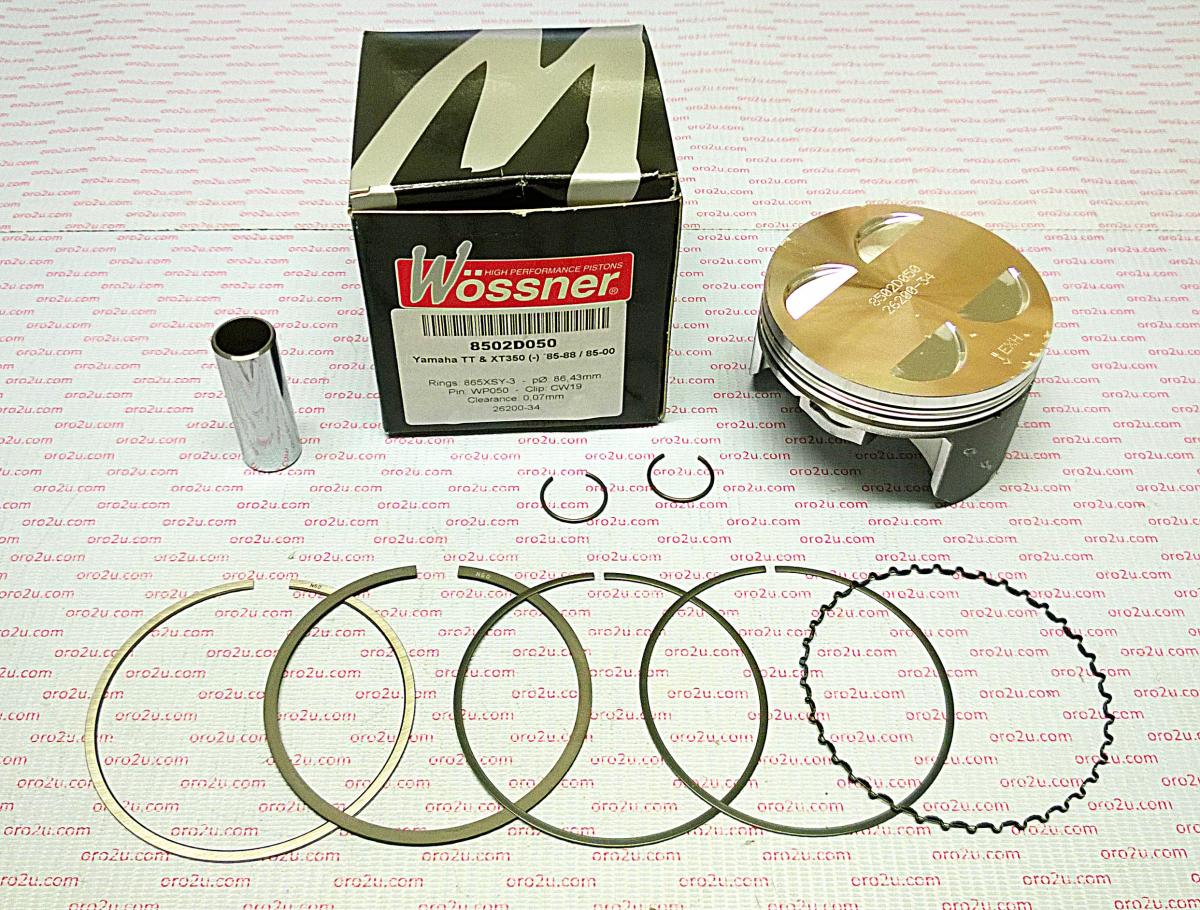

PISTON KIT XT350 TT350 86.00 FORGED WOSSNER 8502DA

The Wossner 86mm Bore Piston Kit (Part No. 8502DA) is a high-performance forged piston designed for Yamaha TT350 and XT350 models. Engineered for strength and durability, it optimizes heat transfer within the combustion chamber and features an elliptical design to ensure even load distribution, reducing localized pressure and preventing piston collapse. Manufactured in Germany, this piston maintains the OEM compression ratio for reliable engine performance.

Features

• High-strength forged piston construction
• Optimized heat transfer for improved combustion efficiency
• Elliptical design for even thrust load distribution
• Manufactured in Germany

Specifications

• Bore Size: 86mm
• Actual Bore Diameter: 85.93mm
• Compression Ratio: OEM
• OEM Compression Ratio: 9.00:1
• Displacement: 346cc
• Stroke: 59.60mm
• Clearance: 0.07mm
• Dome Volume: -2.80cm³
• Compression Height: 22.20mm

Cross-Reference OEM Part Numbers

• Lock P/N: CW19
• Pin P/N: WP050
• Ring Set P/N: 860XSY

Vehicle Fitments

• Yamaha TT350 (1985-1988)
• Yamaha XT350 (1985-2000)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
