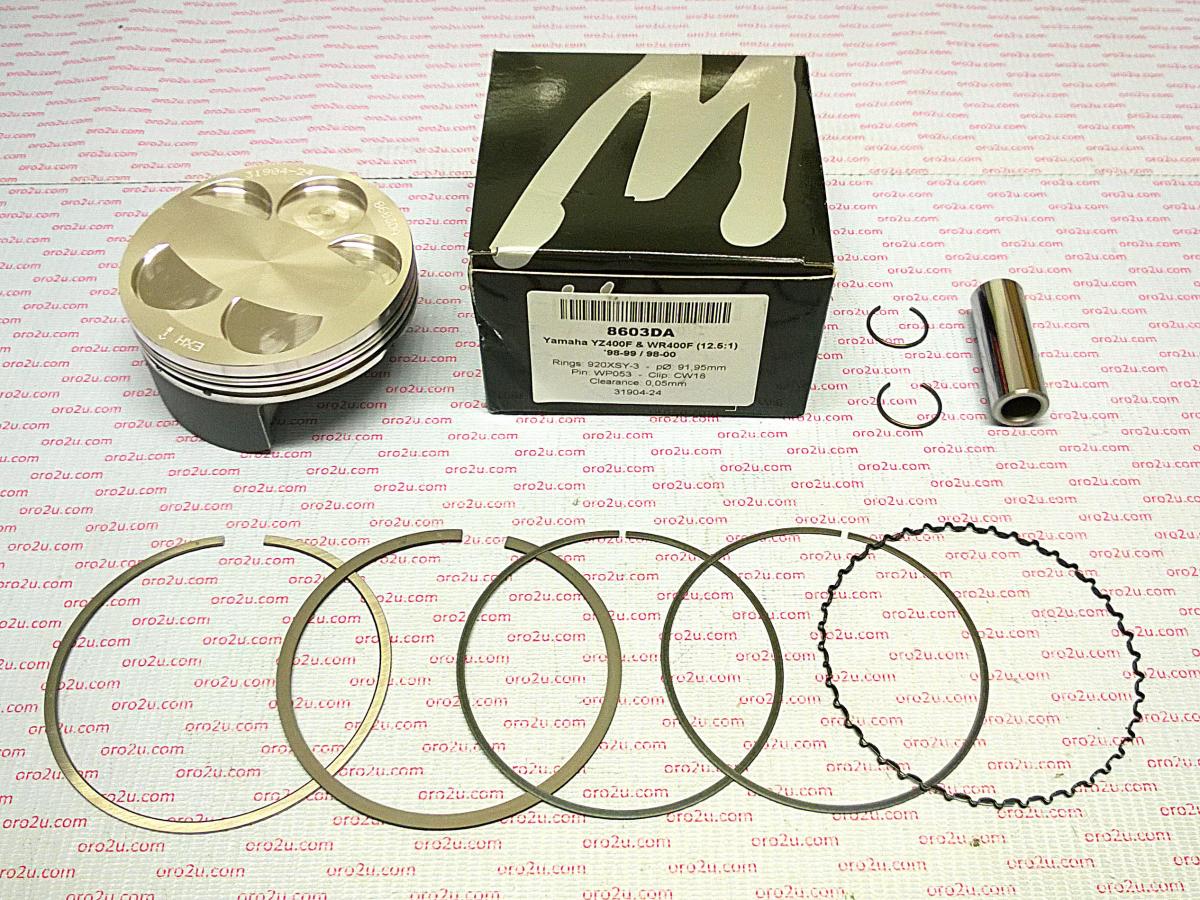

PISTON KIT 98-99 YZF400 93.00 FORGED WOSSNER 8603D100

The Wossner 93mm Bore Piston Kit (Part No. 8603D100) is a high-performance forged piston designed for Yamaha YZ400F and WR400F models. Built for superior strength and durability, it optimizes heat transfer within the combustion chamber and features an elliptical design for even load distribution, reducing localized pressure and preventing piston collapse. Manufactured in Germany, this piston maintains the OEM compression ratio for reliable engine performance.

Features

• High-strength forged piston construction
• Optimized heat transfer for improved combustion efficiency
• Elliptical design for even thrust load distribution
• Manufactured in Germany

Specifications

• Bore Size: 93mm
• Actual Bore Diameter: 92.95mm
• Compression Ratio: OEM
• OEM Compression Ratio: 11.0:1
• Displacement: 290cc
• Stroke: 61.20mm
• Clearance: 0.06mm
• Dome Volume: -4.80cm³
• Compression Height: 23.00mm

Cross-Reference OEM Part Numbers

• Lock P/N: CW18
• Pin P/N: WP053
• Ring Set P/N: 930XSY

Vehicle Fitments

• Yamaha YZ400F (1998-1999)
• Yamaha WR400F (1998-1999)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
