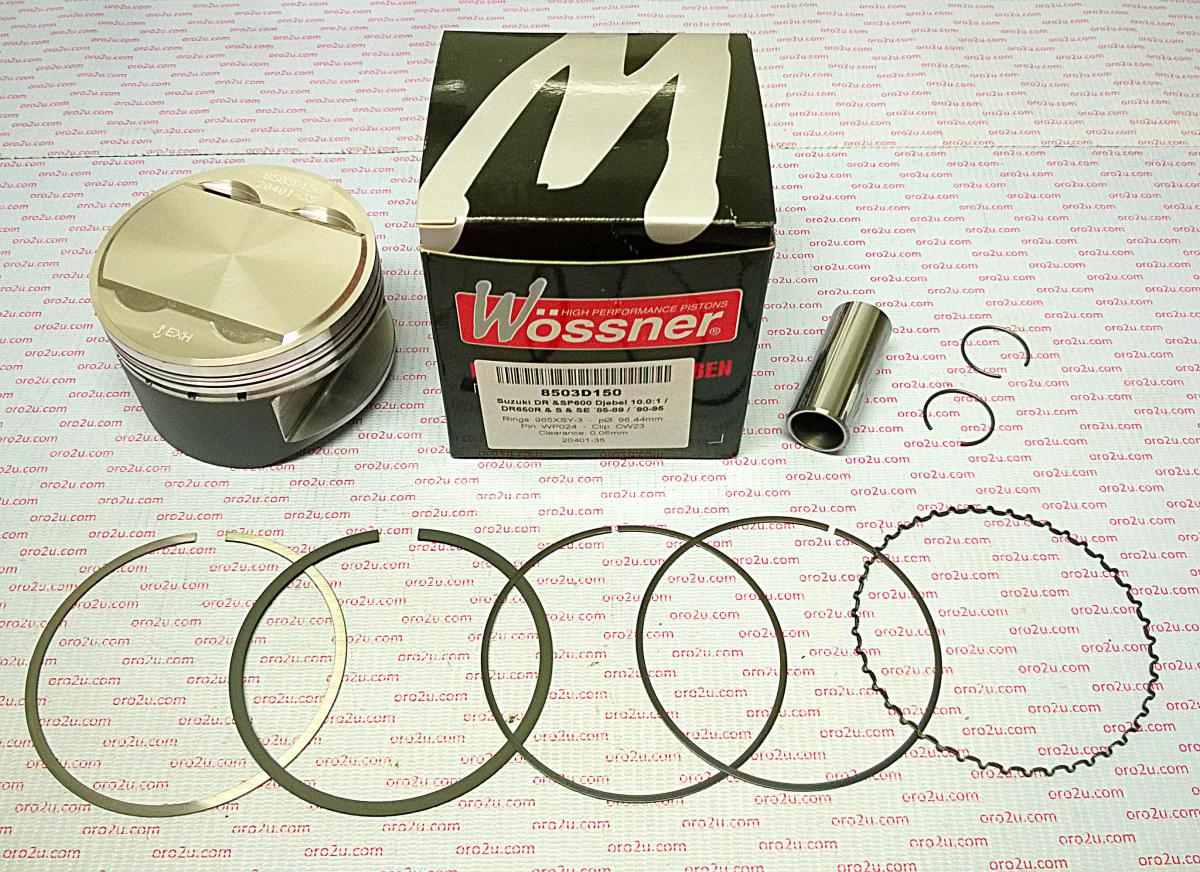

WOSSNER 97mm FORGEDPISTON KIT SUZUKI DR600 85-89, DR650R/S 90-95, SP600 85-89

Wössner forged piston kit with a 97mm bore, designed for Suzuki DR600, SP600 Djebel, and DR650 models. Manufactured in Germany, this high-performance piston enhances strength, heat transfer, and durability. The elliptical design ensures uniform bearing surface distribution, reducing localized pressure and preventing piston collapse.

Features

• Forged construction for superior strength and durability
• Optimized heat transfer to cylinder walls
• Elliptical design for uniform bearing surface under heat expansion
• Increased compression ratio for improved engine performance
• Made in Germany

Specifications

• Bore: 97mm (96.94mm actual)
• Display: 589 cm³
• Stroke: 85.00mm
• Clearance: 0.06mm
• Wössner Compression Ratio: 10.00:1
• OEM Compression Ratio: 8.50:1
• Dome Volume: +6.10 cm³
• Compression Height: 29.90mm
• Theoretical Weight: [Not provided]

Cross-Reference OEM Part Numbers

• Wössner Piston: 8503D200
• Lock: CW23
• Pin: WP024
• Ring Set: 970XSY

Vehicle Fitments

• Suzuki DR600 (1985-1989)
• Suzuki SP600 Djebel (1985-1989)
• Suzuki DR650R (1990-1995)
• Suzuki DR650S (1990-1995)
• Suzuki DR650SE (1990-1995)
