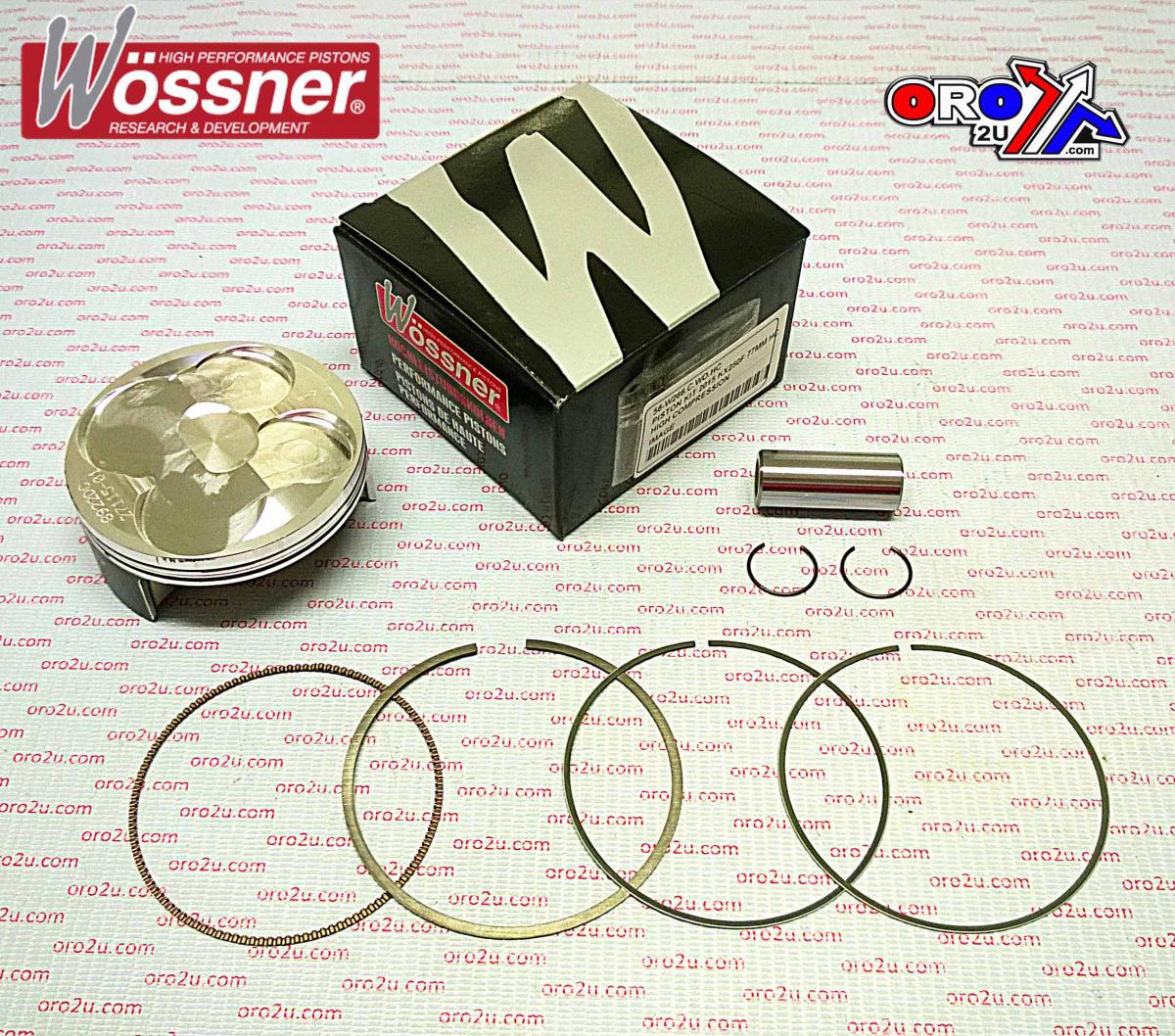

WOSSNER 77mm HC PISTON KIT C, KAWASAKI KX250F 2015-2016

Wossner high-compression forged piston kit designed for Kawasaki KX250F models from 2015 to 2016. Engineered for superior strength and heat transfer, this piston features an elliptical design to ensure even bearing surface distribution, reducing localized pressure and preventing collapse. Manufactured in Germany for high performance and durability.

Features

• High-compression forged piston for increased performance
• Elliptical design for even thrust load distribution
• Enhanced heat transfer to cylinder walls
• Manufactured in Germany for superior quality

Specifications

• Bore Size: 77.02mm
• Standard Bore: 76.97mm
• Stroke: 53.60mm
• Clearance: 0.05mm
• Wossner Compression Ratio: 14.50:1
• OEM Compression Ratio: 13.80:1
• Dome Volume: -1.78 cm³
• Compression Height: 19.80mm
• Theoretical Weight: 136g

Cross-Reference OEM Part Numbers

• Piston Part Number: 8922DC
• Lock Part Number: CW16
• Pin Part Number: WP087
• Ring Set Part Number: 770XAS-2

Vehicle Fitments

• Kawasaki KX250F 2015-2016

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
