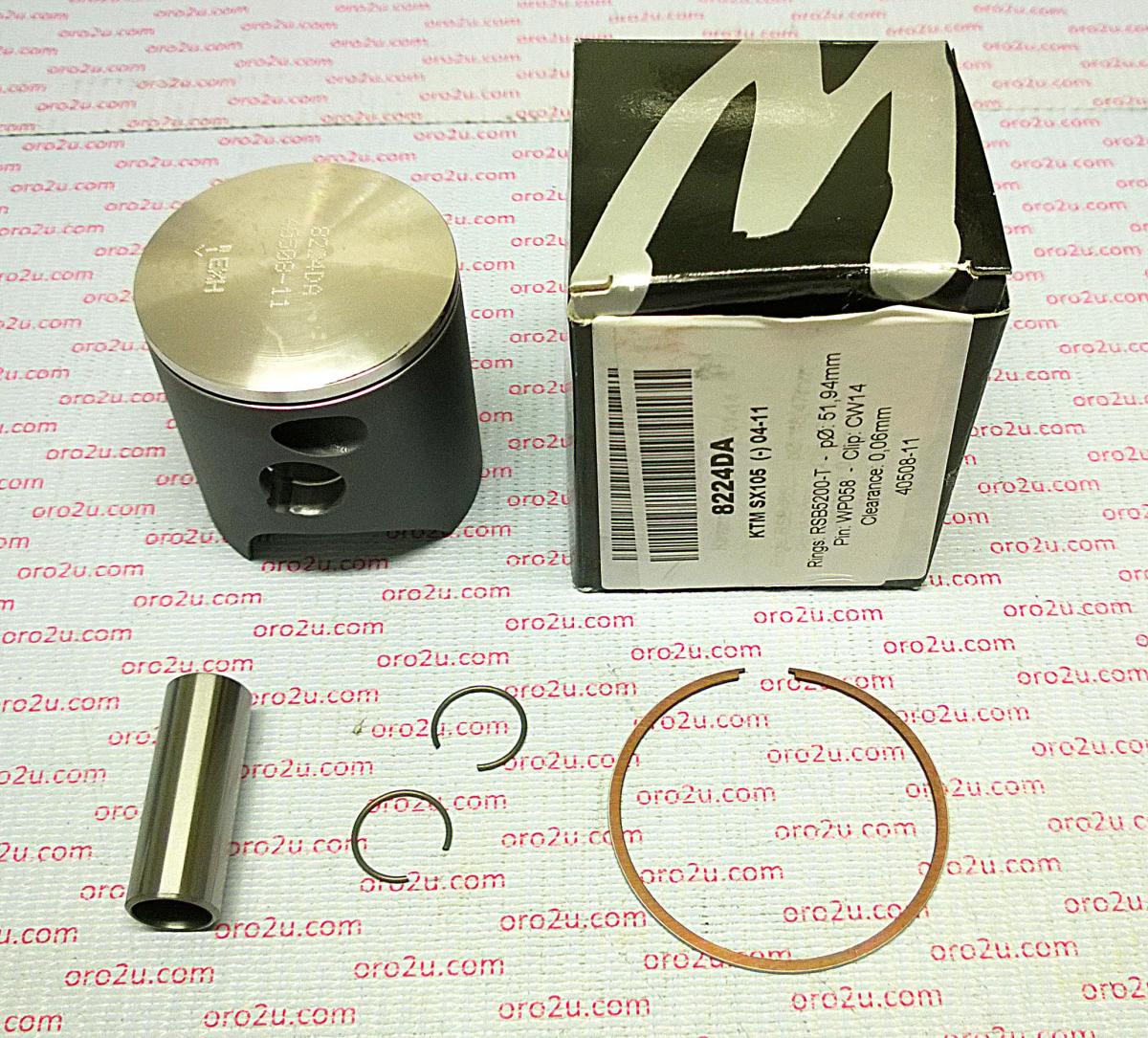

WOSSNER 52mm FORGED PISTON KIT HC, KTM 105 SX 2004-2012, 105 XC 2008-2009

Wossner forged piston kit with a 52.02mm bore (51.96mm) for KTM SX105 (2004-2011). Designed for superior strength and heat transfer efficiency, this piston ensures optimal combustion performance. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany.

Features

• Forged piston for increased strength and durability
• Single-ring design for reduced friction and improved performance
• Optimized heat transfer for enhanced efficiency
• Elliptical design ensures uniform bearing surface under heat expansion
• Even thrust load distribution to prevent piston collapse
• Manufactured in Germany

Specifications

• Bore Size: 52.02mm (51.96mm)
• Part Number: 8224DC
• Lock Part Number: CW14
• Pin Part Number: WP058
• Ring Set Part Number: RSB5200
• Rod Part Number: P2006
• Displacement: 104 cm³
• Stroke: 49.00mm
• Clearance: 0.06mm
• Compression Ratio: 2-stroke
• Compression Height: 24.00mm

Vehicle Fitments

• KTM SX105 (2004-2011)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
